ST162L-BLPVKK (1986)

Toyota Celica

Production Aug 1986 - Aug 1987
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3SFE

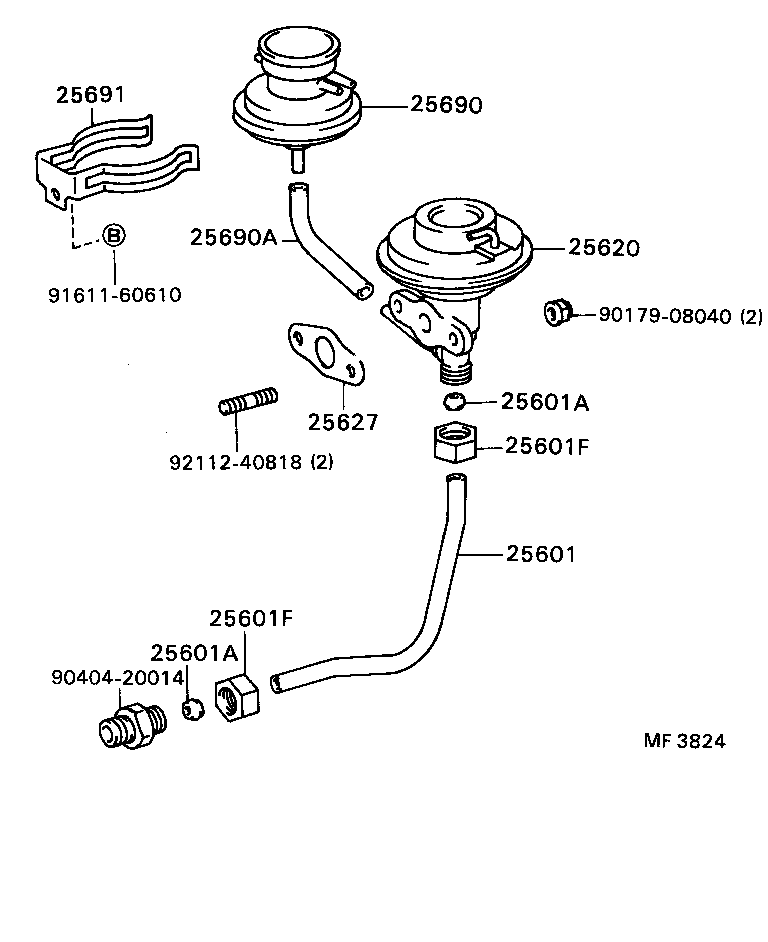

Click highlighted areas on diagram

diagram 25601 25601A 25601A 25601F 25601F 25620 25627 25690 25690A 25691 9017908040 9040420014 9161160610 9211240818
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-74030

3SFE..ST162

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-12042

2SELC,3S#..ST16#

 2
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-12042

2SELC,3S#..ST16#

 2
25601F - UNION(FOR EGR PIPE, NO.1)
90402-20073

3SFE..ST162

 2
25601F - UNION(FOR EGR PIPE, NO.1)
90402-20073

3SFE..ST162

 2
25620 - VALVE ASSY, EGR
25620-74120

3SFE..ST162..4FC

 1
25627 - GASKET, EGR VALVE
25627-74010

2SELC,3SFE..ST16#

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-74100

3SFE..ST162..4FC

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11065

2SELC,3SFE..ST16#

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-74040

3SFE..ST162

 1
Common parts
90179-08040
90404-20014
91611-60610
92112-40818
