ST162L-BLPVKK (1986)
Toyota Celica
Production
Aug 1986
-
Aug 1987
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )3SFE

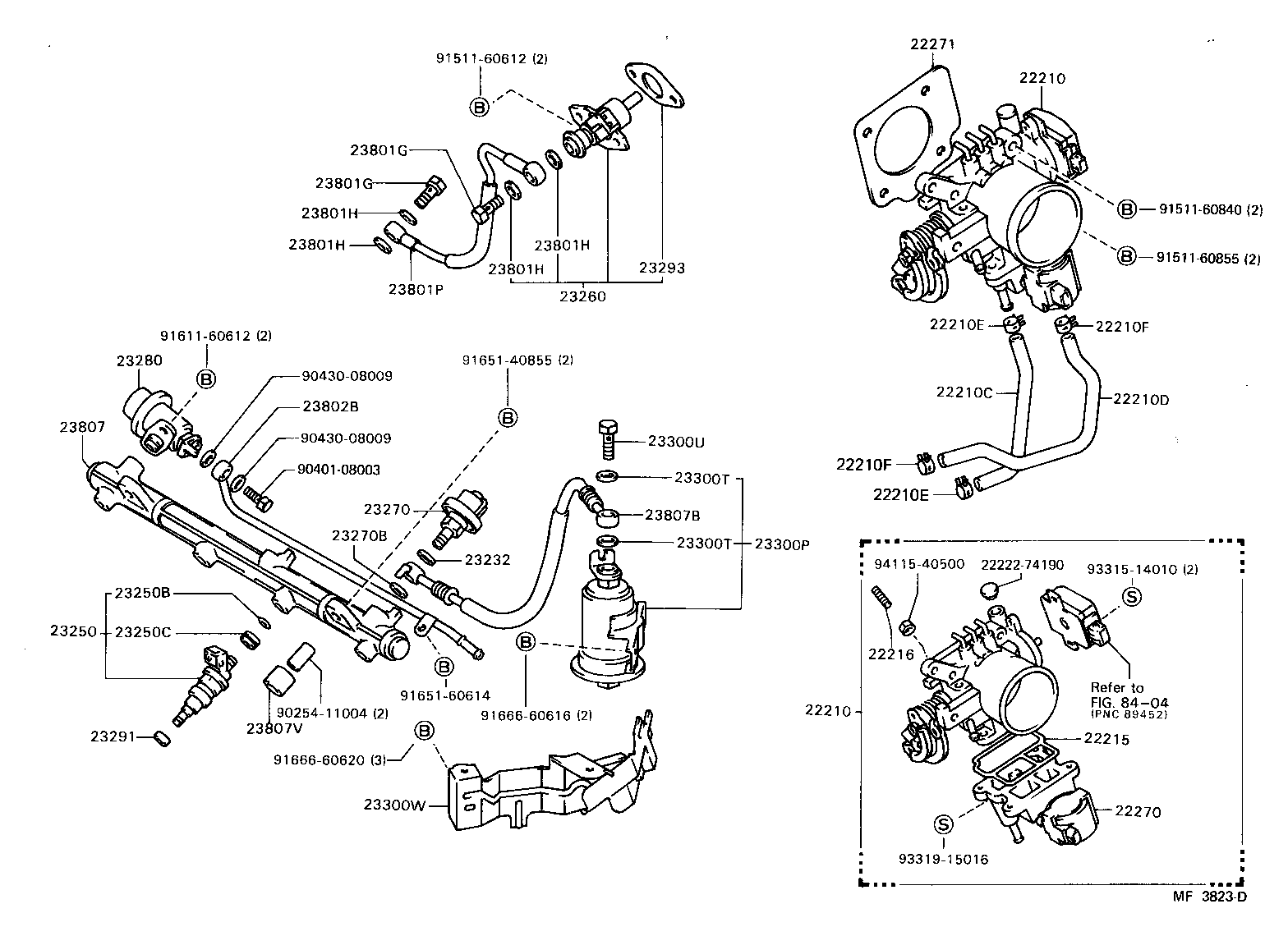

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-74220 |
3SFE..ST162 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-74220 |
3SFE..ST162 |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 99556-10280 |
3SFE..ST162 *H,L=280 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 99556-10230 |
3SFE..ST162 *H,L=230 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
2SELC,3S#..ST16# |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
2SELC,3S#..ST16# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
2SELC,3S#..ST16# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
2SELC,3S#..ST16# |
2 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74210 |
3SFE..ST162 |
1 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
2SELC,3SFE..ST16# |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-74010 |
3SFE..ST162 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-74020 |
3SFE..ST162 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-28010 |
3S#..ST162 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74030 |
3SFE..ST162 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
2SELC,3S#..ST16# |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
2SELC,3S#..ST16# |
4 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79105 |
3SFE..ST162 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-74010 |
3S#..ST162 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12005 |
3S#..ST162 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74030 |
3SFE..ST162 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
3S#..ST162 |
4 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-74010 |
2SELC,3S#..ST16# |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79105 |
2SELC,3S#..ST16# |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
2SELC,3S#..ST16# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
2SELC,3S#..ST16# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
2SELC,3S#..ST16# |
1 | ||
| 23300W - BRACKET, FUEL FILTER | ||||
| 23264-74020 |
2SELC,3S#..ST16# |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08003 |
3S#..ST162 |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08003 |
3S#..ST162 |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-74021 |
3SFE..ST162 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-74020 |
3SFE..ST162 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-74030 |
3SFE..ST162 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 23271-74110 |
3SFE..ST162 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90560-11020 |
3SFE..ST162 |
2 | ||
| Common parts | ||||
| 22222-74190 | ||||
| 90254-11004 | ||||
| 90401-08003 | ||||
| 90430-08009 | ||||
| 91511-60612 | ||||
| 91511-60840 | ||||
| 91511-60855 | ||||
| 91611-60612 | ||||
| 91651-40855 | ||||
| 91651-60614 | ||||
| 91666-60616 | ||||
| 91666-60620 | ||||
| 93315-14010 | ||||
| 93319-15016 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8404 | ||||
