ST162L-BLPVKK (1986)

Toyota Celica

Production Aug 1986 - Aug 1987
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3SFE

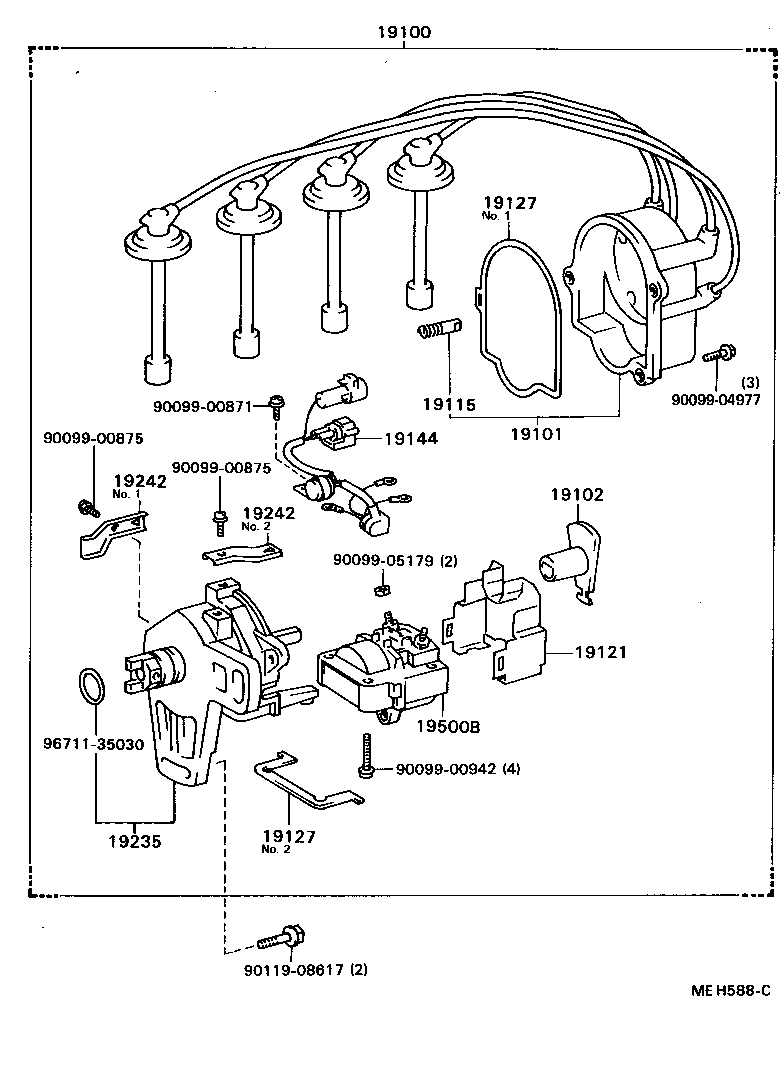

Click highlighted areas on diagram

diagram 19100 19101 19102 19115 19121 19127 19127 19144 19235 19242 19242 19500B 9009900871 9009900875 9009900875 9009900942 9009904977 9009905179 9011908617 9671135030
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19040-74030

3SFE..ST162

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-74030

3SFE..ST162

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031

3SFE..ST162

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

3SFE..ST162

 2
19121 - COVER, DUST PROOF
19121-63040

3SFE..ST162

 1
19127 - PACKING, DUST PROOF
19127-63010

3SFE..ST162

NO.1

 1
19127-63020

3SFE..ST162

NO.2

 1
19127 - PACKING, DUST PROOF
19127-63010

3SFE..ST162

NO.1

 1
19127-63020

3SFE..ST162

NO.2

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-74040

3SFE..ST162

 1
19235 - HOUSING, DISTRIBUTOR
19235-74020

3SFE..ST162

 1
19242 - CLAMP, CORD
19242-74030

3SFE..ST162

NO.2

 1
19242-74020

3SFE..ST162

NO.1

 1
19242 - CLAMP, CORD
19242-74030

3SFE..ST162

NO.2

 1
19242-74020

3SFE..ST162

NO.1

 1
19500B - COIL ASSY, IGNITION
90919-02135

2SELC,3SFE..ST16#

 1
Common parts
90099-00871
90099-00875
90099-00942
90099-04977
90099-05179
90119-08617
96711-35030
