ST162L-BLPVKK (1986)

Toyota Celica

Production Aug 1986 - Aug 1987
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3SFE

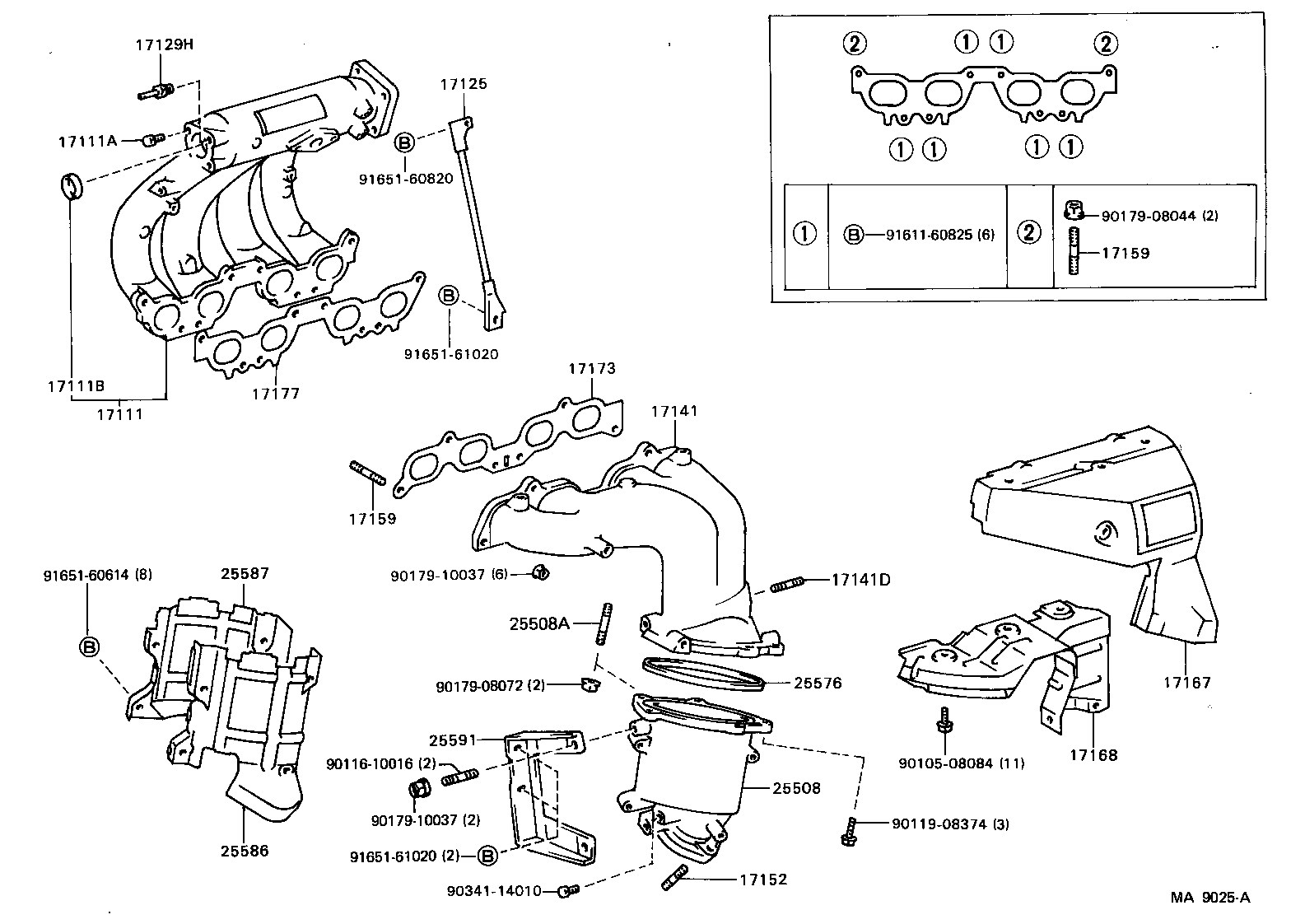

Click highlighted areas on diagram

diagram 17111 17111A 17111B 17125 17129H 17141 17141D 17152 17159 17159 17167 17168 17173 17177 25508 25508A 25576 25586 25587 25591 9010508084 9011610016 9011908374 9017908044 9017908072 9017910037 9017910037 9034114010 9161160825 9165160614 9165160820 9165161020 9165161020
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-74070

3SFE..ST162

 1
17111A - PLUG, NO.1
90345-51025

3SFE..ST162

 2
17111B - PLUG, NO.2
96411-44000

3SFE..ST162

 1
17125 - STAY, SURGE TANK, NO.1
17125-88361

3S#..ST162

 1
17129H - UNION, NO.4
90404-51026

3S#..ST162

 1
17141 - MANIFOLD, EXHAUST
17141-74040

3SFE..ST162

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08253

3S#..ST162

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2SELC,3S#..ST16#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3S#..ST162

EXHAUST MANIFOLD SIDE

 6
92122-60825

3SFE..ST162

INTAKE MANIFOLD SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3S#..ST162

EXHAUST MANIFOLD SIDE

 6
92122-60825

3SFE..ST162

INTAKE MANIFOLD SIDE

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74040

3SFE..ST162

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74020

3SFE..ST162

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-88360

3S#..ST162

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74020

3SFE..ST162

 1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-74020

3SFE..ST162

 1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-08253

3SFE..ST162

 2
25576 - GASKET, MANIFOLD CONVERTER
25576-74010

3SFE..ST162

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-74010

3SFE..ST162

 1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-74010

3SFE..ST162

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-74010

3SFE..ST162

 1
Common parts
90105-08084
90116-10016
90119-08374
90179-08044
90179-08072
90179-10037
90341-14010
91611-60825
91651-60614
91651-60820
91651-61020
