ST162L-BLPVKK (1986)

Toyota Celica

Production Aug 1986 - Aug 1987
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3SFE

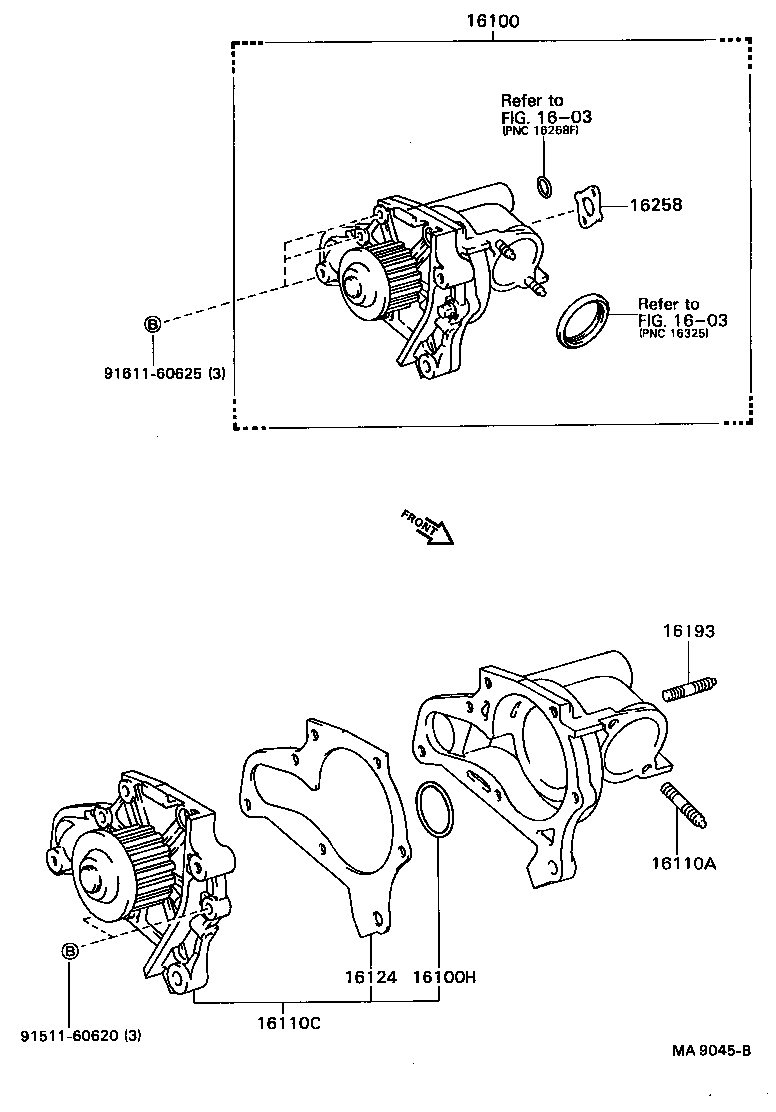

Click highlighted areas on diagram

diagram 1603 1603 16100 16100H 16110A 16110C 16124 16193 16258 9151160620 9161160625
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79075

3SFE..ST162

 1
16100H - RING, O(FOR WATER PUMP)
96711-24037

2SELC,3S#..ST16#

 1
16110A - BOLT, STUD(FOR WATER OUTLET SETTING)
16193-63010

2SELC,3S#..ST16#

 2
16110C - PUMP ASSY, WATER, W/O COVER
16110-79025

3SFE..ST162

 1
16124 - GASKET, WATER PUMP COVER
16124-74010

3S#..ST162

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
90029-01500

2SELC,3S#..ST16#

 2
16258 - GASKET(FOR HEATER RETURN)
16258-15011

2SELC,3S#..ST16#

 1
Common parts
91511-60620
91611-60625
Linked diagrams
1603
