ST162L-BLPVKA (1986)

Toyota Celica

Production Aug 1986 - Aug 1987
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3SFE

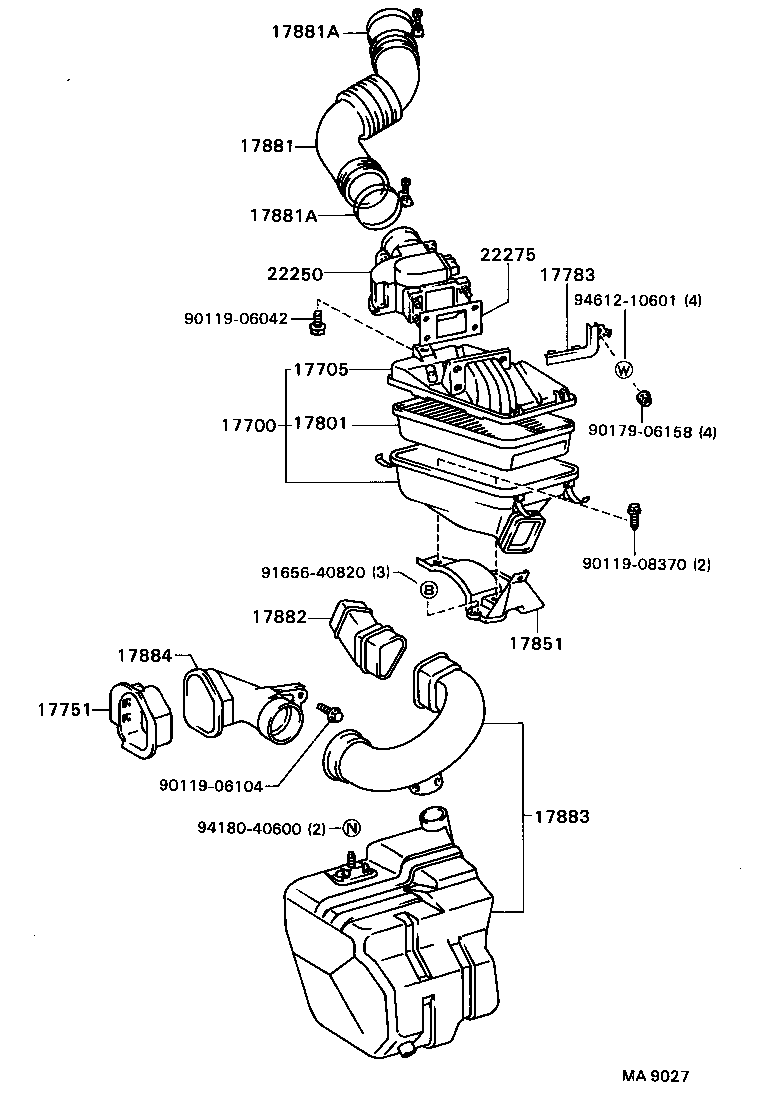

Click highlighted areas on diagram

diagram 17700 17705 17751 17783 17801 17851 17881 17881A 17881A 17882 17883 17884 22250 22275 9011906042 9011906104 9011908370 9017906158 9165640820 9418040600 9461210601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74130

3SFE..ST162

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74050

2SELC,3SFE..ST16#

 1
17751 - INLET, AIR CLEANER, NO.1
53981-20010

3SFE..ST162

 1
17783 - PLATE, AIR CLEANER BAFFLE
17783-74020

2SELC,3S#..ST16#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

3SFE..ST162

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-74010

2SELC,3S#..ST16#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74140

3SFE..ST162

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

2SELC,3SFE..ST16#

THROTTLE BODY SIDE

 1
96111-10800

2SELC,3SFE..ST16#

AIR FLOW METER SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

2SELC,3SFE..ST16#

THROTTLE BODY SIDE

 1
96111-10800

2SELC,3SFE..ST16#

AIR FLOW METER SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-74060

3SFE..ST162

 1
17883 - HOSE, AIR CLEANER, NO.3
17880-74040

3SFE..ST162

 1
17884 - HOSE, AIR CLEANER, NO.4
17884-74010

3SFE..ST162

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-74120

3SFE..ST162

 1
22275 - GASKET, AIR FLOW METER
22275-41010

2SELC,3SFE..ST16#

 1
Common parts
90119-06042
90119-06104
90119-08370
90179-06158
91656-40820
94180-40600
94612-10601
