ST162L-BLMVKK (1987)
Toyota Celica
ILLUST NO. 1 OF 2(8708-8809)5F ; (8809- )ST162..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-20350 |
ST162..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401034 |
ST162..(CP,LB)..5F..(GT,ST) DEEP BLUE,TRIM8# |
1 | ||
| 33504-2401055 |
ST162..(CP,LB)..5F..(GT,ST) DARK BEIGE,TRIM4# |
1 | ||
| 33504-2401042 |
ST162..(CP,LB)..5F..(GT,ST) RED,TRIM3# |
1 | ||
| 33504-2401011 |
ST162..5F..(GT,ST) NEW BLACK,TRIM2# |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-12050 |
ST162..5F |
1 | ||
| 33509-12050 |
ST16#..5F |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
ST16#..5F |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
ST16#..5F |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20062 |
ST16#..5F |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12029 |
ST16#..5F |
2 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12029 |
ST16#..5F |
2 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
ST16#..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
ST162..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
ST162..5F |
2 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-12040 |
ST16#..5F |
1 | ||
| 33556A - SPACER (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90561-35001 |
ST16#..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12020 |
ST16#..5F LWR |
1 | ||
| 33556-12030 |
ST16#..5F UPR |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12020 |
ST16#..5F LWR |
1 | ||
| 33556-12030 |
ST16#..5F UPR |
1 | ||
| 33556H - SHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90564-30003 |
ST16#..5F T=0.5,MARK C 0R 5 |
1 | ||
| 90564-30008 |
ST16#..5F T=1.0,MARK H 0R 10 |
1 | ||
| 90564-30006 |
ST16#..5F T=0.8,MARK F 0R 8 |
1 | ||
| 90564-30004 |
ST16#..5F T=0.6,MARK D 0R 6 |
1 | ||
| 90564-30005 |
ST16#..5F T=0.7,MARK E 0R 7 |
1 | ||
| 90564-30007 |
ST16#..5F T=0.9,MARK G 0R 9 |
1 | ||
| 90564-30010 |
ST16#..5F T=1.2,MARK L 0R 12 |
1 | ||
| 90564-30009 |
ST16#..5F T=1.1,MARK K 0R 11 |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33506-20200 |
ST16#..5F |
1 | ||
| 33506-20200 |
ST162..5F |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
ST162..5F |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-09003 |
ST162..5F |
4 | ||
| 33593F - HOLDER, SPRING (FOR FLOOR SHIFT) | ||||
| 33593-12020 |
ST16#..5F |
1 | ||
| 33618 - SUPPORT, SELECTING BELLCRANK, NO.1 | ||||
| 33618-12040 |
ST16#..5F |
1 | ||
| 33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT) | ||||
| 90119-06268 |
ST16#..5F *6-1.00PX24-20 |
1 | ||
| 90105-08078 |
ST16#..5F *8-1.25PX28-13 |
1 | ||
| 33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT) | ||||
| 90119-06268 |
ST16#..5F *6-1.00PX24-20 |
1 | ||
| 90105-08078 |
ST16#..5F *8-1.25PX28-13 |
1 | ||
| 33695B - COVER, SELECTING SPRING (FOR FLOOR SHIFT) | ||||
| 33695-10010 |
ST16#..5F |
1 | ||
| Common parts | ||||
| 90119-06047 | ||||
| 90179-08054 | ||||
| 91111-50608 | ||||
| 91665-40830 | ||||
| 93249-54008 | ||||
| 93560-54008 | ||||
| 94511-00400 | ||||
| 94511-00600 | ||||
| 94612-10601 | ||||

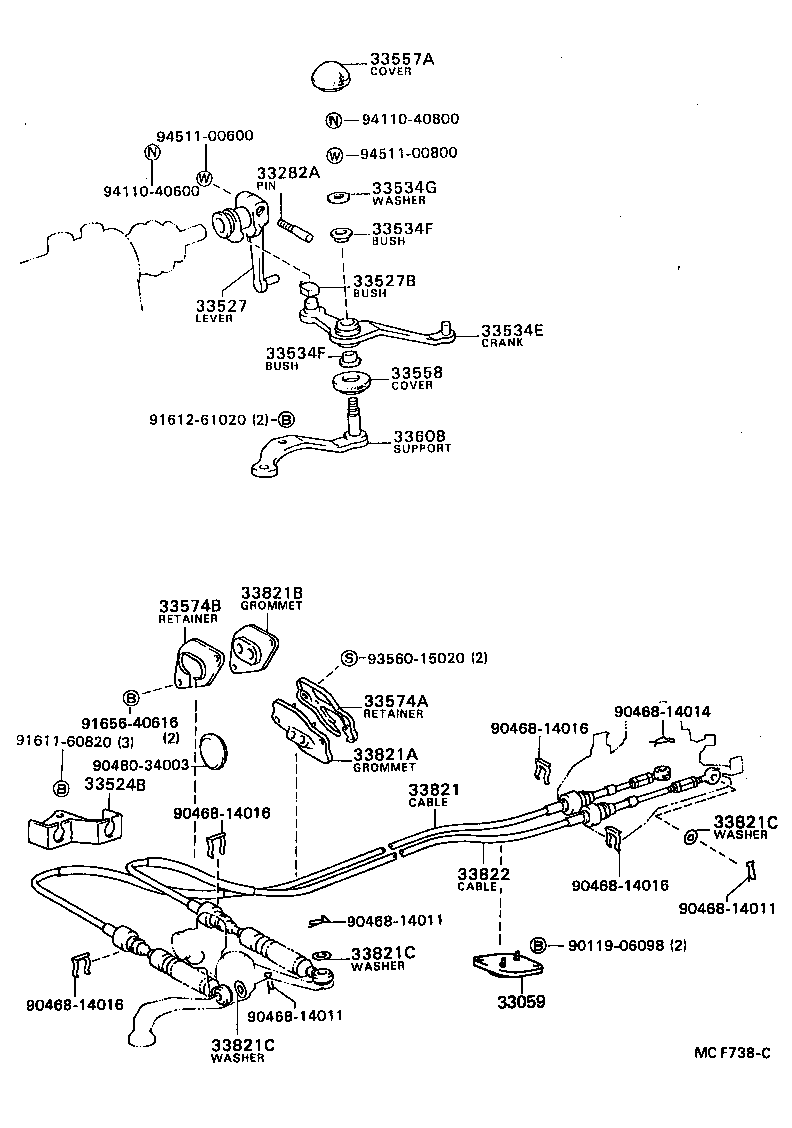

ILLUST NO. 2 OF 2(8708- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33282A - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER) | ||||
| 33282-35010 |
ST162..5F |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33527-32010 |
ST162..5F |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 90389-10009 |
ST16#..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-32030 |
ST162..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
ST16#..5F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
ST16#..5F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
ST16#..5F |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
ST16#..5F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-32010 |
ST162..5F |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-20150 |
ST162..5F TSK |
1 | ||
| 33574-20140 |
ST162..5F CHKK |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-20070 |
ST162..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-32020 |
ST162..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-20240 |
ST162..5F |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01330 |
ST162..5F CHKK |
1 | ||
| 90480-01332 |
ST162..5F TSK |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01200 |
ST162..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
ST16#..5F SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
ST16#..5F OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
ST16#..5F SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
ST16#..5F OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
ST16#..5F SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
ST16#..5F OD=28,TRANSAXLE SIDE |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-20080 |
ST162..5F |
1 | ||
| Common parts | ||||
| 90119-06098 | ||||
| 90468-14011 | ||||
| 90468-14014 | ||||
| 90468-14016 | ||||
| 90480-34003 | ||||
| 91611-60820 | ||||
| 91612-61020 | ||||
| 91656-40616 | ||||
| 93560-15020 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
