ST162L-BCPVKK (1987)
Toyota Celica

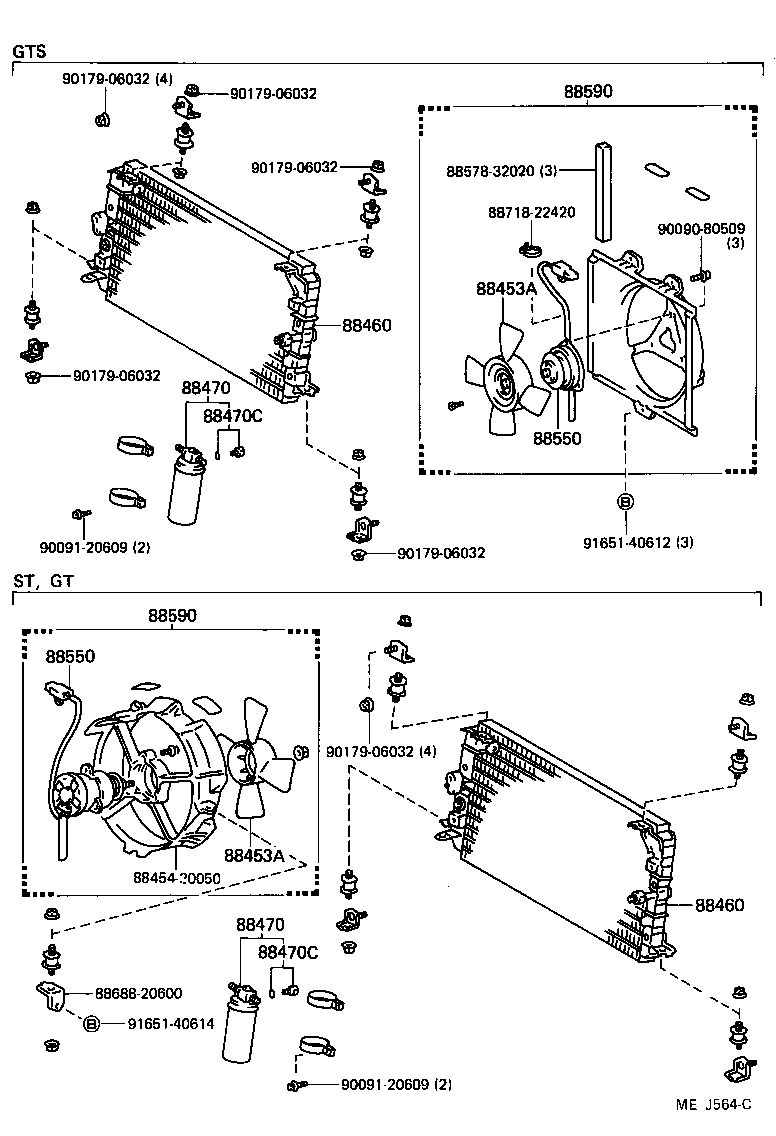

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-20020 |
ST162..ST;ST162..CVT |
1 | ||
| 88453-20020 |
ST16#..(CP,LB)..(GT,TBO4W,TBOAT) |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-20020 |
ST162..ST;ST162..CVT |
1 | ||
| 88453-20020 |
ST16#..(CP,LB)..(GT,TBO4W,TBOAT) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20200 |
ST162..ST;ST162..CVT |
1 | ||
| 88460-20200 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20200 |
ST162..ST;ST162..CVT |
1 | ||
| 88460-20200 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
ST162..ST;ST162..CVT |
1 | ||
| 88470-14010 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
ST162..ST;ST162..CVT |
1 | ||
| 88470-14010 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
ST162..ST;ST162..CVT |
1 | ||
| 88475-12020 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
ST162..ST;ST162..CVT |
1 | ||
| 88475-12020 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-20030 |
ST16#..(CP,LB)..(GT,TBO4W,TBOAT) |
1 | ||
| 88550-20030 |
ST162..ST;ST162..CVT |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-20030 |
ST16#..(CP,LB)..(GT,TBO4W,TBOAT) |
1 | ||
| 88550-20030 |
ST162..ST;ST162..CVT |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20080 |
ST16#..(CP,LB)..(GT,TBO4W,TBOAT) |
1 | ||
| 88590-20080 |
ST162..ST;ST162..CVT |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20080 |
ST16#..(CP,LB)..(GT,TBO4W,TBOAT) |
1 | ||
| 88590-20080 |
ST162..ST;ST162..CVT |
1 | ||
| Common parts | ||||
| 88454-20050 | ||||
| 88578-32020 | ||||
| 88688-20600 | ||||
| 88718-22420 | ||||
| 90090-80509 | ||||
| 90091-20609 | ||||
| 90179-06032 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||

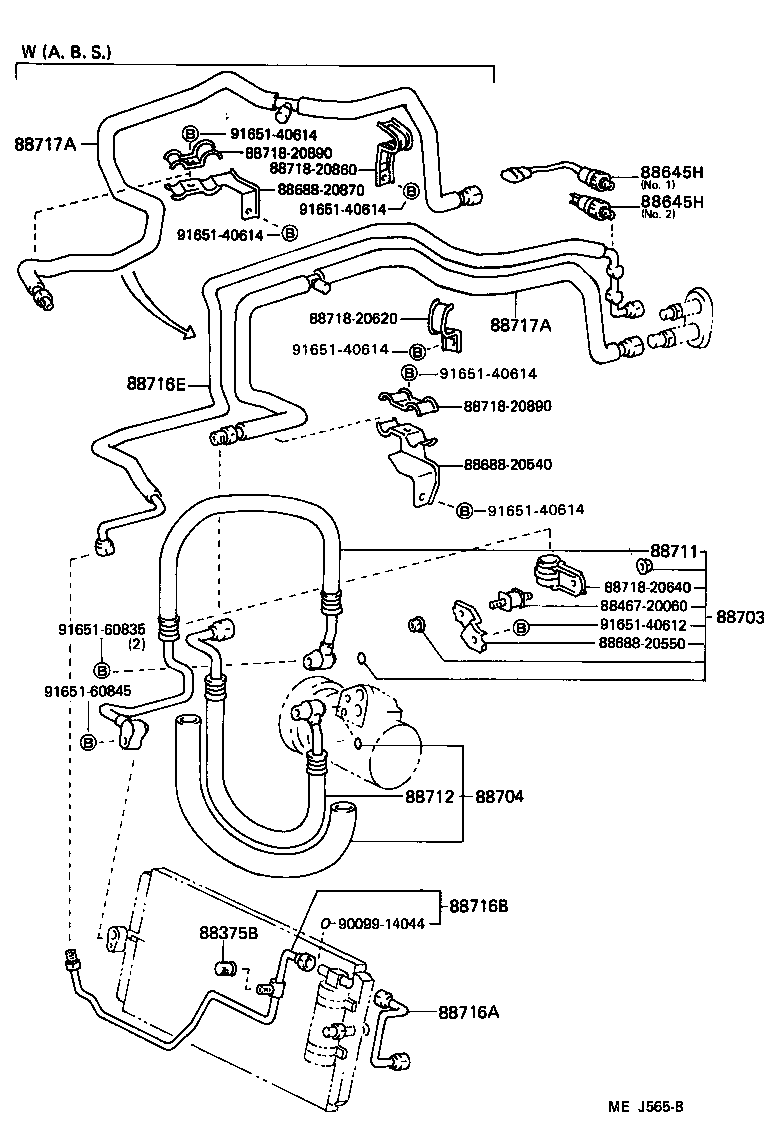

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-20010 |
ST162..ST;ST162..CVT |
1 | ||
| 88375-20010 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
ST162..ST;ST162..CVT NO.2 |
1 | ||
| 88645-10020 |
ST16#..(CP,LB)..(GT,TBO4W,TBOAT) NO.2 |
1 | ||
| 88645-32020 |
ST162..ST;ST162..CVT NO.1 |
1 | ||
| 88645-32020 |
ST16#..(CP,LB)..(GT,TBO4W,TBOAT) NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
ST162..ST;ST162..CVT NO.2 |
1 | ||
| 88645-10020 |
ST16#..(CP,LB)..(GT,TBO4W,TBOAT) NO.2 |
1 | ||
| 88645-32020 |
ST162..ST;ST162..CVT NO.1 |
1 | ||
| 88645-32020 |
ST16#..(CP,LB)..(GT,TBO4W,TBOAT) NO.1 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-20020 |
ST162..(CP,LB)..GT |
1 | ||
| 88703-20020 |
ST162..ST;ST162..CVT |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-20050 |
ST162..ST;ST162..CVT |
1 | ||
| 88704-20050 |
ST162..(CP,LB)..GT |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20570 |
ST162..ST;ST162..CVT |
1 | ||
| 88711-20570 |
ST162..(CP,LB)..GT |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-20770 |
ST162..(CP,LB)..GT |
1 | ||
| 88712-20770 |
ST162..ST;ST162..CVT |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2B011 |
ST162..ST;ST162..CVT |
1 | ||
| 88716-2B011 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-20890 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 88716-20890 |
ST162..ST;ST162..CVT |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2B030 |
ST162..ST;ST162..CVT |
1 | ||
| 88716-2B030 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-20490 |
ST162..ST;ST162..CVT |
1 | ||
| 88717-20490 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-20490 |
ST162..ST;ST162..CVT |
1 | ||
| 88717-20490 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| Common parts | ||||
| 88467-20060 | ||||
| 88688-20540 | ||||
| 88688-20550 | ||||
| 88688-20870 | ||||
| 88718-20620 | ||||
| 88718-20640 | ||||
| 88718-20860 | ||||
| 88718-20890 | ||||
| 90099-14044 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
