ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

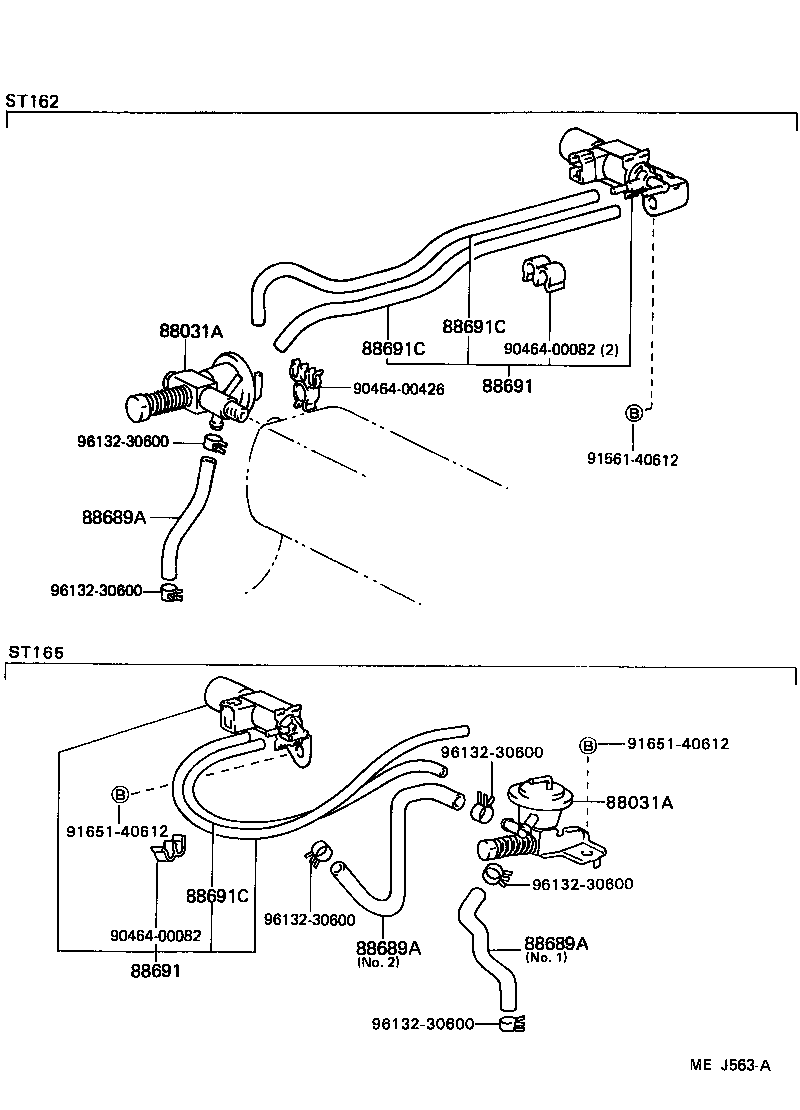

Click highlighted areas on diagram

diagram 88031A 88031A 88689A 88689A 88689A 88691 88691 88691C 88691C 88691C 9046400082 9046400082 9046400426 9156140612 9165140612 9165140612 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-32010

ST162..(CP,LB)..GT

 1
88606-32010

ST162..ST;ST162..CVT

 1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-32010

ST162..(CP,LB)..GT

 1
88606-32010

ST162..ST;ST162..CVT

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-32050

ST162..(CP,LB)..GT

 1
88689-32050

ST162..ST

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-32050

ST162..(CP,LB)..GT

 1
88689-32050

ST162..ST

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-32050

ST162..(CP,LB)..GT

 1
88689-32050

ST162..ST

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20670

ST162..ST;ST162..CVT

 1
88690-20670

ST162..(CP,LB)..(GT,GTS)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20670

ST162..ST;ST162..CVT

 1
88690-20670

ST162..(CP,LB)..(GT,GTS)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

ST162

*H,L=330,MARK=#*

 1
90999-92003

ST162

*H,L=330,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

ST162

*H,L=330,MARK=#*

 1
90999-92003

ST162

*H,L=330,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

ST162

*H,L=330,MARK=#*

 1
90999-92003

ST162

*H,L=330,MARK=#0

 1
Common parts
90464-00082
90464-00426
91561-40612
91651-40612
96132-30600
