ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

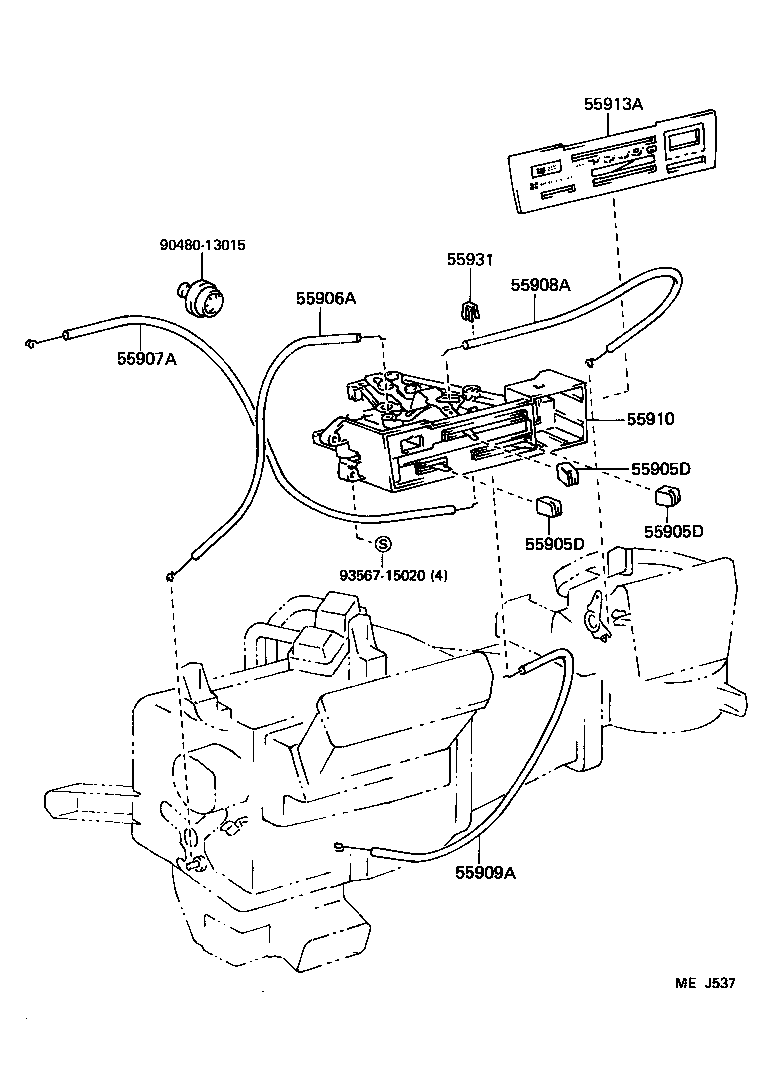

ILLUST NO. 1 OF 3(8708- )ST

Click highlighted areas on diagram

diagram 55905D 55905D 55905D 55906A 55907A 55908A 55909A 55910 55913A 55931 9048013015 9356715020
Part # Description Qty Price
55905D - KNOB SUB-ASSY, CONTROL
55905-12070

ST162..ST

 3
55905D - KNOB SUB-ASSY, CONTROL
55905-12070

ST162..ST

 3
55905D - KNOB SUB-ASSY, CONTROL
55905-12070

ST162..ST

 3
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20230

ST162..ST

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20190

ST162..ST

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20110

ST162..ST

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20060

ST162..ST

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55900-20440

ST16#..GT,GTS,TBO4W,TBOAT

W(MANUAL AIR CONDITIONER)

 1
55900-20430

ST16#..GT,GTS,TBO4W,TBOAT

 1
55910-20390

ST162..ST

W(AUTOMATIC AIR CONDITIONER)

 1
55900-20460

ST16#..(GT,GTS,TBO4W)..CND

W(AUTOMATIC AIR CONDITIONER)

 1
55913A - PLATE, HEATER CONTROL LEVER GUIDE
55519-20201

ST162..ST

W(AIR CONDITIONER)

 1
55519-20191

ST162..ST

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

ST162..ST

 4
Common parts
90480-13015
93567-15020

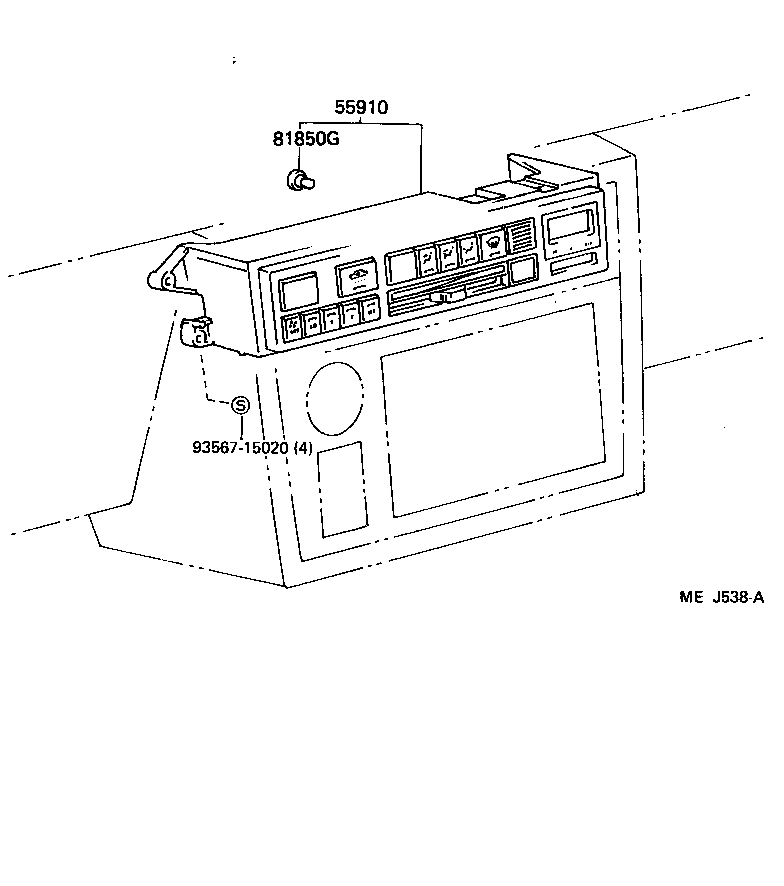

ILLUST NO. 1 OF 3(8708- )GT,GTS,TBO4W,TBOAT

Click highlighted areas on diagram

diagram 55910 81850G 9356715020
Part # Description Qty Price
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55900-20440

ST16#..GT,GTS,TBO4W,TBOAT

W(MANUAL AIR CONDITIONER)

 1
55900-20430

ST16#..GT,GTS,TBO4W,TBOAT

 1
55910-20390

ST162..ST

W(AUTOMATIC AIR CONDITIONER)

 1
55900-20460

ST16#..(GT,GTS,TBO4W)..CND

W(AUTOMATIC AIR CONDITIONER)

 1
81850G - LAMP ASSY, INDICATOR
81850-20140

ST16#..GT,GTS,TBO4W,TBOAT

 2
Common parts
93567-15020

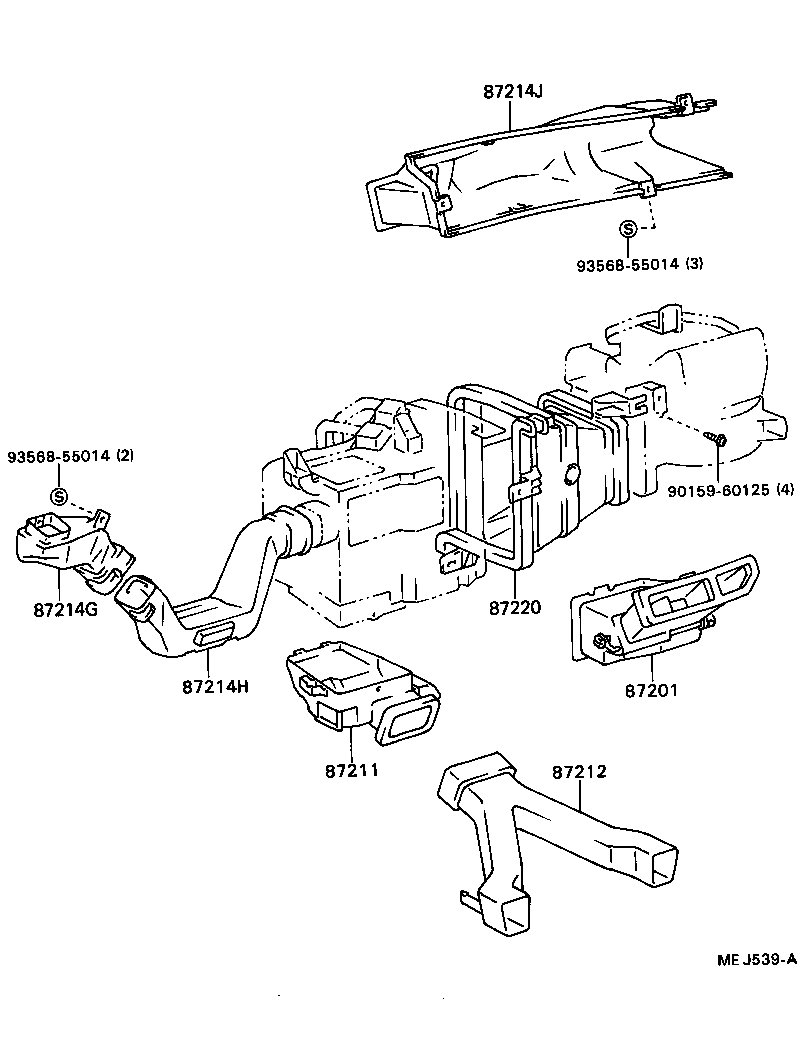

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

diagram 87201 87211 87212 87214G 87214H 87214J 87220 9015960125 9356855014 9356855014
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20160

ST16#

 1
87211 - DUCT, AIR, NO.1
87211-20100

ST16#

 1
87212 - DUCT, AIR, REAR NO.1
87202-20020

ST16#

 1
87214G - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-20120

ST16#

 1
87214H - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-20070

ST16#

W(AIR CONDITIONER)

 1
55085-20080

ST16#

 1
87214J - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-20060

ST16#

 1
87220 - DUCT ASSY, AIR
87220-20020

ST16#

 1
Common parts
90159-60125
93568-55014

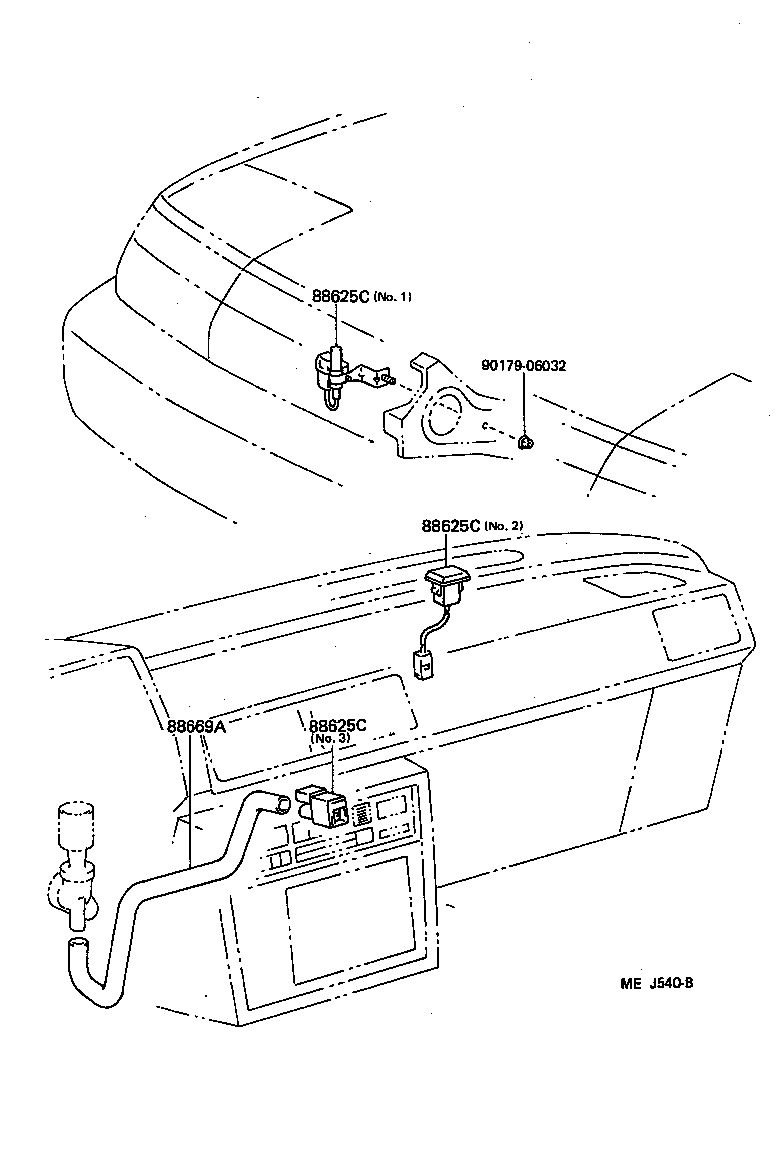

ILLUST NO. 3 OF 3(8708- )

Click highlighted areas on diagram

diagram 88625C 88625C 88625C 88669A 9017906032
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88625-20180

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

NO.1

 1
88625-20130

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

NO.3

 1
88625-20140

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

NO.2

 1
88625C - THERMISTOR, COOLER
88625-20180

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

NO.1

 1
88625-20130

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

NO.3

 1
88625-20140

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

NO.2

 1
88625C - THERMISTOR, COOLER
88625-20180

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

NO.1

 1
88625-20130

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

NO.3

 1
88625-20140

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

NO.2

 1
88669A - HOSE (FOR COOLER THERMISTOR)
88669-20010

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

 1
Common parts
90179-06032
