ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

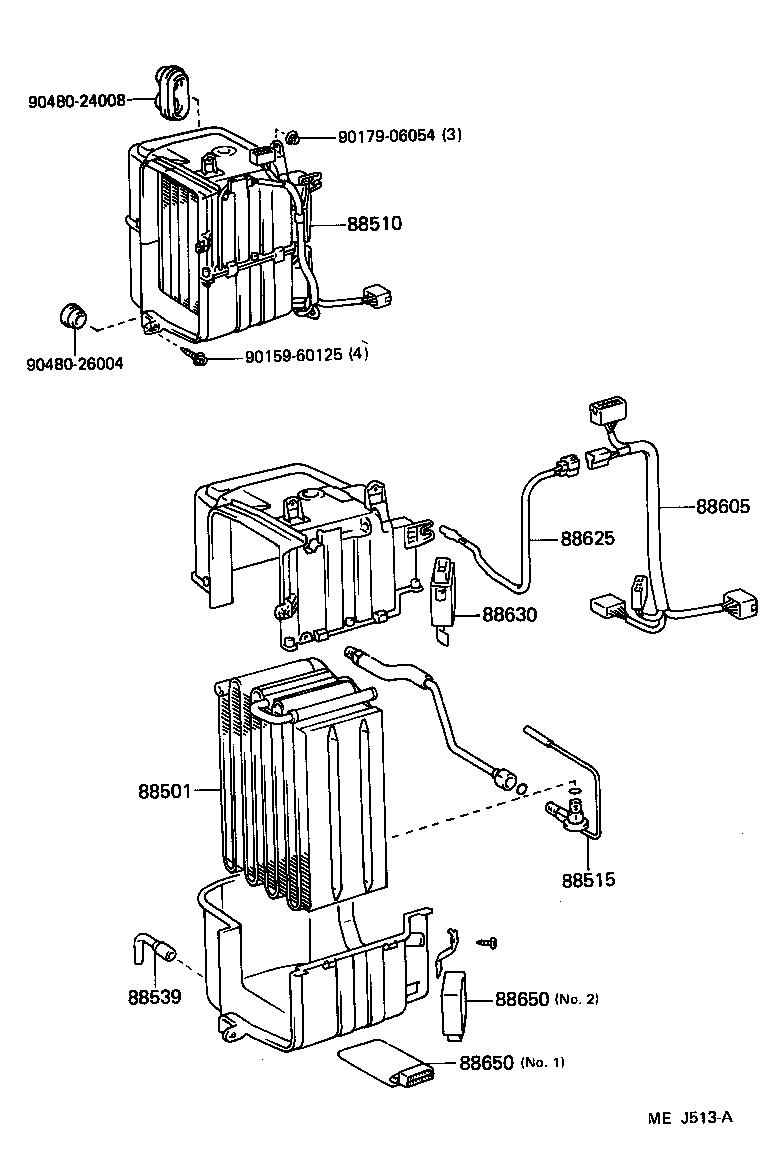

diagram 88501 88510 88515 88539 88605 88625 88630 88650 88650 9015960125 9017906054 9048024008 9048026004
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20211

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

 1
88501-20211

ST162..ST;ST162..CVT

 1
88510 - UNIT ASSY, COOLER
88510-20520

ST162..(CP,LB)..(GT,GTS)

 1
88510-20500

ST162..ST

 1
88515 - VALVE, COOLER EXPANSION
88515-16040

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

 1
88515-16040

ST162..ST;ST162..CVT

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110

ST162..ST;ST162..CVT

 1
88539-22110

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-20590

ST162..ST

 1
88605-20601

ST162..(CP,LB)..(GT,GTS)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12070

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

 1
88625-12070

ST162..ST;ST162..CVT

 1
88630 - RELAY ASSY, COOLER
88630-20020

ST162..CP..(GT,GTS)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20350

ST162..(CP,LB)..(GT,GTS)

NO.1

 1
88650-20350

ST162..ST;ST162..CVT

NO.1

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20350

ST162..(CP,LB)..(GT,GTS)

NO.1

 1
88650-20350

ST162..ST;ST162..CVT

NO.1

 1
Common parts
90159-60125
90179-06054
90480-24008
90480-26004
