ST162L-BCPVKK (1987)
Toyota Celica

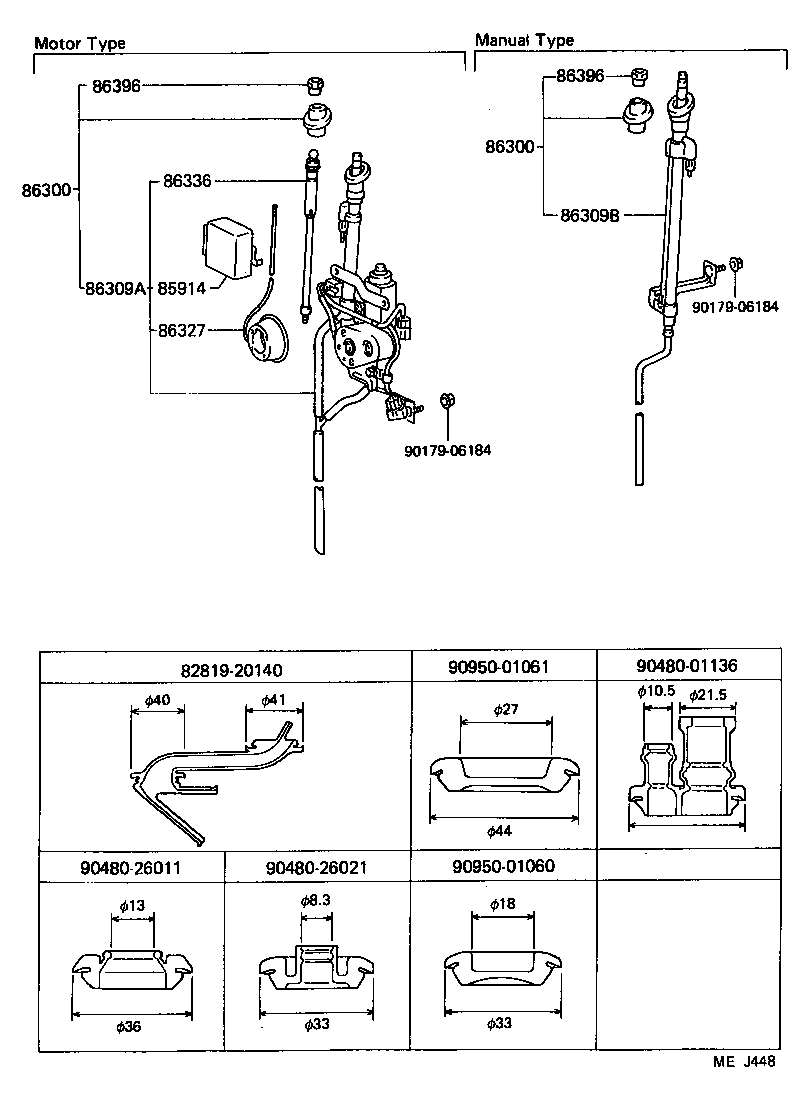

ILLUST NO. 1 OF 2(8708- )ST162
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-20150 |
ST162 |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-20150 |
ST162 |
1 | ||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85914 - RELAY, MOTOR ANTENNA CONTROL | ||||
| 85914-14020 |
ST162..ST |
1 | ||
| 85914-14020 |
ST16#..GT,GTS,TBO4W,TBOAT |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-20211 |
ST162..ST MOTER ANTENNA |
1 | ||
| 86300-20210 |
ST162..ST MOTOR ANTENNA |
1 | ||
| 86300-20191 |
ST162..CP..GT PULL TOP ANTENNA |
1 | ||
| 86300-20210 |
ST162..(CP,CVT)..(GT,GTS) |
1 | ||
| 86300-20191 |
ST162..ST |
1 | ||
| 86300-20211 |
ST162..(CP,CVT)..(GT,GTS) |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-20211 |
ST162..ST MOTER ANTENNA |
1 | ||
| 86300-20210 |
ST162..ST MOTOR ANTENNA |
1 | ||
| 86300-20191 |
ST162..CP..GT PULL TOP ANTENNA |
1 | ||
| 86300-20210 |
ST162..(CP,CVT)..(GT,GTS) |
1 | ||
| 86300-20191 |
ST162..ST |
1 | ||
| 86300-20211 |
ST162..(CP,CVT)..(GT,GTS) |
1 | ||
| 86309A - POLE SUB-ASSY, MOTOR ANTENNA | ||||
| 86309-20150 |
ST162..ST |
1 | ||
| 86309-20150 |
ST162..(CP,CVT)..(GT,GTS) |
1 | ||
| 86309-20151 |
ST162..ST |
1 | ||
| 86309-20151 |
ST162..(CP,CVT)..(GT,GTS) |
1 | ||
| 86309B - POLE SUB-ASSY, PULL TOP ANTENNA | ||||
| 86309-20131 |
ST162..CP..GT |
1 | ||
| 86309-20131 |
ST162..ST |
1 | ||
| 86327 - CABLE, W/ANTENNA DRUM | ||||
| 86327-22210 |
ST162 MOTER ANTENNA |
1 | ||
| 86336 - ROD & PIPE, SHIELD | ||||
| 86336-14350 |
ST162 MOTER ANTENNA |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-12020 |
ST162..(CP,LB)..GT PULL TOP ANTENNA |
1 | ||
| 86396-12020 |
ST162..ST |
1 | ||
| 86396-14041 |
ST162..ST MOTER ANTENNA |
1 | ||
| 86396-14041 |
ST16#..GT,GTS,TBO4W,TBOAT |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-12020 |
ST162..(CP,LB)..GT PULL TOP ANTENNA |
1 | ||
| 86396-12020 |
ST162..ST |
1 | ||
| 86396-14041 |
ST162..ST MOTER ANTENNA |
1 | ||
| 86396-14041 |
ST16#..GT,GTS,TBO4W,TBOAT |
1 | ||
| Common parts | ||||
| 82819-20140 | ||||
| 90179-06184 | ||||
| 90480-01136 | ||||
| 90480-26011 | ||||
| 90480-26021 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
