ST162L-BCPVKK (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

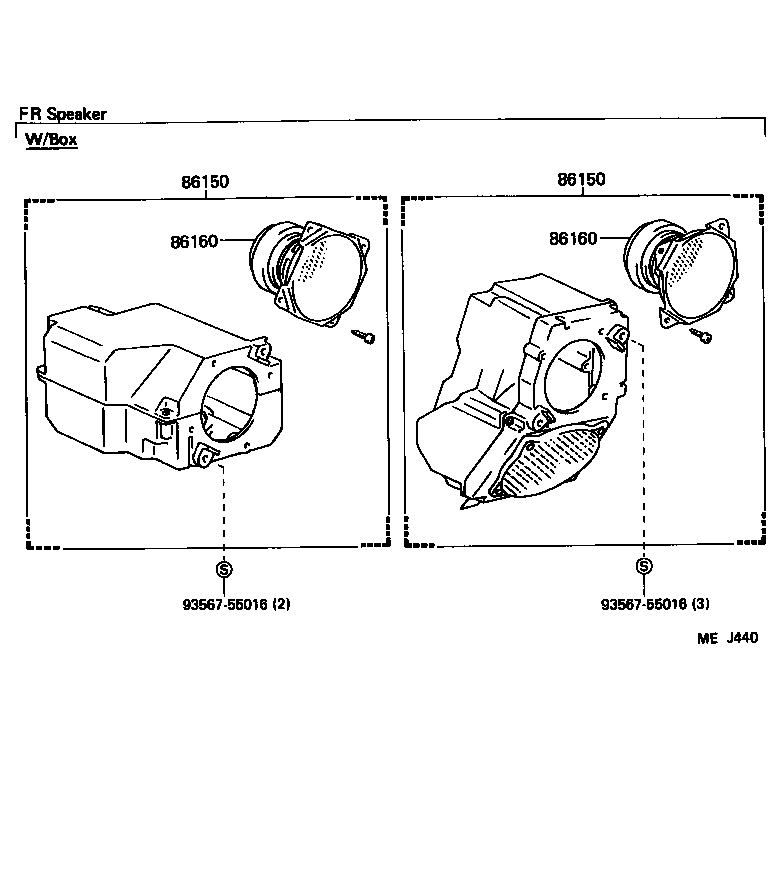

ILLUST NO. 1 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-20080 |
ST16# FR-RH |
1 | ||
| 86150-20071 |
ST16# FR-LH |
1 | ||
| 86150-20081 |
ST16# FR-RH |
1 | ||
| 86150-20070 |
ST16# FR-LH |
1 | ||
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-20080 |
ST16# FR-RH |
1 | ||
| 86150-20071 |
ST16# FR-LH |
1 | ||
| 86150-20081 |
ST16# FR-RH |
1 | ||
| 86150-20070 |
ST16# FR-LH |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-20291 |
ST16# |
2 | ||
| 86160-20290 |
ST16# |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-20291 |
ST16# |
2 | ||
| 86160-20290 |
ST16# |
2 | ||
| Common parts | ||||
| 93567-55016 | ||||
ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-20080 |
ST16# FR-RH |
1 | ||
| 86150-20071 |
ST16# FR-LH |
1 | ||
| 86150-20081 |
ST16# FR-RH |
1 | ||
| 86150-20070 |
ST16# FR-LH |
1 | ||
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-20080 |
ST16# FR-RH |
1 | ||
| 86150-20071 |
ST16# FR-LH |
1 | ||
| 86150-20081 |
ST16# FR-RH |
1 | ||
| 86150-20070 |
ST16# FR-LH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20260 |
ST162..CP RH |
1 | ||
| 86160-20270 |
ST162..CP LH |
1 | ||
| 86160-20261 |
ST162..CP RH |
1 | ||
| 86160-20271 |
ST162..CP LH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20260 |
ST162..CP RH |
1 | ||
| 86160-20270 |
ST162..CP LH |
1 | ||
| 86160-20261 |
ST162..CP RH |
1 | ||
| 86160-20271 |
ST162..CP LH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20260 |
ST162..CP RH |
1 | ||
| 86160-20270 |
ST162..CP LH |
1 | ||
| 86160-20261 |
ST162..CP RH |
1 | ||
| 86160-20271 |
ST162..CP LH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20260 |
ST162..CP RH |
1 | ||
| 86160-20270 |
ST162..CP LH |
1 | ||
| 86160-20261 |
ST162..CP RH |
1 | ||
| 86160-20271 |
ST162..CP LH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20260 |
ST162..CP RH |
1 | ||
| 86160-20270 |
ST162..CP LH |
1 | ||
| 86160-20261 |
ST162..CP RH |
1 | ||
| 86160-20271 |
ST162..CP LH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-20260 |
ST162..CP RH |
1 | ||
| 86160-20270 |
ST162..CP LH |
1 | ||
| 86160-20261 |
ST162..CP RH |
1 | ||
| 86160-20271 |
ST162..CP LH |
1 | ||
| Common parts | ||||
| 90159-60114 | ||||
| 93385-16014 | ||||
