ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ST162

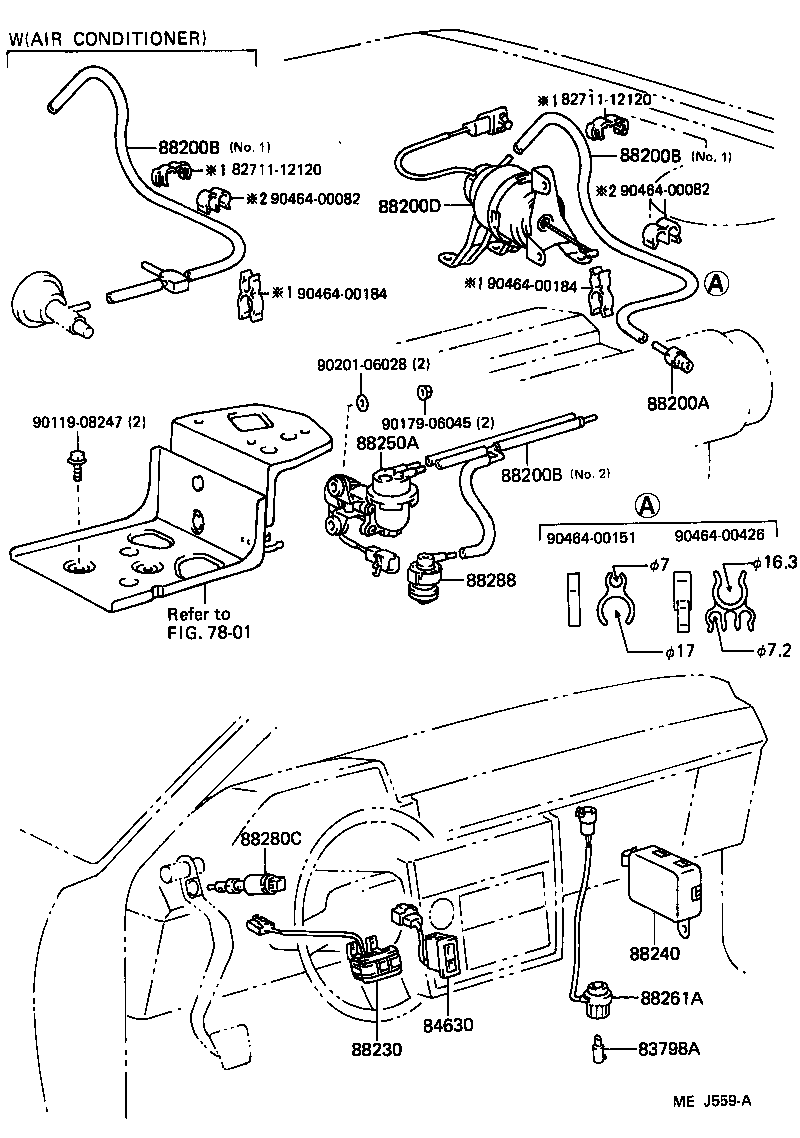

Click highlighted areas on diagram

diagram 7801 8271112120 8271112120 83798A 84630 88200A 88200B 88200B 88200B 88200D 88230 88240 88250A 88261A 88280C 88288 9011908247 9017906045 9020106028 9046400082 9046400082 9046400151 9046400184 9046400184 9046400426
Part # Description Qty Price
83798A - KEY, SPEEDOMETER CABLE ADAPTER
83798-20020

ST162..CP..(GT,GTS)

 1
83798-20020

ST162..CP..(GT,GTS)

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-20070

ST162..CP..(GT,GTS)

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19995

ST162..GT

*H,L=850,MARK=#*,NO.1

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19995

ST162..GT

*H,L=850,MARK=#*,NO.1

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19995

ST162..GT

*H,L=850,MARK=#*,NO.1

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-20040

ST162..GT,GTS

 1
88200-20041

ST162..GT,GTS

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-2008001

ST16#..GT,GTS,TBO4W,TBOAT

BLACK,TRIM2#

 1
88230-2008004

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

DEEP BLUE,TRIM8#

 1
88230-2008002

ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)

RED,TRIM3#

 1
88230-2008005

ST162..(CP,LB)..(GT,GTS)

DARK BEIGE,TRIM4#

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-20230

ST162..GT,GTS

 1
88261A - SENSOR, SPEED CRUISE CONTROL
88261-20060

ST162..(CP,LB)..(GT,GTS)

 1
88261-20060

ST162..GT,GTS

 1
Common parts
82711-12120
90119-08247
90179-06045
90201-06028
90464-00082
90464-00151
90464-00184
90464-00426
Linked diagrams
7801
