ST162L-BCPVKK (1987)
Toyota Celica

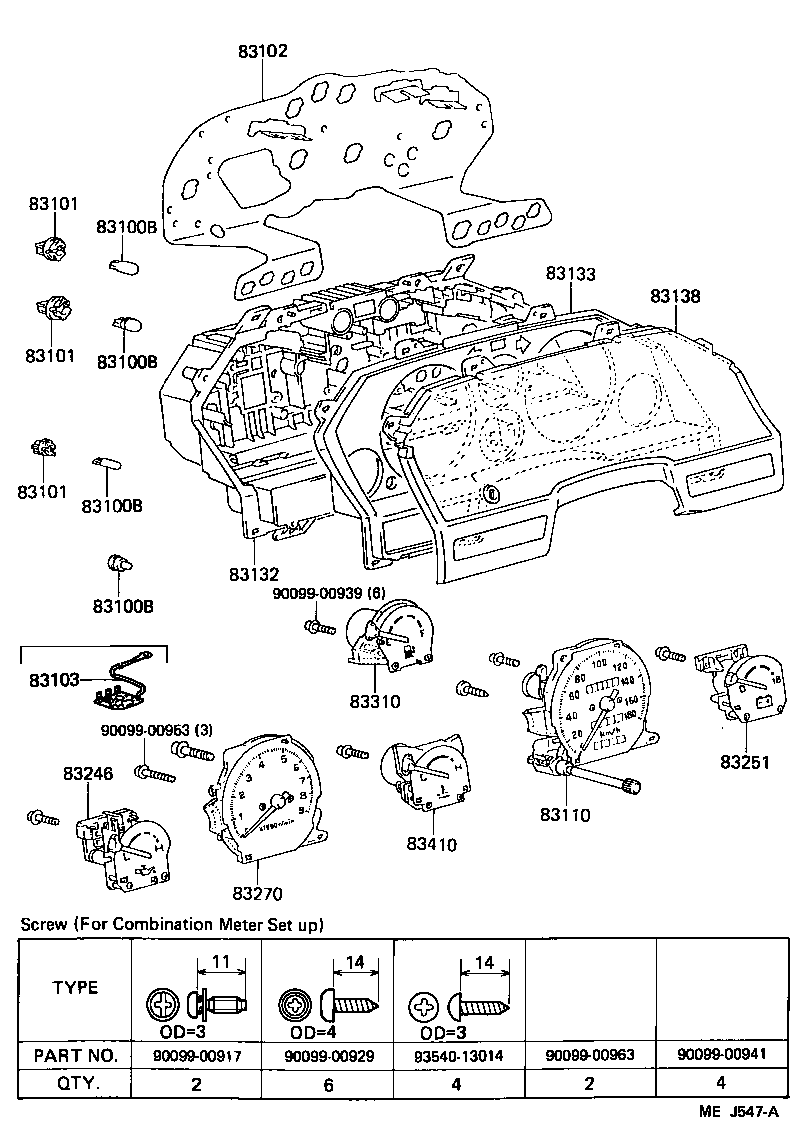

ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
ST16# 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
ST162..(CP,LB)..GT 12V 3.4W |
4 | ||
| 90981-11018 |
ST162..ST;ST162..CVT 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
ST162..ST..CND 12V 3.4W |
20 | ||
| 90981-11018 |
ST165;ST162..5F..GTS..USA;ST162..(GT,GTS)..CND 12V 1.2W W/O SOCKET |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
ST16# 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
ST162..(CP,LB)..GT 12V 3.4W |
4 | ||
| 90981-11018 |
ST162..ST;ST162..CVT 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
ST162..ST..CND 12V 3.4W |
20 | ||
| 90981-11018 |
ST165;ST162..5F..GTS..USA;ST162..(GT,GTS)..CND 12V 1.2W W/O SOCKET |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
ST16# 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
ST162..(CP,LB)..GT 12V 3.4W |
4 | ||
| 90981-11018 |
ST162..ST;ST162..CVT 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
ST162..ST..CND 12V 3.4W |
20 | ||
| 90981-11018 |
ST165;ST162..5F..GTS..USA;ST162..(GT,GTS)..CND 12V 1.2W W/O SOCKET |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
ST16# 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
ST162..(CP,LB)..GT 12V 3.4W |
4 | ||
| 90981-11018 |
ST162..ST;ST162..CVT 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
ST162..ST..CND 12V 3.4W |
20 | ||
| 90981-11018 |
ST165;ST162..5F..GTS..USA;ST162..(GT,GTS)..CND 12V 1.2W W/O SOCKET |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST162..ST;ST162..CVT BULB:12V 1.2W |
7 | ||
| 83101-14040 |
ST162..5F..GTS;ST16#..(CP,LB)..(GT,TBO4W,TBOAT) BULB:12V 1.2W |
8 | ||
| 83101-14030 |
ST162..GTS..CND;ST162..4FC..GTS;ST16#..GT,ST,TBO4W,TBOAT BULB:12V 3.4W |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST162..ST;ST162..CVT BULB:12V 1.2W |
7 | ||
| 83101-14040 |
ST162..5F..GTS;ST16#..(CP,LB)..(GT,TBO4W,TBOAT) BULB:12V 1.2W |
8 | ||
| 83101-14030 |
ST162..GTS..CND;ST162..4FC..GTS;ST16#..GT,ST,TBO4W,TBOAT BULB:12V 3.4W |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST162..ST;ST162..CVT BULB:12V 1.2W |
7 | ||
| 83101-14040 |
ST162..5F..GTS;ST16#..(CP,LB)..(GT,TBO4W,TBOAT) BULB:12V 1.2W |
8 | ||
| 83101-14030 |
ST162..GTS..CND;ST162..4FC..GTS;ST16#..GT,ST,TBO4W,TBOAT BULB:12V 3.4W |
8 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1J150 |
ST162..(CP,LB)..GT |
1 | ||
| 83247-1J130 |
ST162..ST;ST162..CVT |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B450 |
ST162..(GT,ST)..CND |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1D860 |
ST162..(CP,LB)..GT |
1 | ||
| 83132-1D840 |
ST162..ST;ST162..CVT |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1B490 |
ST16# |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1B150 |
ST16# |
1 | ||
| 83246 - GAUGE, OIL PRESSURE RECEIVER | ||||
| 83246-14650 |
ST16# |
1 | ||
| 83251 - METER, VOLTAGE | ||||
| 83251-14630 |
ST162 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1B190 |
ST162..(GT,ST)..CND |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-14730 |
ST16# |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1B310 |
ST16# |
1 | ||
| Common parts | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90099-00941 | ||||
| 90099-00953 | ||||
| 90099-00963 | ||||
| 93540-13014 | ||||
ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
ST16# |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
ST16# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20510 |
ST162 |
1 | ||
| 83710-20510 |
ST162..CP,LB |
1 | ||
| 83710-20590 |
ST162..GT,GTS W(CRUISE CONTROL) |
1 | ||
| 83710-20590 |
ST162..(CP,LB)..(GT,GTS) W(CRUISE CONTROL) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20510 |
ST162 |
1 | ||
| 83710-20510 |
ST162..CP,LB |
1 | ||
| 83710-20590 |
ST162..GT,GTS W(CRUISE CONTROL) |
1 | ||
| 83710-20590 |
ST162..(CP,LB)..(GT,GTS) W(CRUISE CONTROL) |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-20530 |
ST162 |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-20530 |
ST162 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20581 |
ST16# |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 91661-60816 | ||||
| Linked diagrams | ||||
| 8408 | ||||
ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
ST16# 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
ST162..(CP,LB)..GT 12V 3.4W |
4 | ||
| 90981-11018 |
ST162..ST;ST162..CVT 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
ST162..ST..CND 12V 3.4W |
20 | ||
| 90981-11018 |
ST165;ST162..5F..GTS..USA;ST162..(GT,GTS)..CND 12V 1.2W W/O SOCKET |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST162..ST;ST162..CVT BULB:12V 1.2W |
7 | ||
| 83101-14040 |
ST162..5F..GTS;ST16#..(CP,LB)..(GT,TBO4W,TBOAT) BULB:12V 1.2W |
8 | ||
| 83101-14030 |
ST162..GTS..CND;ST162..4FC..GTS;ST16#..GT,ST,TBO4W,TBOAT BULB:12V 3.4W |
8 | ||
| Common parts | ||||
| 83101-14030 | ||||
| 83101-14040 | ||||
| 83101-20080 | ||||
| 83109-24020 | ||||
| 90981-11018 | ||||
| 99132-12034 | ||||
