ST162L-BCPVKK (1987)
Toyota Celica

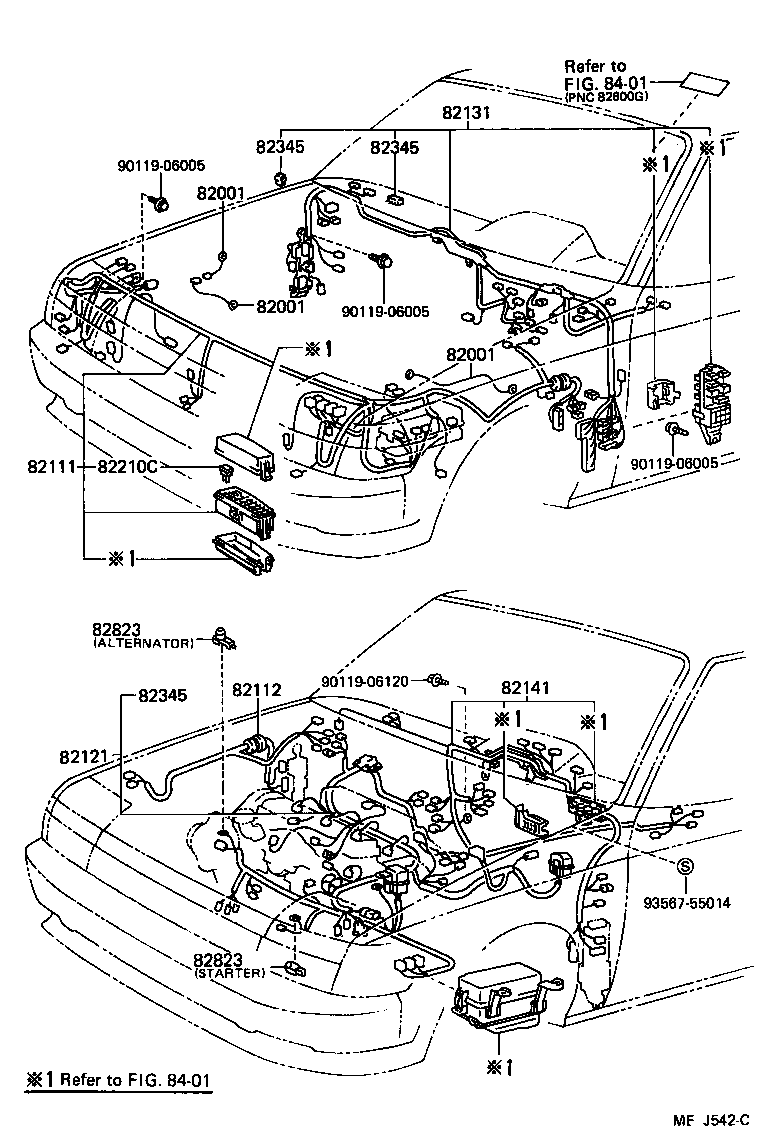

ILLUST NO. 1 OF 7(8708- )GT,ST,TBO4W,TBOAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
ST16# TRANSMISSION--FENDER |
1 | ||
| 90980-07280 |
ST162..GT,ST ENGINE HANGER |
1 | ||
| 90980-07206 |
ST16# FENDER RH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
ST16# TRANSMISSION--FENDER |
1 | ||
| 90980-07280 |
ST162..GT,ST ENGINE HANGER |
1 | ||
| 90980-07206 |
ST16# FENDER RH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
ST16# TRANSMISSION--FENDER |
1 | ||
| 90980-07280 |
ST162..GT,ST ENGINE HANGER |
1 | ||
| 90980-07206 |
ST16# FENDER RH |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2B040 |
ST162..GT,ST |
1 | ||
| 82111-2B050 |
ST162..(CP,CVT)..GT W(CRUISE CONTROL) |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-20340 |
ST162..CVT;ST162..(CP,LB)..4FC..(GT,ST) |
1 | ||
| 82112-20340 |
ST162..4FC..(GT,ST) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-2B491 |
ST162..4FC..(GT,ST) |
1 | ||
| 82121-2B492 |
ST162..4FC..(GT,ST) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-2D690 |
ST162..(CP,LB)..GT |
1 | ||
| 82131-2D700 |
ST162..CP..GT W(*PW) OR W(SUN ROOF) OR W(CRUISE CONTROL) |
1 | ||
| 82131-2D680 |
ST162..ST |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-20791 |
ST162..5F..GTS;ST162..(CP,LB)..4FC..(GT,ST) |
1 | ||
| 82141-20790 |
ST162..5F..GTS;ST162..(CP,LB)..4FC..(GT,ST) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
ST16#..GT,ST,TBO4W,TBOAT 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08189 |
ST16# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08223 |
ST16# 30A,TERM.:MALE,PNK |
1 | ||
| 90982-08188 |
ST16# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
ST162..4FC..(GT,ST) NO.3 |
1 | ||
| 82345-12020 |
ST162..CP..GT NO.1 |
1 | ||
| 82345-20040 |
ST16# NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
ST162..4FC..(GT,ST) NO.3 |
1 | ||
| 82345-12020 |
ST162..CP..GT NO.1 |
1 | ||
| 82345-20040 |
ST16# NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
ST162..4FC..(GT,ST) NO.3 |
1 | ||
| 82345-12020 |
ST162..CP..GT NO.1 |
1 | ||
| 82345-20040 |
ST16# NO.2 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
ST16#..GT,ST,TBO4W,TBOAT STARTER |
1 | ||
| 82823-22060 |
ST162 ALTERNATOR |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
ST16#..GT,ST,TBO4W,TBOAT STARTER |
1 | ||
| 82823-22060 |
ST162 ALTERNATOR |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06120 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

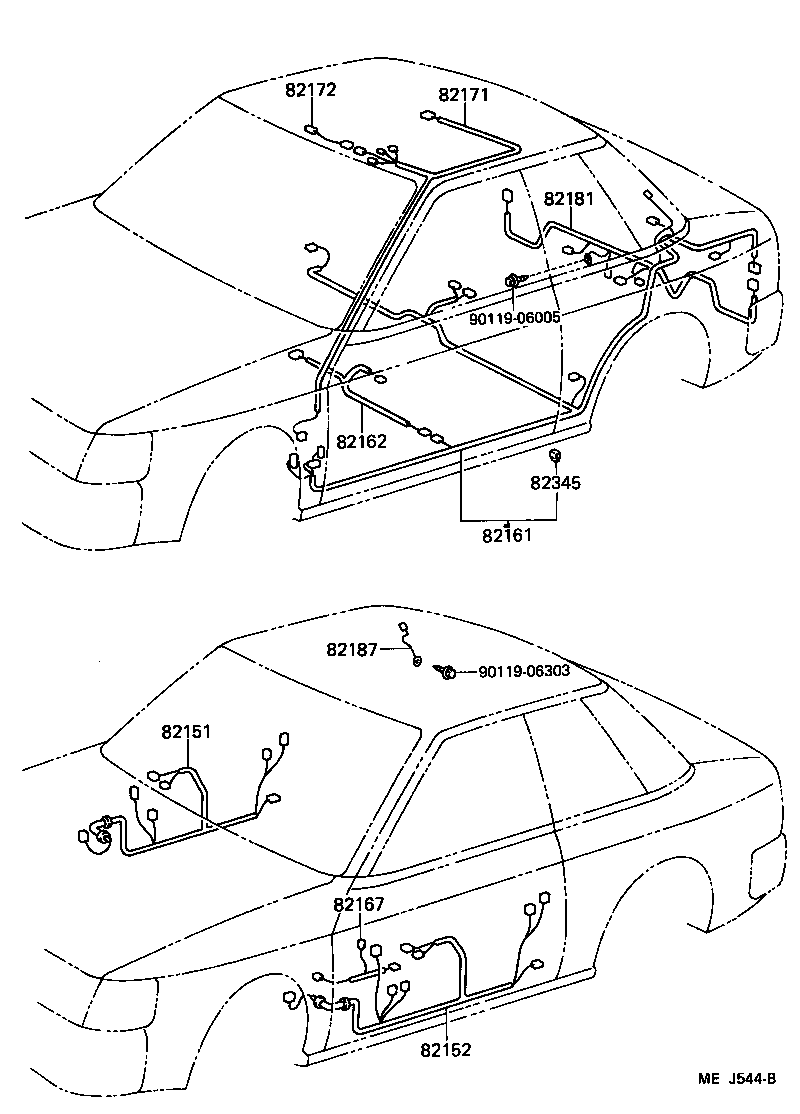

ILLUST NO. 2 OF 7(8708- )CP,CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-20340 |
ST162..(CP,LB)..(GT,GTS) |
1 | ||
| 82151-20250 |
ST162..ST;ST162..CVT |
1 | ||
| 82151-20350 |
ST162..(CP,LB)..(GT,GTS) W(POWER WINDOW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-20330 |
ST162..(CP,LB)..(GT,GTS) W(POWER WINDOW) |
1 | ||
| 82152-20320 |
ST162..(CP,LB)..(GT,GTS) |
1 | ||
| 82152-20230 |
ST162..ST;ST162..CVT |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-2B380 |
ST162..CP..(GT,GTS) |
1 | ||
| 82161-2B370 |
ST162..ST |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20200 |
ST162..(CP,LB)..(GT,ST) |
1 | ||
| 82171-20210 |
ST162..(CP,LB)..(GT,ST) W(SUN ROOF) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-20010 |
ST16#..CP,LB |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20170 |
ST162..CP,CVT |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-20080 |
ST162..CP |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
ST162..4FC..(GT,ST) NO.3 |
1 | ||
| 82345-12020 |
ST162..CP..GT NO.1 |
1 | ||
| 82345-20040 |
ST16# NO.2 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06303 | ||||

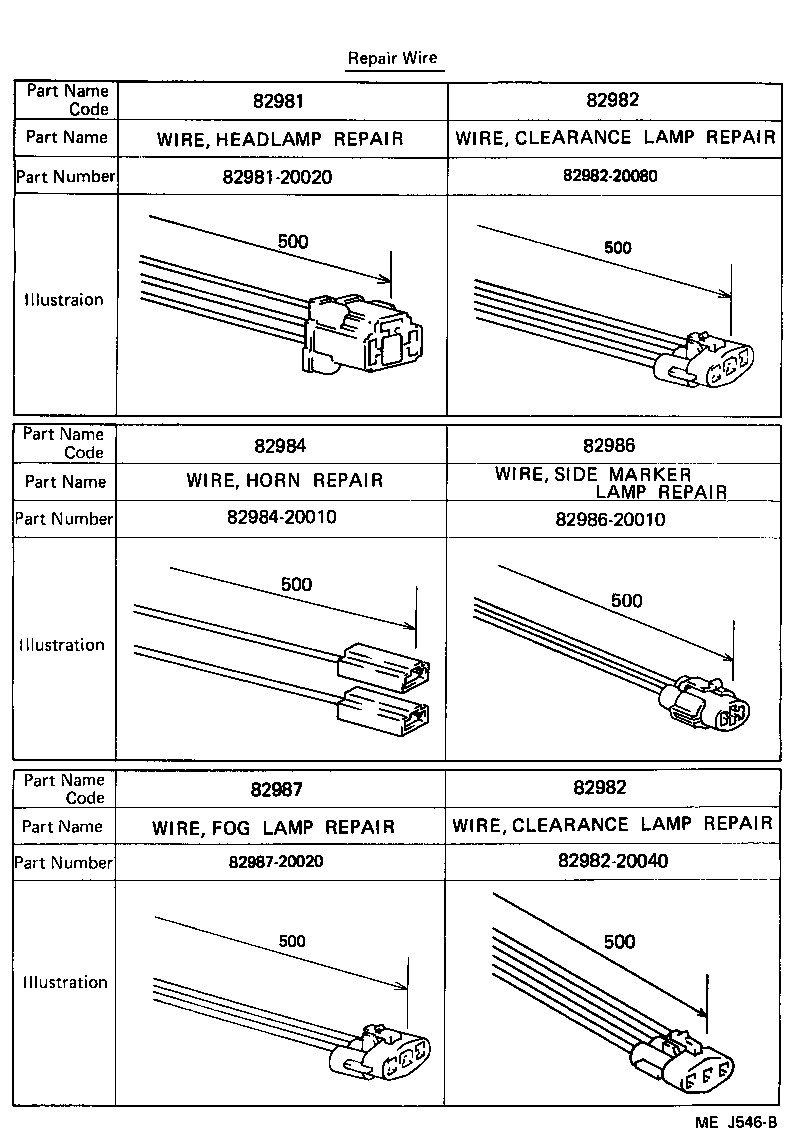

ILLUST NO. 6 OF 7(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20020 |
ST16# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20080 |
ST16# |
1 | ||
| 82982-20040 |
ST16# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20080 |
ST16# |
1 | ||
| 82982-20040 |
ST16# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
ST16# |
1 | ||
| 82986 - WIRE, SIDE MARKER LAMP REPAIR | ||||
| 82986-20010 |
ST16# |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-20020 |
ST16# |
1 | ||
| Common parts | ||||
| 82981-20020 | ||||
| 82982-20040 | ||||
| 82982-20080 | ||||
| 82984-20010 | ||||
| 82986-20010 | ||||
| 82987-20020 | ||||

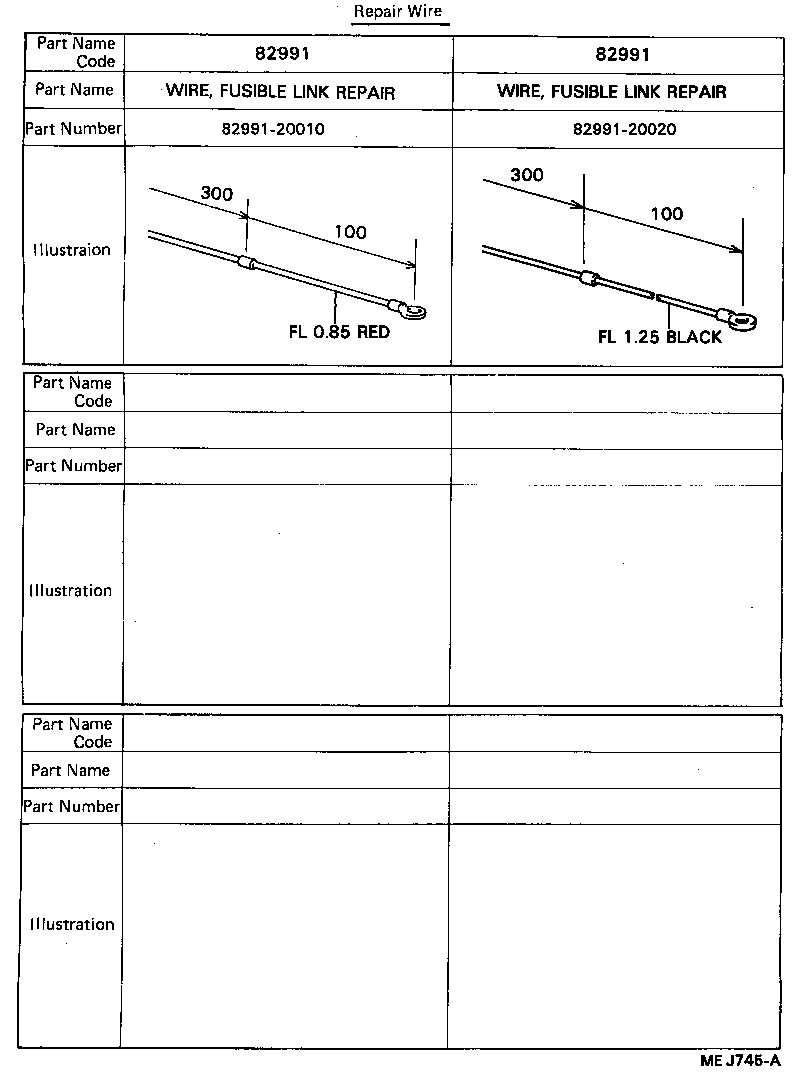

ILLUST NO. 7 OF 7(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20020 |
ST16# 1.25 BLUE |
1 | ||
| 82991-20010 |
ST16# 0.85 RED |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20020 |
ST16# 1.25 BLUE |
1 | ||
| 82991-20010 |
ST16# 0.85 RED |
1 | ||
| Common parts | ||||
| 82991-20010 | ||||
| 82991-20020 | ||||

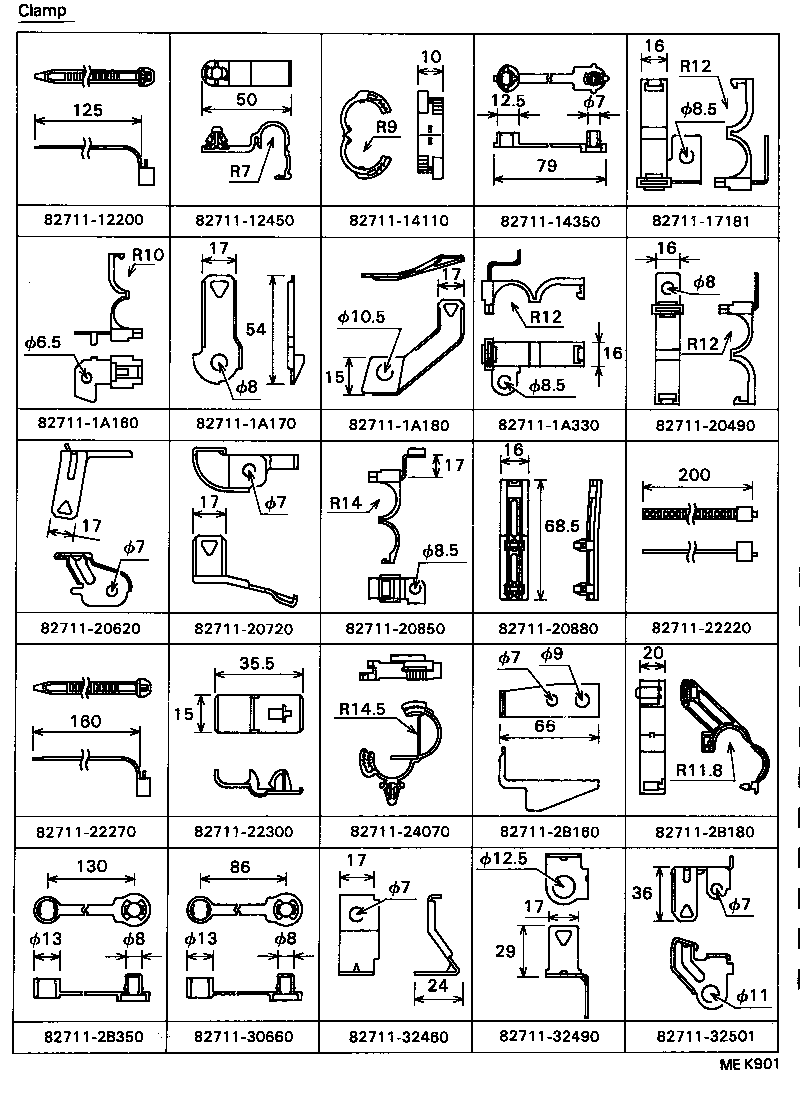

ILLUST NO. 5 OF 7(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12450 | ||||
| 82711-14110 | ||||
| 82711-14350 | ||||
| 82711-17181 | ||||
| 82711-1A160 | ||||
| 82711-1A170 | ||||
| 82711-1A180 | ||||
| 82711-1A330 | ||||
| 82711-20490 | ||||
| 82711-20620 | ||||
| 82711-20720 | ||||
| 82711-20850 | ||||
| 82711-20880 | ||||
| 82711-22220 | ||||
| 82711-22270 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-2B160 | ||||
| 82711-2B180 | ||||
| 82711-2B350 | ||||
| 82711-30660 | ||||
| 82711-32460 | ||||
| 82711-32490 | ||||
| 82711-32501 | ||||

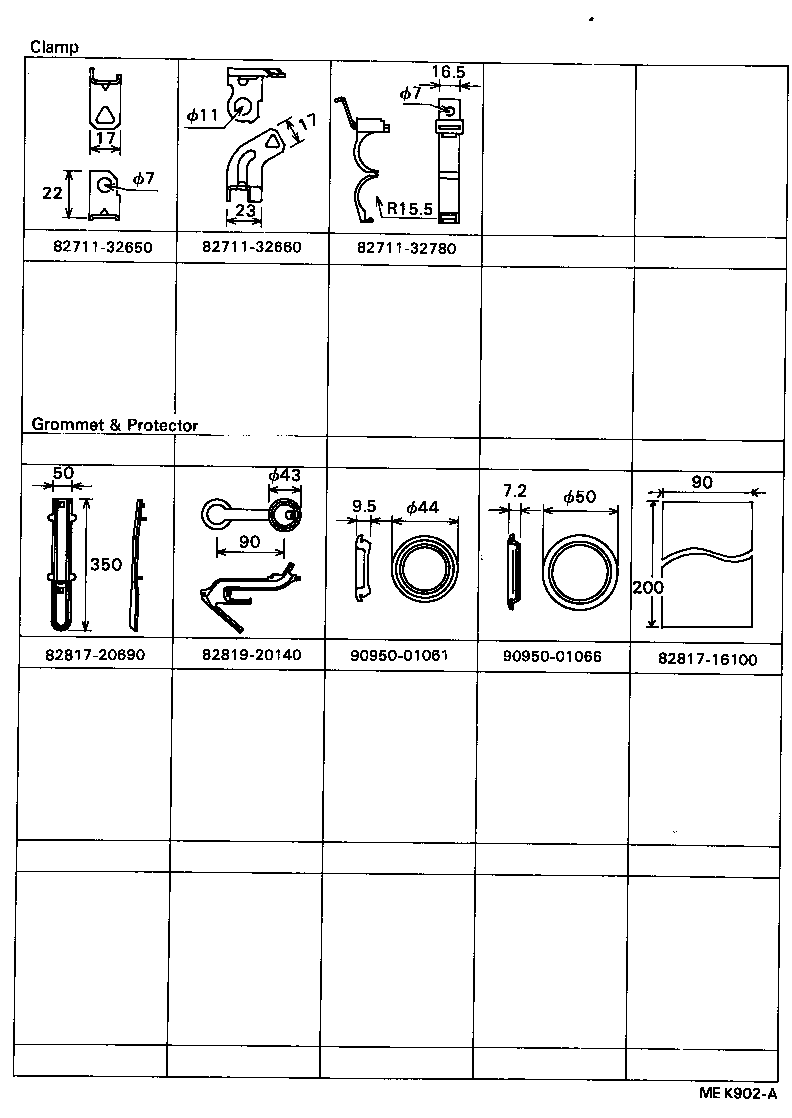

ILLUST NO. 5 OF 7(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32780 | ||||
| 82817-16100 | ||||
| 82817-20690 | ||||
| 82819-20140 | ||||
| 90950-01061 | ||||
| 90950-01066 | ||||

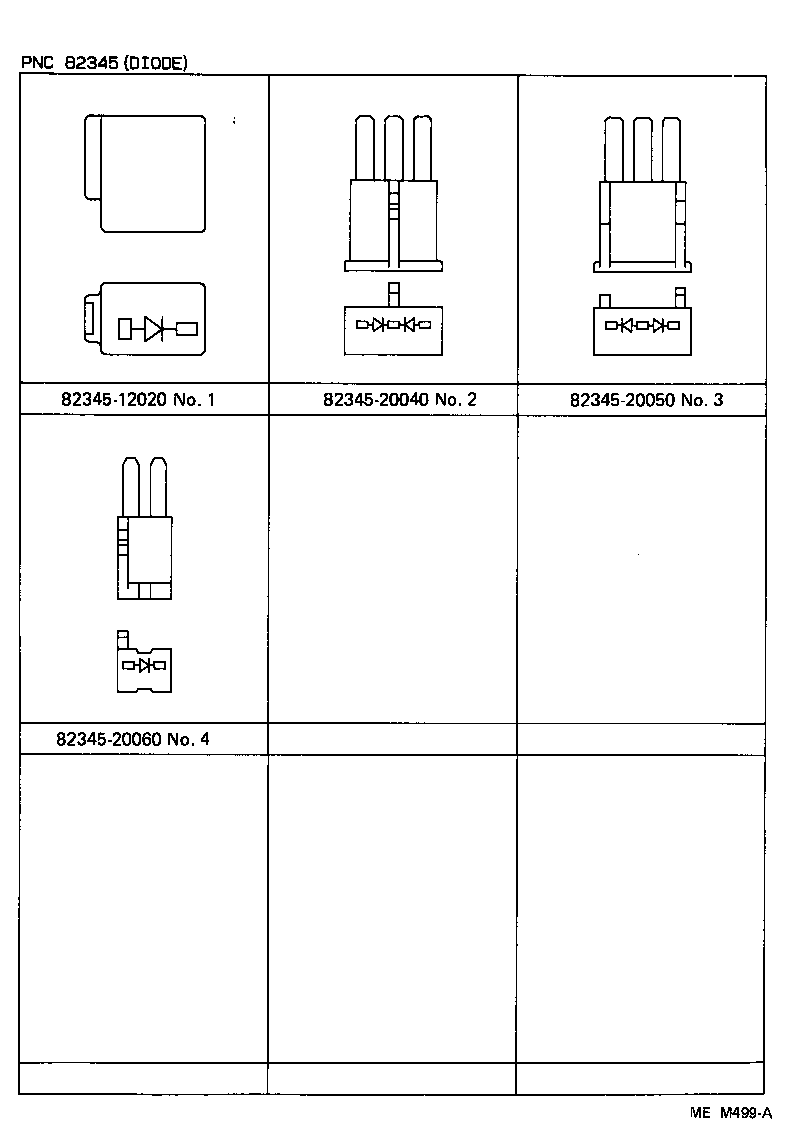

ILLUST NO. 4 OF 7(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-20050 |
ST162..4FC..(GT,ST) NO.3 |
1 | ||
| 82345-12020 |
ST162..CP..GT NO.1 |
1 | ||
| 82345-20040 |
ST16# NO.2 |
1 | ||
| Common parts | ||||
| 82345-12020 | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-20060 | ||||

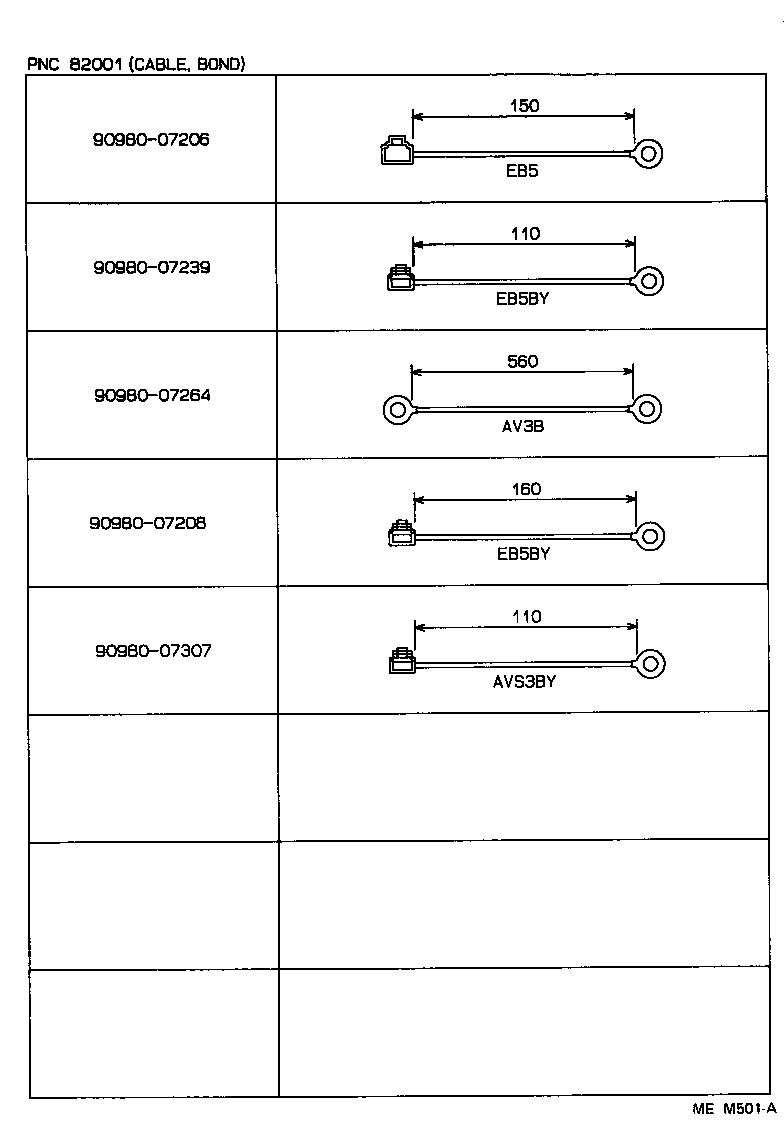

ILLUST NO. 3 OF 7(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
ST16# TRANSMISSION--FENDER |
1 | ||
| 90980-07280 |
ST162..GT,ST ENGINE HANGER |
1 | ||
| 90980-07206 |
ST16# FENDER RH |
1 | ||
| Common parts | ||||
| 90980-07206 | ||||
| 90980-07208 | ||||
| 90980-07239 | ||||
| 90980-07264 | ||||
| 90980-07307 | ||||
