ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CP,CVT

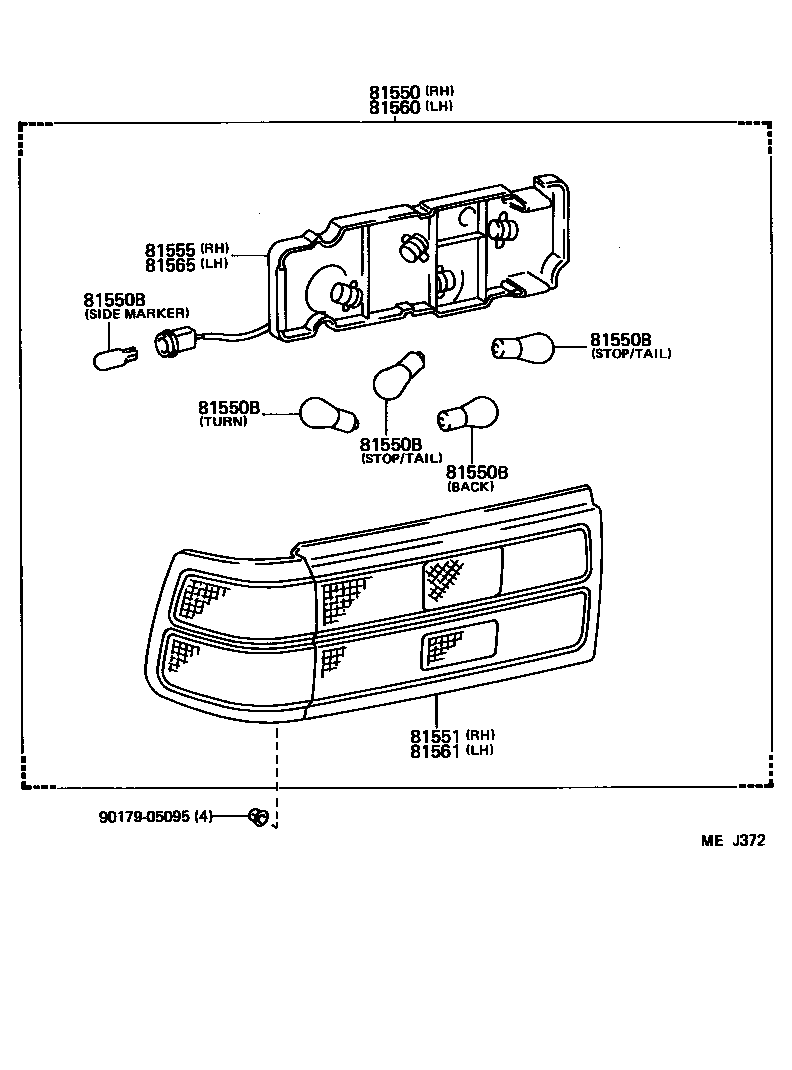

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81550B 81551 81555 81560 81561 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-20701

ST162..CP,CVT

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

ST16#

12V 27W,TURN OR BACK

 4
90981-11020

ST16#

12V 3.8W,SIDE MARKER

 2
99132-21270

ST16#

12V 27/8W,STOP/TAIL

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

ST16#

12V 27W,TURN OR BACK

 4
90981-11020

ST16#

12V 3.8W,SIDE MARKER

 2
99132-21270

ST16#

12V 27/8W,STOP/TAIL

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

ST16#

12V 27W,TURN OR BACK

 4
90981-11020

ST16#

12V 3.8W,SIDE MARKER

 2
99132-21270

ST16#

12V 27/8W,STOP/TAIL

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

ST16#

12V 27W,TURN OR BACK

 4
90981-11020

ST16#

12V 3.8W,SIDE MARKER

 2
99132-21270

ST16#

12V 27/8W,STOP/TAIL

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

ST16#

12V 27W,TURN OR BACK

 4
90981-11020

ST16#

12V 3.8W,SIDE MARKER

 2
99132-21270

ST16#

12V 27/8W,STOP/TAIL

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-20711

ST162..CP,CVT

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-20701

ST162..CP,CVT

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-20641

ST162..CP,CVT

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-20651

ST162..CP,CVT

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-20641

ST162..CP,CVT

 1
Common parts
90179-05095
