ST162L-BCPVKK (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

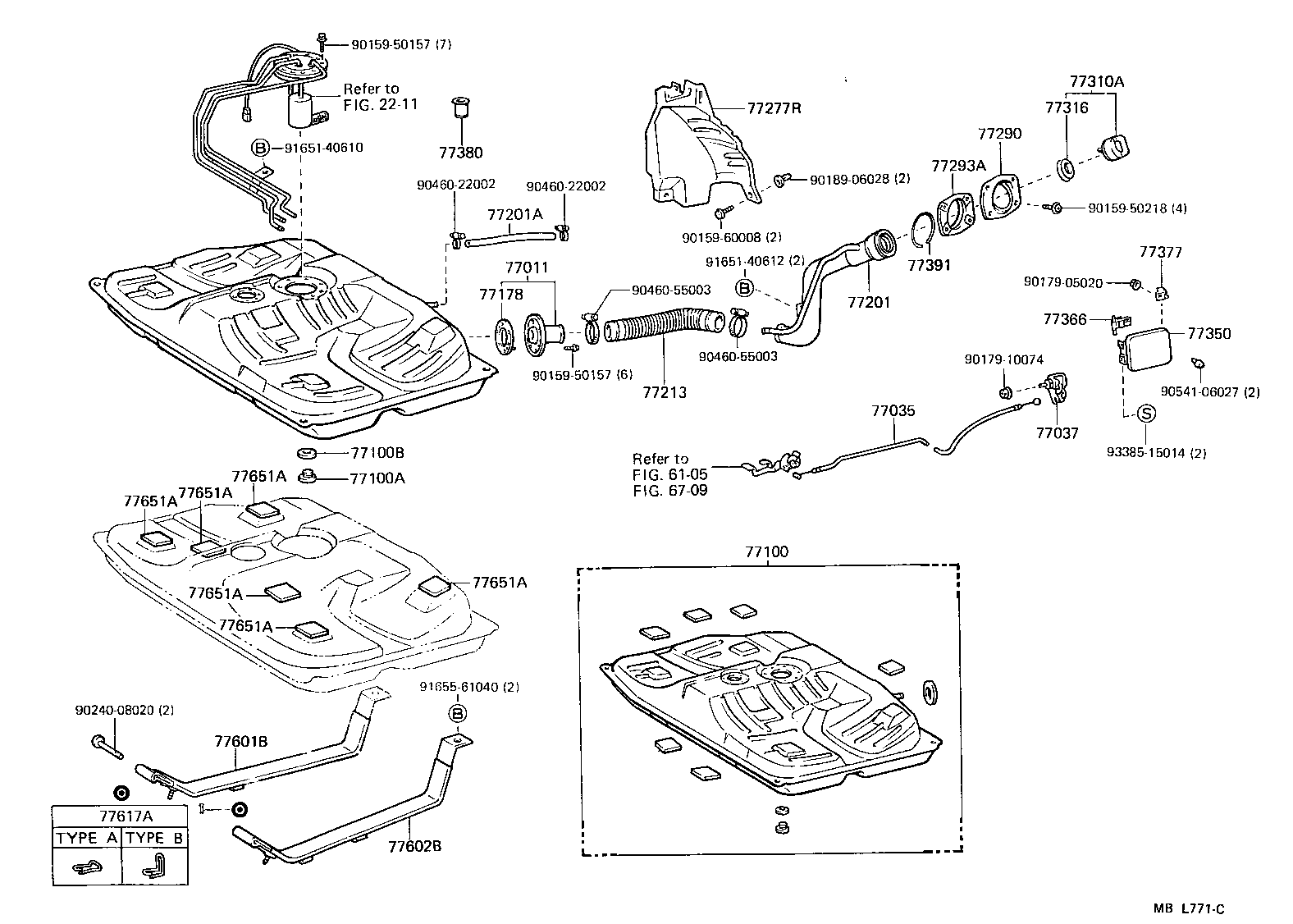

ILLUST NO. 1 OF 2(8708- )ST162
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-20020 |
ST162 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-20140 |
ST16# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12040 |
ST16# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-29257 |
ST162 |
1 | ||
| 77001-29256 |
ST162 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
ST16# |
1 | ||
| 90341-20004 |
ST162 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
ST162 |
1 | ||
| 90430-20007 |
ST16# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
ST162 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20280 |
ST162 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13024 |
ST162 *H,L=240 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-20080 |
ST162 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-20100 |
ST162 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-20060 |
ST16# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-20020 |
ST16# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
ST162 |
1 | ||
| 77310-12140 |
ST16# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
ST16# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-20090 |
ST16# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-20010 |
ST16# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
ST16# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
ST16# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
ST16# |
1 | ||
| 77391-16011 |
ST16# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-20080 |
ST162 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-20110 |
ST162 |
1 | ||
| 77617A - UNION, AUXILIARY FUEL BAND | ||||
| 77617-12010 |
ST162 TYPE B |
2 | ||
| 90468-14004 |
ST162 TYPE A |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
ST162 |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
ST162 |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
ST162 |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
ST162 |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
ST162 |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20050 |
ST162 |
6 | ||
| Common parts | ||||
| 90159-50157 | ||||
| 90159-50218 | ||||
| 90159-60008 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-06028 | ||||
| 90240-08020 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 90541-06027 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91655-61040 | ||||
| 93385-15014 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 6709 | ||||

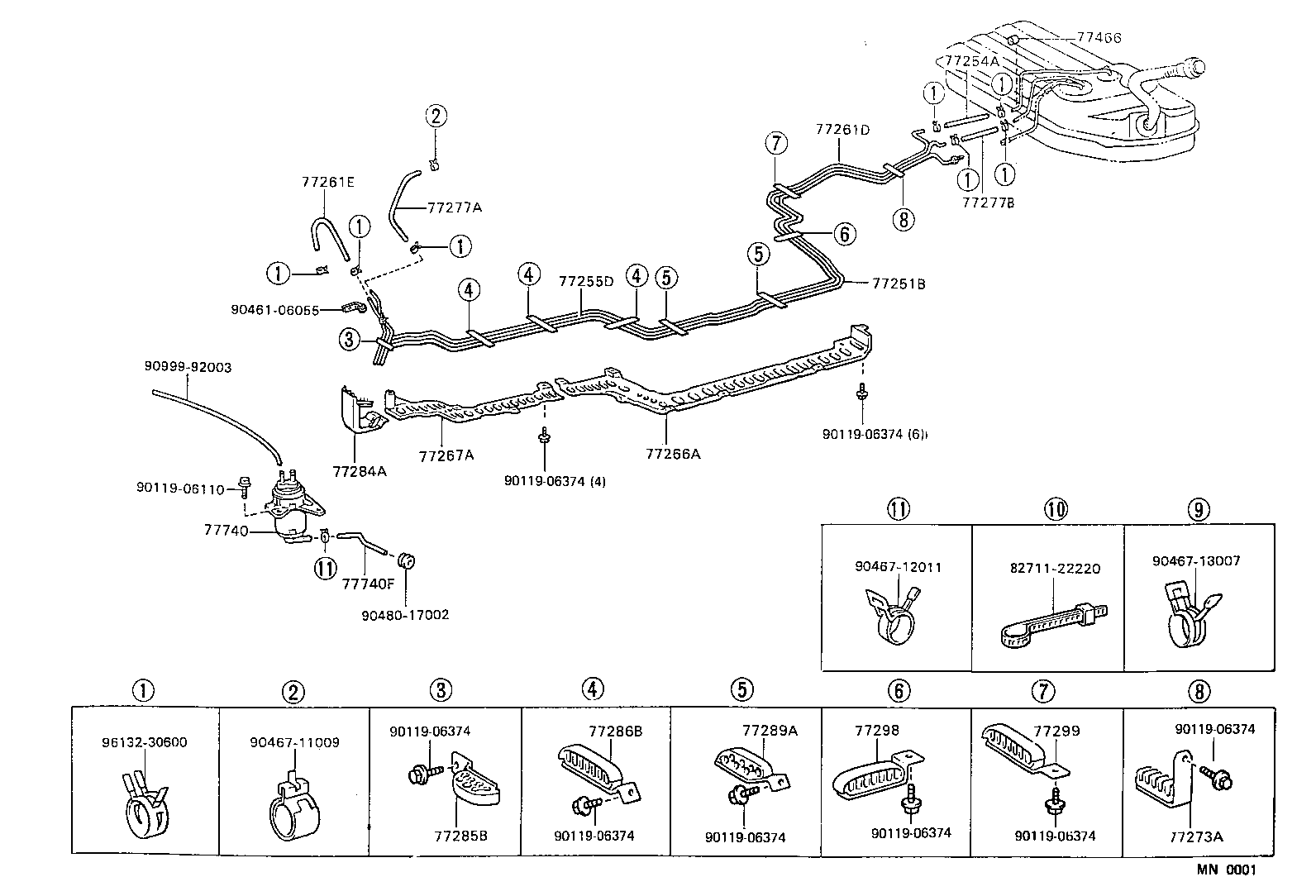

ILLUST NO. 2 OF 2(8708- )ST162
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20330 |
ST162 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06020 |
ST162 *H,L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-20200 |
ST162 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-20150 |
ST162 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-20060 |
ST16# L=240 |
1 | ||
| 77259-20060 |
ST162 L=240 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20070 |
ST162 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20010 |
ST162 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12085 |
ST162 L=320 |
1 | ||
| 90447-12113 |
ST162 L=320 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06020 |
ST162 *H,L=200 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-20031 |
ST162 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-20041 |
ST162 |
1 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-20010 |
ST162 |
3 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-20010 |
ST162 |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-20260 |
ST162 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-20040 |
ST16# |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90119-06374 | ||||
| 90464-00156 | ||||
| 90464-00310 | ||||
| 90464-00325 | ||||
| 90467-11009 | ||||
| 90467-12011 | ||||
| 90467-13007 | ||||
| 90480-01062 | ||||
| 90480-17002 | ||||
| 90959-01148 | ||||
| 95411-19960 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2211 | ||||

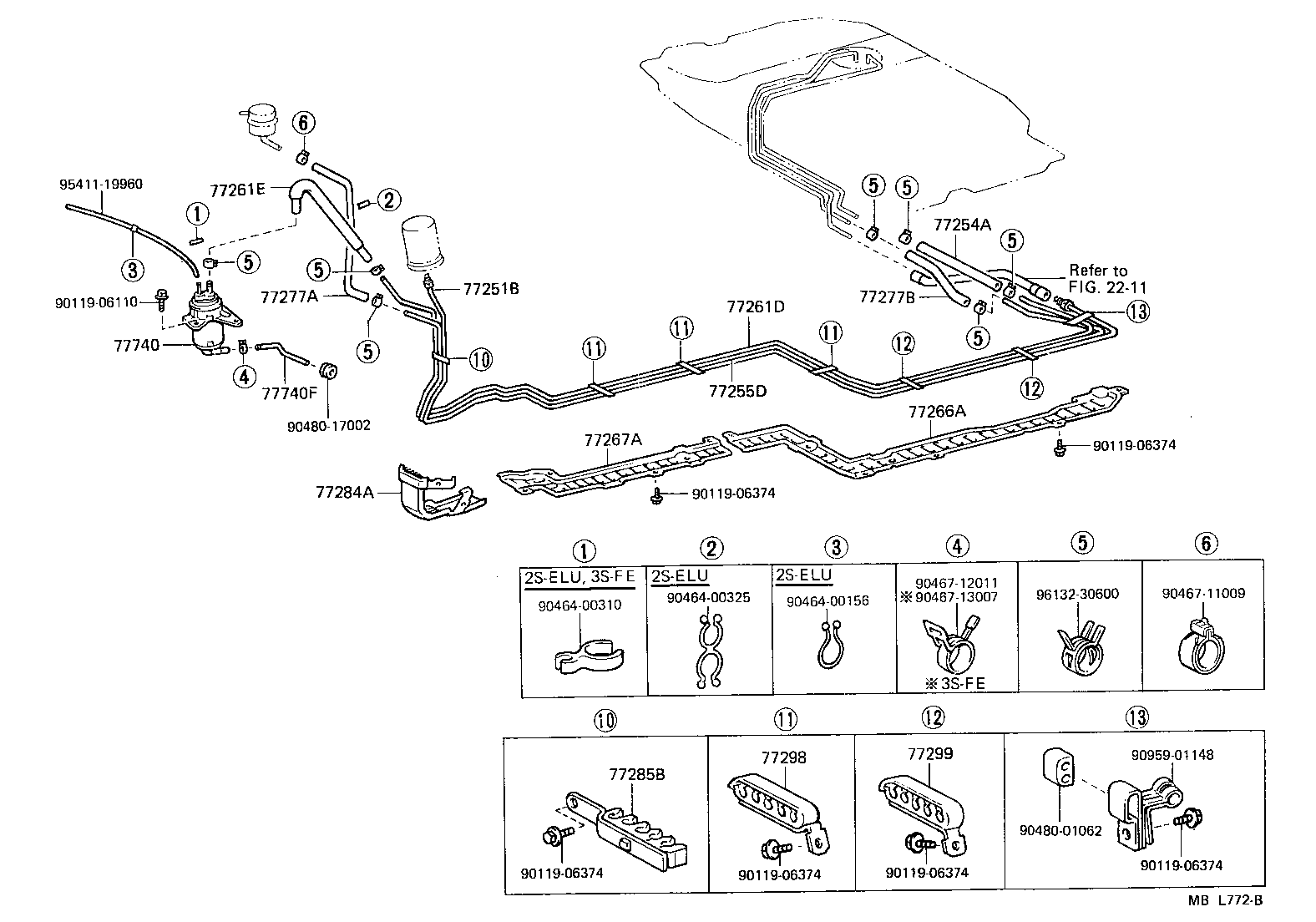

ILLUST NO. 2 OF 2(8710- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20330 |
ST162 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06020 |
ST162 *H,L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-20200 |
ST162 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-20150 |
ST162 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-20060 |
ST16# L=240 |
1 | ||
| 77259-20060 |
ST162 L=240 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20070 |
ST162 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20010 |
ST162 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12085 |
ST162 L=320 |
1 | ||
| 90447-12113 |
ST162 L=320 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06020 |
ST162 *H,L=200 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-20031 |
ST162 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-20041 |
ST162 |
1 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-20010 |
ST162 |
3 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-20010 |
ST162 |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-20260 |
ST162 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-20040 |
ST16# |
1 | ||
| Common parts | ||||
| 82711-22220 | ||||
| 90119-06110 | ||||
| 90119-06374 | ||||
| 90461-06055 | ||||
| 90467-11009 | ||||
| 90467-12011 | ||||
| 90467-13007 | ||||
| 90480-17002 | ||||
| 90999-92003 | ||||
| 96132-30600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
