ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CP,CVT

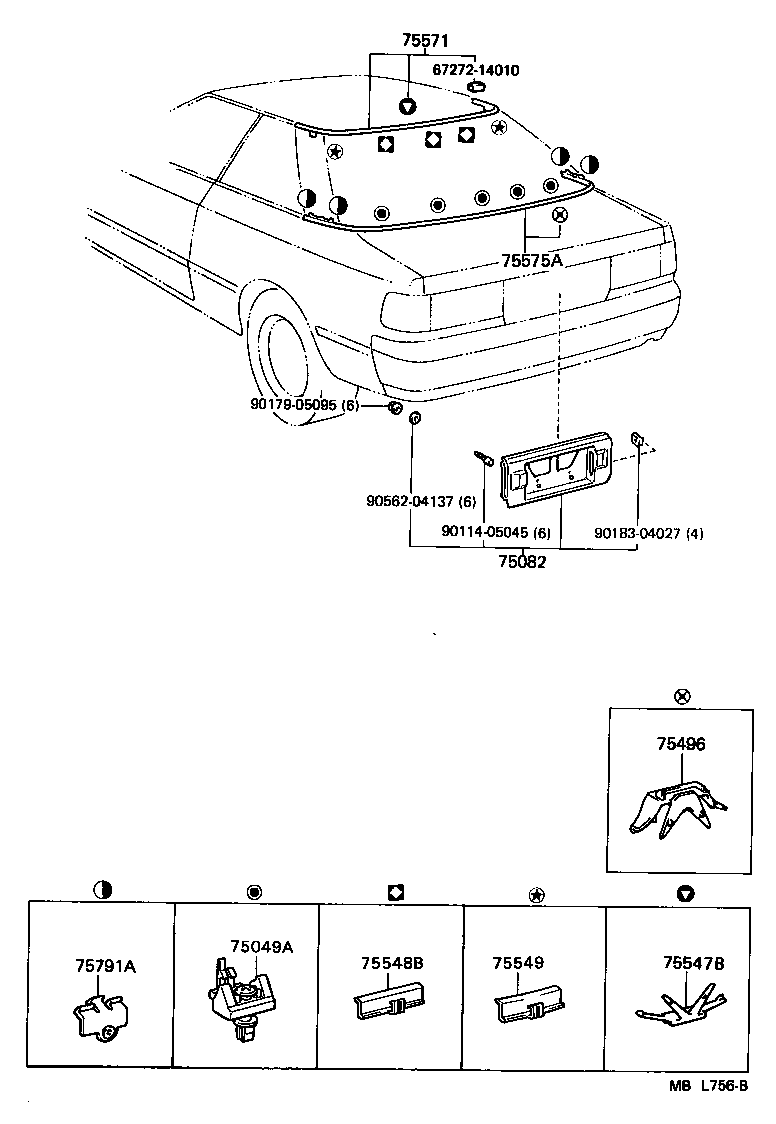

Click highlighted areas on diagram

diagram 6727214010 75049A 75082 75496 75547B 75548B 75549 75571 75575A 75791A 9011405045 9017905095 9018304027 9056204137
Part # Description Qty Price
75049A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-20060

ST162..CP

 5
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-20110

ST162..CP,CVT

 1
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-20010

ST162..CP

 5
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-20040

ST162..CP

 5
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-20060

ST162..CP

 3
75549 - FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75549-20090

ST162..CP

 2
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75501-20020

ST162..CP

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75507-20150

ST162..CP

 1
75791A - CLIP, BELT MOULDING SIDE
75791-20040

ST162..CP

 2
Common parts
67272-14010
90114-05045
90179-05095
90183-04027
90562-04137
