ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

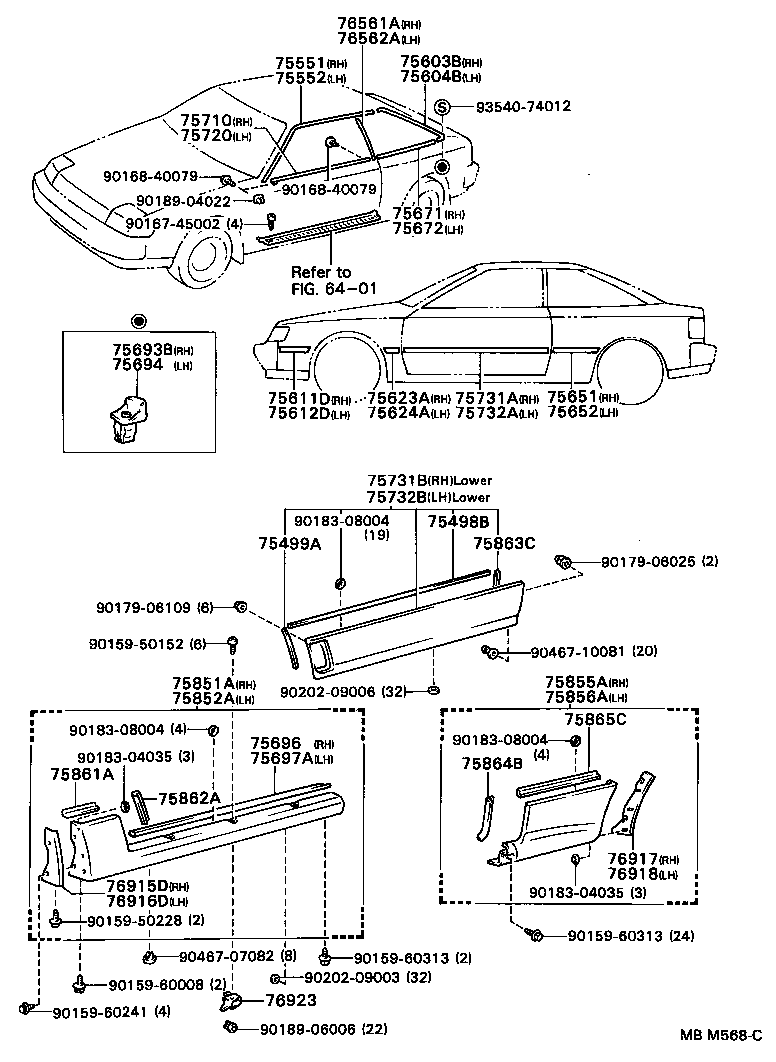

ILLUST NO. 2 OF 2(8710- )

Click highlighted areas on diagram

diagram 6401 75498B 75499A 75551 75552 75603B 75604B 75611D 75612D 75623A 75624A 75651 75652 75671 75672 75693B 75694 75696 75697A 75710 75720 75731A 75731B 75732A 75732B 75851A 75852A 75855A 75856A 75861A 75862A 75863C 75864B 75865C 76561A 76562A 76915D 76916D 76917 76918 76923 9015950152 9015950228 9015960008 9015960241 9015960313 9015960313 9016745002 9016840079 9016840079 9017906025 9017906109 9018304035 9018304035 9018308004 9018308004 9018308004 9018904022 9018906006 9020209003 9020209006 9046707082 9046710081 9354074012
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-20260

ST162..CP

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-20260

ST162..CP

 1
75611D - MOULDING, FRONT FENDER, OUTSIDE FRONT RH
75611-20210

ST162

 1
75612D - MOULDING, FRONT FENDER, OUTSIDE FRONT LH
75612-20180

ST162

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-20070

ST162

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-20070

ST162

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-20200

ST162

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-20190

ST162

 1
75671 - MOULDING, QUARTER BELT, RH
75671-20030

ST162..CP

 1
75672 - MOULDING, QUARTER BELT, LH
75672-20030

ST162..CP

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-20280

ST16#..CP,LB

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-20280

ST16#..CP,LB

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-20220

ST162

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-20220

ST162

 1
76561A - MOULDING, CENTER PILLAR, RH
76561-20010

ST16#..CP,LB

 1
76562A - MOULDING, CENTER PILLAR, LH
76562-20010

ST16#..CP,LB

 1
Common parts
90159-50152
90159-50228
90159-60008
90159-60241
90159-60313
90167-45002
90168-40079
90179-06025
90179-06109
90183-04035
90183-08004
90189-04022
90189-06006
90202-09003
90202-09006
90467-07082
90467-10081
93540-74012
Linked diagrams
6401

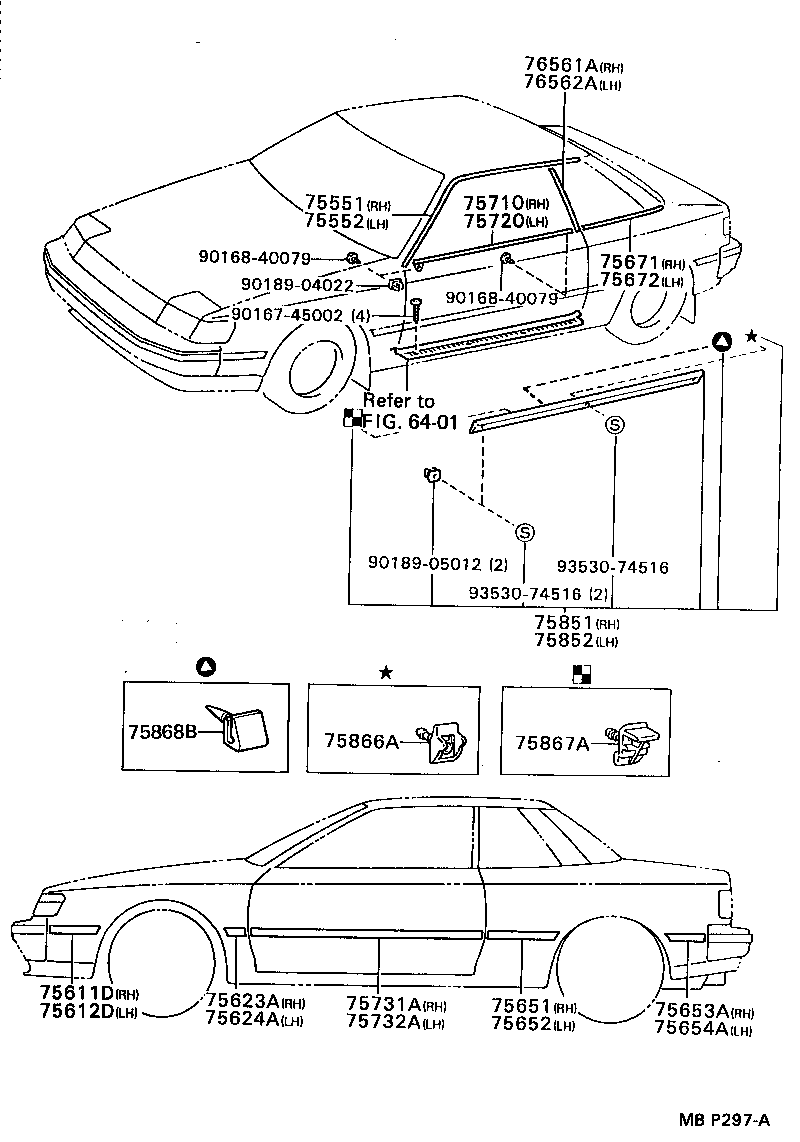

(8708- )CP,CVT

Click highlighted areas on diagram

diagram 6401 75551 75552 75611D 75612D 75623A 75624A 75651 75652 75653A 75654A 75671 75672 75710 75720 75731A 75732A 75851 75852 75866A 75867A 75868B 76561A 76562A 9016745002 9016840079 9016840079 9018904022 9018905012 9353074516 9353074516
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-20260

ST162..CP

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-20260

ST162..CP

 1
75611D - MOULDING, FRONT FENDER, OUTSIDE FRONT RH
75611-20210

ST162

 1
75612D - MOULDING, FRONT FENDER, OUTSIDE FRONT LH
75612-20180

ST162

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-20070

ST162

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-20070

ST162

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-20200

ST162

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-20190

ST162

 1
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-20170

ST162..CP,CVT

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75654-20160

ST162..CP,CVT

 1
75671 - MOULDING, QUARTER BELT, RH
75671-20030

ST162..CP

 1
75672 - MOULDING, QUARTER BELT, LH
75672-20030

ST162..CP

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-20280

ST16#..CP,LB

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-20280

ST16#..CP,LB

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-20220

ST162

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-20220

ST162

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-29175

ST162..(CP,LB)..(GT,ST)

 1
75852 - MOULDING, ROCKER PANEL, LH
75850-29175

ST162..(CP,LB)..(GT,ST)

 1
75866A - RETAINER, ROCKER PANEL MOULDING
75866-20020

ST162..(CP,LB)..(GT,ST)

 2
75867A - CLIP, ROCKER PANEL MOULDING
75867-20050

ST162..(CP,LB)..(GT,ST)

 4
76561A - MOULDING, CENTER PILLAR, RH
76561-20010

ST16#..CP,LB

 1
76562A - MOULDING, CENTER PILLAR, LH
76562-20010

ST16#..CP,LB

 1
Common parts
90167-45002
90168-40079
90189-04022
90189-05012
93530-74516
Linked diagrams
6401
