ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

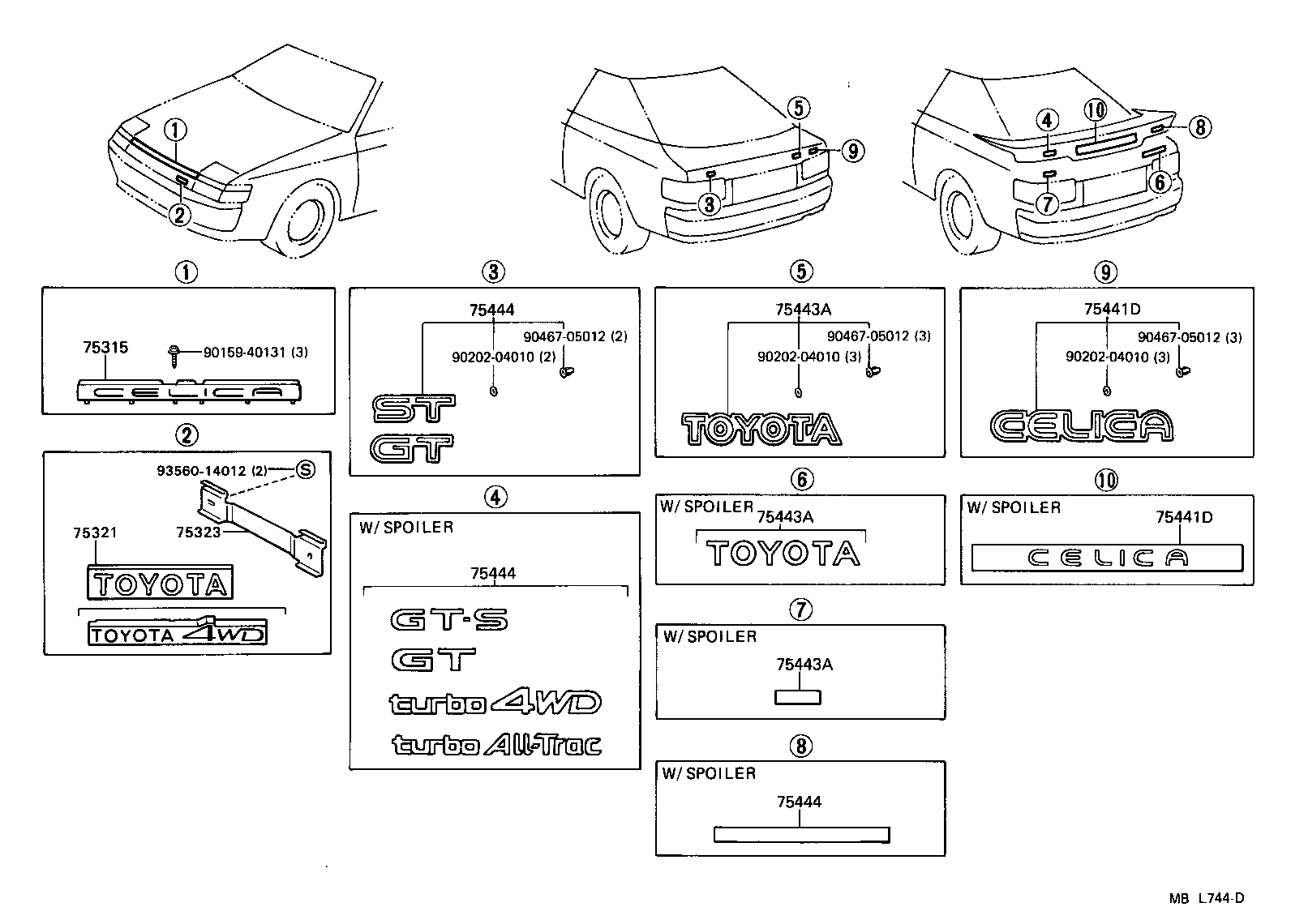

Click highlighted areas on diagram

diagram 75315 75321 75323 75441D 75441D 75443A 75443A 75443A 75444 75444 75444 9015940131 9020204010 9020204010 9020204010 9046705012 9046705012 9046705012 9356014012
Part # Description Qty Price
75315 - ORNAMENT, RADIATOR GRILLE
75315-20070

ST16#

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-20450

ST16#..GT,GTS,ST,TBOAT

TOYOTA

 1
75323 - RETAINER, RADIATOR GRILLE
75324-20120

ST16#..GT,GTS,ST,TBOAT

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-20220

ST162..GT,ST

CELICA

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-20220

ST162..GT,ST

CELICA

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-20130

ST162..GT,ST

TOYOTA

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-20130

ST162..GT,ST

TOYOTA

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-20130

ST162..GT,ST

TOYOTA

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-20250

ST162..GT

GT

 1
75444-20230

ST162..ST

ST

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-20250

ST162..GT

GT

 1
75444-20230

ST162..ST

ST

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-20250

ST162..GT

GT

 1
75444-20230

ST162..ST

ST

 1
Common parts
90159-40131
90202-04010
90467-05012
93560-14012
