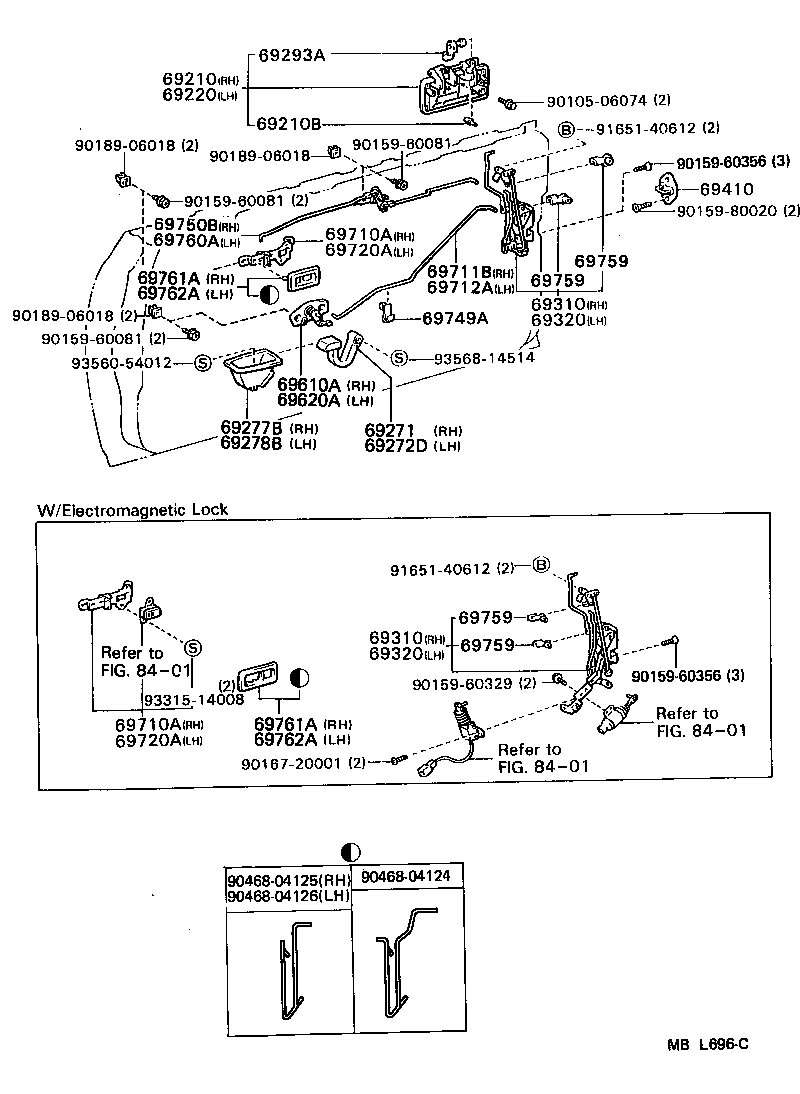

ST162L-BCPVKK (1987)
Toyota Celica
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-20140 |
ST16# |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
ST16# |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-20140 |
ST16# |
1 | ||
| 69271 - HANDLE, FRONT DOOR INSIDE, RH | ||||
| 69271-2009005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 69271-2009004 |
ST16#..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 69271-2009002 |
ST16#..CP,LB RED,TRIM3# |
1 | ||
| 69271-2009001 |
ST16# NEW BLACK,TRIM2# |
1 | ||
| 69272D - HANDLE, FRONT DOOR INSIDE, LH | ||||
| 69272-2006001 |
ST16# NEW BLACK,TRIM2# |
1 | ||
| 69272-2006002 |
ST16#..CP,LB RED,TRIM3# |
1 | ||
| 69272-2006004 |
ST16#..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 69272-2006005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-2003001 |
ST16# BLACK,TRIM2# |
1 | ||
| 69277-2003002 |
ST16#..CP,LB RED,TRIM3# |
1 | ||
| 69277-2003004 |
ST16#..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 69277-2003005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-2003004 |
ST16#..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 69278-2003002 |
ST16#..CP,LB RED,TRIM3# |
1 | ||
| 69278-2003005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 69278-2003001 |
ST16# BLACK,TRIM2# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
ST16# RH |
1 | ||
| 69293-12040 |
ST16# LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-20420 |
ST162 |
1 | ||
| 69310-20410 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK) |
1 | ||
| 69310-20410 |
ST162..GT,GTS W(ELECTROMAGNETIC LOCK) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-20420 |
ST162 |
1 | ||
| 69310-20410 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK) |
1 | ||
| 69310-20410 |
ST162..GT,GTS W(ELECTROMAGNETIC LOCK) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-20420 |
ST162 |
1 | ||
| 69320-20410 |
ST162..GT,GTS W(ELECTROMAGNETIC LOCK) |
1 | ||
| 69320-20410 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-20420 |
ST162 |
1 | ||
| 69320-20410 |
ST162..GT,GTS W(ELECTROMAGNETIC LOCK) |
1 | ||
| 69320-20410 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-12050 |
ST16# |
2 | ||
| 69610A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, RH | ||||
| 69610-20090 |
ST16# |
1 | ||
| 69620A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, LH | ||||
| 69620-20060 |
ST16# |
1 | ||
| 69710A - LEVER ASSY, FRONT DOOR LOCK CONTROL, RH | ||||
| 69710-2005001 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),NEW BLACK,TRIM2# |
1 | ||
| 69710-2005004 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8# |
1 | ||
| 69710-2005002 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),RED,TRIM3# |
1 | ||
| 69710-2005001 |
ST162..GT,GTS W(ELECTROMAGNETIC LOCK),NEW BLACK,TRIM2# |
1 | ||
| 69710-2006004 |
ST162..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 69710-2006002 |
ST162..CP,LB RED,TRIM3# |
1 | ||
| 69710-2006005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 69710-2006001 |
ST162 NEW BLACK,TRIM2# |
1 | ||
| 69710-2005005 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4# |
1 | ||
| 69710A - LEVER ASSY, FRONT DOOR LOCK CONTROL, RH | ||||
| 69710-2005001 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),NEW BLACK,TRIM2# |
1 | ||
| 69710-2005004 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8# |
1 | ||
| 69710-2005002 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),RED,TRIM3# |
1 | ||
| 69710-2005001 |
ST162..GT,GTS W(ELECTROMAGNETIC LOCK),NEW BLACK,TRIM2# |
1 | ||
| 69710-2006004 |
ST162..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 69710-2006002 |
ST162..CP,LB RED,TRIM3# |
1 | ||
| 69710-2006005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 69710-2006001 |
ST162 NEW BLACK,TRIM2# |
1 | ||
| 69710-2005005 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4# |
1 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-20100 |
ST16# |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-20100 |
ST16# |
1 | ||
| 69720A - LEVER ASSY, FRONT DOOR LOCK CONTROL, LH | ||||
| 69720-2005001 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),NEW BLACK,TRIM2# |
1 | ||
| 69720-2005002 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),RED,TRIM3# |
1 | ||
| 69720-2005004 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8# |
1 | ||
| 69720-2005005 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4# |
1 | ||
| 69720-2006002 |
ST162..CP,LB RED,TRIM3# |
1 | ||
| 69720-2006005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 69720-2006004 |
ST162..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 69720-2005001 |
ST162..GT,GTS W(ELECTROMAGNETIC LOCK),NEW BLACK,TRIM2# |
1 | ||
| 69720-2006001 |
ST162 NEW BLACK,TRIM2# |
1 | ||
| 69720A - LEVER ASSY, FRONT DOOR LOCK CONTROL, LH | ||||
| 69720-2005001 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),NEW BLACK,TRIM2# |
1 | ||
| 69720-2005002 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),RED,TRIM3# |
1 | ||
| 69720-2005004 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8# |
1 | ||
| 69720-2005005 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4# |
1 | ||
| 69720-2006002 |
ST162..CP,LB RED,TRIM3# |
1 | ||
| 69720-2006005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 69720-2006004 |
ST162..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 69720-2005001 |
ST162..GT,GTS W(ELECTROMAGNETIC LOCK),NEW BLACK,TRIM2# |
1 | ||
| 69720-2006001 |
ST162 NEW BLACK,TRIM2# |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20020 |
ST16# |
2 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-20010 |
ST16# |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20190 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-24060 |
ST16# LOCKING LINK,LH |
1 | ||
| 69759-24050 |
ST16# LOCKING LINK,RH |
1 | ||
| 69759-20200 |
ST16# OPEN LINK,LH |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20190 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-24060 |
ST16# LOCKING LINK,LH |
1 | ||
| 69759-24050 |
ST16# LOCKING LINK,RH |
1 | ||
| 69759-20200 |
ST16# OPEN LINK,LH |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20190 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-24060 |
ST16# LOCKING LINK,LH |
1 | ||
| 69759-24050 |
ST16# LOCKING LINK,RH |
1 | ||
| 69759-20200 |
ST16# OPEN LINK,LH |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20190 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-24060 |
ST16# LOCKING LINK,LH |
1 | ||
| 69759-24050 |
ST16# LOCKING LINK,RH |
1 | ||
| 69759-20200 |
ST16# OPEN LINK,LH |
1 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-20010 |
ST16# |
1 | ||
| 69761A - BEZEL, DOOR LOCK CONTROL KNOB, RH | ||||
| 69761-1401001 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOOK),NEW BLACK,TRIM2# |
1 | ||
| 69761-1401005 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4# |
1 | ||
| 69761-1402001 |
ST162 BLACK,TRIM2# |
1 | ||
| 69761-1401002 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),RED,TRIM3# |
1 | ||
| 69761-1402005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 69761-1402002 |
ST162..CP,LB RED,TRIM3# |
1 | ||
| 69761-1402004 |
ST162..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 69761-1401001 |
ST162..GT,GTS W(ELECTROMAGNETIC LOOK),NEW BLACK,TRIM2# |
1 | ||
| 69761-1401004 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8# |
1 | ||
| 69761A - BEZEL, DOOR LOCK CONTROL KNOB, RH | ||||
| 69761-1401001 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOOK),NEW BLACK,TRIM2# |
1 | ||
| 69761-1401005 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4# |
1 | ||
| 69761-1402001 |
ST162 BLACK,TRIM2# |
1 | ||
| 69761-1401002 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),RED,TRIM3# |
1 | ||
| 69761-1402005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 69761-1402002 |
ST162..CP,LB RED,TRIM3# |
1 | ||
| 69761-1402004 |
ST162..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 69761-1401001 |
ST162..GT,GTS W(ELECTROMAGNETIC LOOK),NEW BLACK,TRIM2# |
1 | ||
| 69761-1401004 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8# |
1 | ||
| 69762A - BEZEL, DOOR LOCK CONTROL KNOB, LH | ||||
| 69762-1401001 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOOK),NEW BLACK,TRIM2# |
1 | ||
| 69762-1402004 |
ST162..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 69762-1401004 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8# |
1 | ||
| 69762-1401005 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4# |
1 | ||
| 69762-1401002 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),RED,TRIM3# |
1 | ||
| 69762-1402005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 69762-1402001 |
ST162 BLACK,TRIM2# |
1 | ||
| 69762-1401001 |
ST162..GT,GTS W(ELECTROMAGNETIC LOOK),NEW BLACK,TRIM2# |
1 | ||
| 69762-1402002 |
ST162..CP,LB RED,TRIM3# |
1 | ||
| 69762A - BEZEL, DOOR LOCK CONTROL KNOB, LH | ||||
| 69762-1401001 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOOK),NEW BLACK,TRIM2# |
1 | ||
| 69762-1402004 |
ST162..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 69762-1401004 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DEEP BLUE,TRIM8# |
1 | ||
| 69762-1401005 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),DARK BEIGE,TRIM4# |
1 | ||
| 69762-1401002 |
ST162..(CP,LB)..(GT,GTS) W(ELECTROMAGNETIC LOCK),RED,TRIM3# |
1 | ||
| 69762-1402005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 69762-1402001 |
ST162 BLACK,TRIM2# |
1 | ||
| 69762-1401001 |
ST162..GT,GTS W(ELECTROMAGNETIC LOOK),NEW BLACK,TRIM2# |
1 | ||
| 69762-1402002 |
ST162..CP,LB RED,TRIM3# |
1 | ||
| Common parts | ||||
| 90105-06074 | ||||
| 90159-60081 | ||||
| 90159-60329 | ||||
| 90159-60356 | ||||
| 90159-80020 | ||||
| 90167-20001 | ||||
| 90189-06018 | ||||
| 90468-04124 | ||||
| 90468-04125 | ||||
| 90468-04126 | ||||
| 91651-40612 | ||||
| 93315-14008 | ||||
| 93560-54012 | ||||
| 93568-14514 | ||||
| Linked diagrams | ||||
| 8401 | ||||
