ST162L-BCPVKK (1987)
Toyota Celica
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2B23105 |
ST162..(CP,LB)..GT DARK BEIGE,TRIM4# |
1 | ||
| 67650-2B24102 |
ST162..(CP,LB)..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67650-2B24105 |
ST162..(CP,LB)..GT W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67650-2B23102 |
ST162..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 67650-2B24104 |
ST162..(CP,LB)..GT W(POWER WINDOW),DEEP BLUE,TRIM8# |
1 | ||
| 67650-2B24101 |
ST162..(CP,LB)..GT W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67650-2B23104 |
ST162..(CP,LB)..GT DEEP BLUE,TRIM8# |
1 | ||
| 67610-2B71101 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 67610-2B71104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 67650-2B23101 |
ST162..(CP,LB)..GT BLACK,TRIM2# |
1 | ||
| 67610-2D27004 |
ST162..(CP,LB)..GT DEEP BLUE,TRIM8# |
1 | ||
| 67610-2D27005 |
ST162..(CP,LB)..GT DARK BEIGE,TRIM4# |
1 | ||
| 67610-2B71105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 67610-2B71102 |
ST162..ST RED,TRIM3# |
1 | ||
| 67610-2D27001 |
ST162..(CP,LB)..GT BLACK,TRIM2# |
1 | ||
| 67610-2D27002 |
ST162..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 67650-2B24205 |
ST162..(CP,LB)..GT W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67650-2B24204 |
ST162..(CP,LB)..GT W(POWER WINDOW),DEEP BLUE,TRIM8# |
1 | ||
| 67650-2B24201 |
ST162..(CP,LB)..GT W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67650-2B24202 |
ST162..(CP,LB)..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2B23105 |
ST162..(CP,LB)..GT DARK BEIGE,TRIM4# |
1 | ||
| 67650-2B24102 |
ST162..(CP,LB)..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67650-2B24105 |
ST162..(CP,LB)..GT W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67650-2B23102 |
ST162..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 67650-2B24104 |
ST162..(CP,LB)..GT W(POWER WINDOW),DEEP BLUE,TRIM8# |
1 | ||
| 67650-2B24101 |
ST162..(CP,LB)..GT W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67650-2B23104 |
ST162..(CP,LB)..GT DEEP BLUE,TRIM8# |
1 | ||
| 67610-2B71101 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 67610-2B71104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 67650-2B23101 |
ST162..(CP,LB)..GT BLACK,TRIM2# |
1 | ||
| 67610-2D27004 |
ST162..(CP,LB)..GT DEEP BLUE,TRIM8# |
1 | ||
| 67610-2D27005 |
ST162..(CP,LB)..GT DARK BEIGE,TRIM4# |
1 | ||
| 67610-2B71105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 67610-2B71102 |
ST162..ST RED,TRIM3# |
1 | ||
| 67610-2D27001 |
ST162..(CP,LB)..GT BLACK,TRIM2# |
1 | ||
| 67610-2D27002 |
ST162..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 67650-2B24205 |
ST162..(CP,LB)..GT W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67650-2B24204 |
ST162..(CP,LB)..GT W(POWER WINDOW),DEEP BLUE,TRIM8# |
1 | ||
| 67650-2B24201 |
ST162..(CP,LB)..GT W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67650-2B24202 |
ST162..(CP,LB)..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
ST16# |
11 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
ST16# |
11 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2D57101 |
ST162..(CP,LB)..GT BLACK,TRIM2# |
1 | ||
| 67620-2D57105 |
ST162..(CP,LB)..GT DARK BEIGE,TRIM4# |
1 | ||
| 67620-2D57102 |
ST162..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 67620-2D58104 |
ST162..(CP,LB)..GT W(POWER WINDOW),DEEP BLUE,TRIM8# |
1 | ||
| 67620-2D58105 |
ST162..(CP,LB)..GT W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67620-2D58102 |
ST162..(CP,LB)..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67620-2D20104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 67620-2D58101 |
ST162..(CP,LB)..GT W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67620-2D20102 |
ST162..ST RED,TRIM3# |
1 | ||
| 67620-2D20101 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 67620-2D20105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 67620-2D57104 |
ST162..(CP,LB)..GT DEEP BLUE,TRIM8# |
1 | ||
| 67620-2G47001 |
ST162..(CP,LB)..GT BLACK,TRIM2# |
1 | ||
| 67620-2G47002 |
ST162..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 67620-2G48002 |
ST162..(CP,LB)..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67620-2G47004 |
ST162..(CP,LB)..GT DEEP BLUE,TRIM8# |
1 | ||
| 67620-2G48001 |
ST162..(CP,LB)..GT W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67620-2G48004 |
ST162..(CP,LB)..GT W(POWER WINDOW),DEEP BLUE,TRIM8# |
1 | ||
| 67620-2G48005 |
ST162..(CP,LB)..GT W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67620-2G47005 |
ST162..(CP,LB)..GT DARK BEIGE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2D57101 |
ST162..(CP,LB)..GT BLACK,TRIM2# |
1 | ||
| 67620-2D57105 |
ST162..(CP,LB)..GT DARK BEIGE,TRIM4# |
1 | ||
| 67620-2D57102 |
ST162..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 67620-2D58104 |
ST162..(CP,LB)..GT W(POWER WINDOW),DEEP BLUE,TRIM8# |
1 | ||
| 67620-2D58105 |
ST162..(CP,LB)..GT W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67620-2D58102 |
ST162..(CP,LB)..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67620-2D20104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 67620-2D58101 |
ST162..(CP,LB)..GT W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67620-2D20102 |
ST162..ST RED,TRIM3# |
1 | ||
| 67620-2D20101 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 67620-2D20105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 67620-2D57104 |
ST162..(CP,LB)..GT DEEP BLUE,TRIM8# |
1 | ||
| 67620-2G47001 |
ST162..(CP,LB)..GT BLACK,TRIM2# |
1 | ||
| 67620-2G47002 |
ST162..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 67620-2G48002 |
ST162..(CP,LB)..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67620-2G47004 |
ST162..(CP,LB)..GT DEEP BLUE,TRIM8# |
1 | ||
| 67620-2G48001 |
ST162..(CP,LB)..GT W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67620-2G48004 |
ST162..(CP,LB)..GT W(POWER WINDOW),DEEP BLUE,TRIM8# |
1 | ||
| 67620-2G48005 |
ST162..(CP,LB)..GT W(POWER WINDOW),DARK BEIGE,TRIM4# |
1 | ||
| 67620-2G47005 |
ST162..(CP,LB)..GT DARK BEIGE,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2005105 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 67770-2005102 |
ST16#..CP,LB RED,TRIM3# |
1 | ||
| 67770-2005104 |
ST16#..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 67770-2005101 |
ST16# BLACK,TRIM2# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2005105 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 67770-2005102 |
ST16#..CP,LB RED,TRIM3# |
1 | ||
| 67770-2005104 |
ST16#..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 67770-2005101 |
ST16# BLACK,TRIM2# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2002101 |
ST16# BLACK,TRIM2# |
1 | ||
| 67780-2002102 |
ST16#..CP,LB RED,TRIM3# |
1 | ||
| 67780-2002105 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 67780-2002104 |
ST16#..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2002101 |
ST16# BLACK,TRIM2# |
1 | ||
| 67780-2002102 |
ST16#..CP,LB RED,TRIM3# |
1 | ||
| 67780-2002105 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 67780-2002104 |
ST16#..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20240 |
ST16# LH |
1 | ||
| 68170-20310 |
ST16# RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-20240 |
ST16# LH |
1 | ||
| 68170-20310 |
ST16# RH |
1 | ||
| Common parts | ||||
| 90149-60057 | ||||
| 90164-60014 | ||||
| 90168-40076 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||

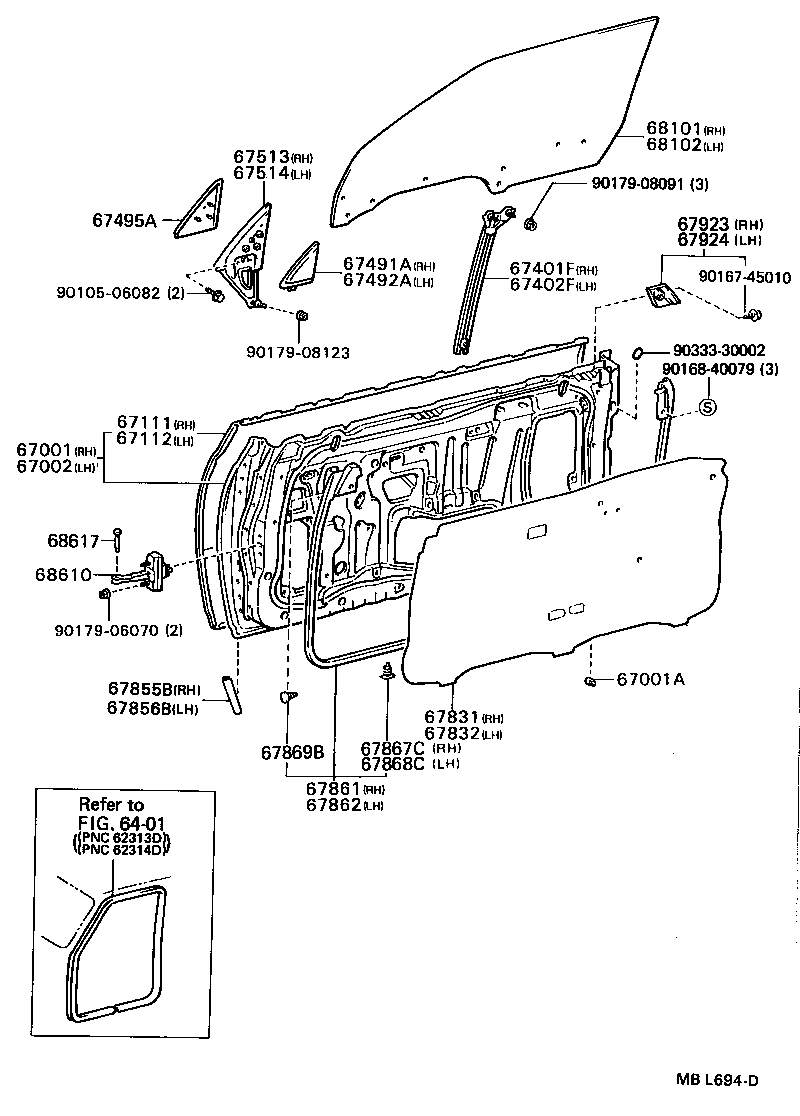

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20660 |
ST162 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
ST16# |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-20630 |
ST162 |
1 | ||
| 67002-20631 |
ST162 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-20160 |
ST162 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-20180 |
ST162 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-20160 |
ST16# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-20150 |
ST16# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20121 |
ST16# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20141 |
ST16# |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-20060 |
ST162..ST |
1 | ||
| 67513 - BRACKET, FRONT DOOR MIRROR, RH | ||||
| 67513-20051 |
ST162..ST |
1 | ||
| 67513-20071 |
ST16#..GT,GTS,TBO4W,TBOAT |
1 | ||
| 67513-20071 |
ST162..ST W(DOOR MIRROR) |
1 | ||
| 67514 - BRACKET, FRONT DOOR MIRROR, LH | ||||
| 67514-20071 |
ST16# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-20310 |
ST16# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-20140 |
ST16# |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-20020 |
ST162 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67855-20020 |
ST162 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-20250 |
ST16#..CP,LB |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-20250 |
ST16#..CP,LB |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-30040 |
ST16#..CP,LB |
21 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-30040 |
ST16#..CP,LB |
21 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-30020 |
ST16# |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-20400 |
ST16# *TT,T=5.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-20320 |
ST16# *TT,T=5.0 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-20050 |
ST16# |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90K00 |
ST16# |
2 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90167-45010 | ||||
| 90168-40079 | ||||
| 90179-06070 | ||||
| 90179-08091 | ||||
| 90179-08123 | ||||
| 90333-30002 | ||||
| Linked diagrams | ||||
| 6401 | ||||
