ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CP

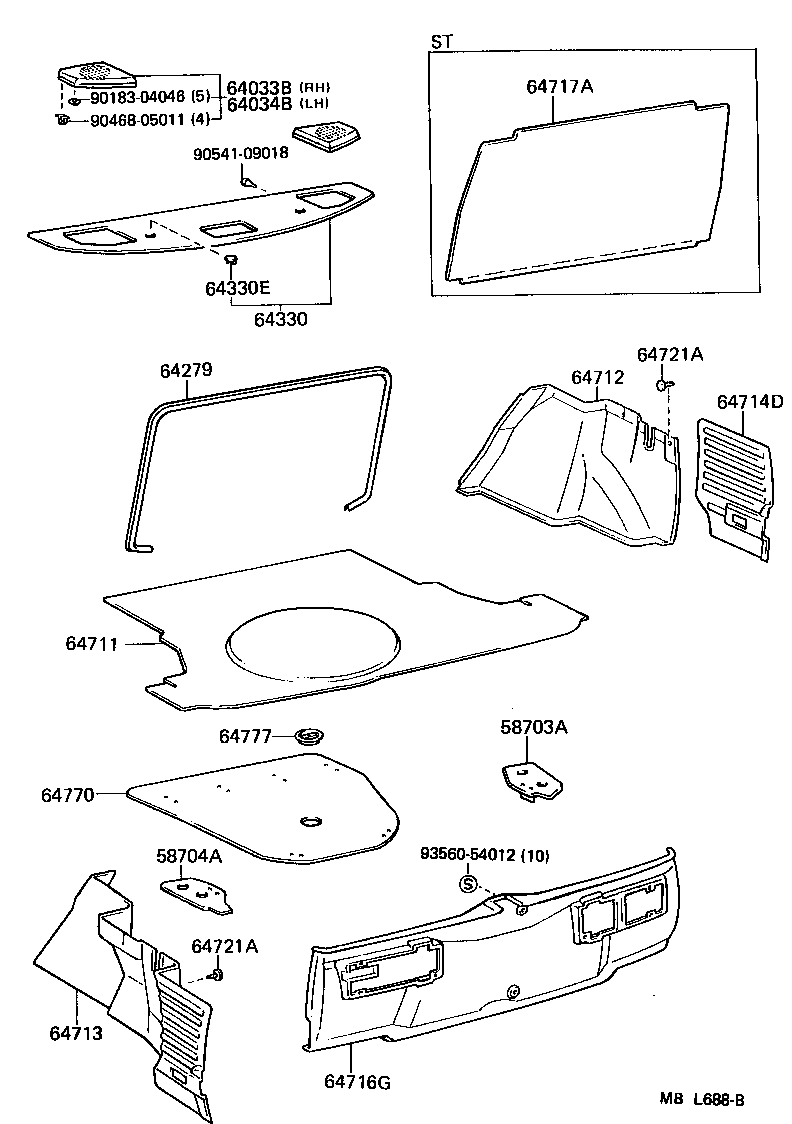

Click highlighted areas on diagram

diagram 58703A 58704A 64033B 64034B 64279 64330 64330E 64711 64712 64713 64714D 64716G 64717A 64721A 64721A 64770 64777 9018304046 9046805011 9054109018 9356054012
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-20080

ST162..CP

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-20040

ST162..CP

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-2002001

ST162..CP

BLACK,TRIM2#

 1
64033-2002005

ST162..CP

DARK BEIGE,TRIM4#

 1
64033-2002004

ST162..CP

DEEP BLUE,TRIM8#

 1
64033-2002002

ST162..CP

RED,TRIM3#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64034-2002002

ST162..CP

RED,TRIM3#

 1
64034-2002004

ST162..CP

DEEP BLUE,TRIM8#

 1
64034-2002005

ST162..CP

DARK BEIGE,TRIM4#

 1
64034-2002001

ST162..CP

BLACK,TRIM2#

 1
64279 - PROTECTOR, ROOM PARTITION
64279-2003004

ST162..CP..(GT,GTS)

DEEP BLUE,TRIM8#

 1
64279-2003001

ST162..CP..(GT,GTS)

BLACK,TRIM2#

 1
64279-2003002

ST162..CP..(GT,GTS)

RED,TRIM3#

 1
64279-2003005

ST162..CP..(GT,GTS)

DARK BEIGE,TRIM4#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2069004

ST162..ST

DEEP BLUE,TRIM8#

 1
64330-2071004

ST162..CP..(GT,GTS)

DEEP BLUE,TRIM8#

 1
64330-2071002

ST162..CP..(GT,GTS)

RED,TRIM3#

 1
64330-2069002

ST162..ST

RED,TRIM3#

 1
64330-2071005

ST162..CP..(GT,GTS)

DARK BEIGE,TRIM4#

 1
64330-2071001

ST162..CP..(GT,GTS)

BLACK,TRIM2#

 1
64330-2069005

ST162..ST

DARK BEIGE,TRIM4#

 1
64330-2069001

ST162..ST

BLACK,TRIM2#

 1
64330E - PLUG(FOR PACKAGE TRAY TRIM PANEL)
90950-0143614

ST162..CP

DEEP BLUE,TRIM8#

 2
90950-0143601

ST162..CP

BLACK,TRIM2#

 2
90950-0143622

ST162..CP

RED,TRIM3#

 2
90950-0143625

ST162..CP

DARK BEIGE,TRIM4#

 2
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-20360

ST162..CP..(GT,GTS)

 1
64711-20310

ST162..ST

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-20110

ST162..ST

 1
64712-20120

ST162..CP..(GT,GTS)

 1
64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH
64072-20100

ST162..CP..(GT,GTS)

 1
64072-20090

ST162..ST

 1
64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64714-20210

ST162..CP..(GT,GTS)

 1
64714-20200

ST162..ST

 1
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-20150

ST162..ST

 1
64716-2015103

ST162..ST

GRAY,TRIM2#,3#,4#,8#

 1
64716-2017103

ST162..CP..(GT,GTS)

GRAY,TRIM2#,3#,4#,8#

 1
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-20130

ST162..ST

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0704203

ST162..CP

GRAY,TRIM2#,3#,4#,8#

 2
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0704203

ST162..CP

GRAY,TRIM2#,3#,4#,8#

 2
64770 - COVER ASSY, SPARE WHEEL
64770-20090

ST162..(CP,CVT)..(GT,GTS)

 1
64770-20090

ST162..ST..CND

W(ALUMINUM WHEEL)

 1
64770-20090

ST162..ST

W(ALUMINUM WHEEL)

 1
64770-20080

ST162..ST

 1
64777 - CLAMP, SPARE WHEEL COVER
64777-32030

ST162..ST

 1
Common parts
90183-04046
90468-05011
90541-09018
93560-54012
