ST162L-BCPVKK (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )CP,CVT

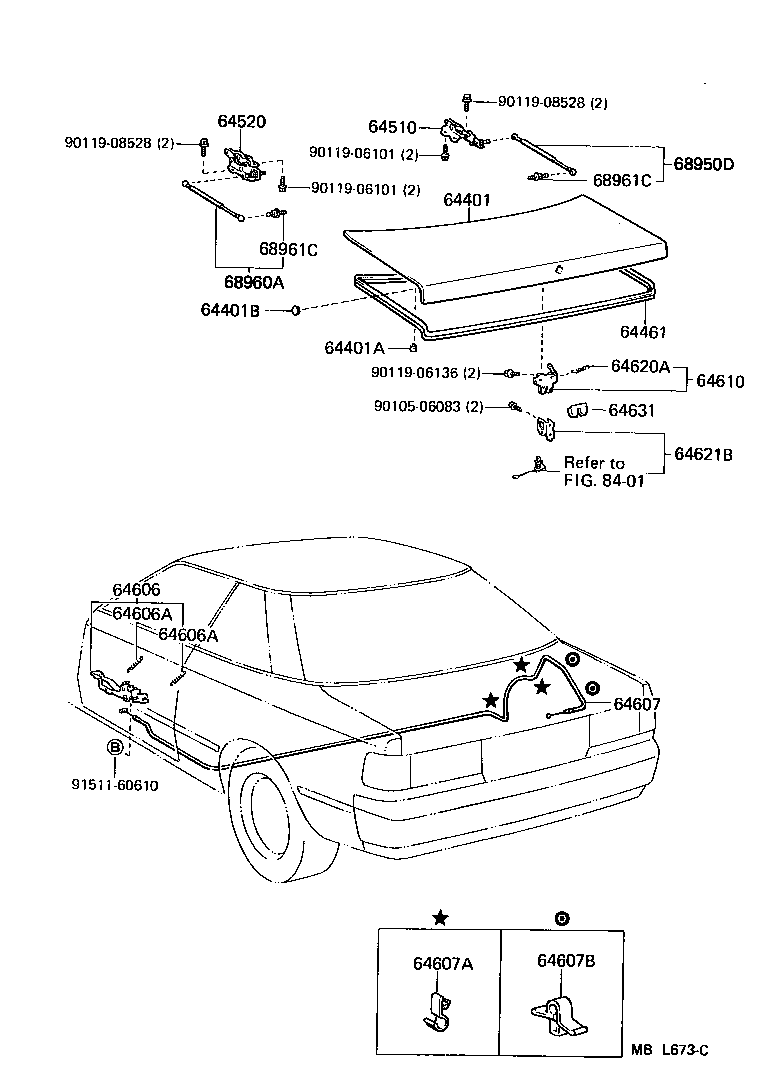

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-2B220 |
ST162..CP..(GT,ST) |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09043 |
ST162..CP,CVT |
2 | ||
| 64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90950-01150 |
ST162..CP,CVT |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-20230 |
ST162..CP,CVT |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-20120 |
ST162..CP,CVT |
1 | ||
| 64510-20121 |
ST162..CP,CVT |
1 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-20110 |
ST162..CP,CVT |
1 | ||
| 64520-20111 |
ST162..CP,CVT |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-20060 |
ST162..CP,CVT |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
ST162..CP,CVT |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
ST162..CP,CVT |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-20200 |
ST162..CP,CVT |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
ST162..CP,CVT |
3 | ||
| 64607B - CLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90959-01209 |
ST162..CP,CVT |
2 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-20090 |
ST162..CP |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-08001 |
ST162..CP,CVT |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-20040 |
ST162..CP..(GT,GTS) |
1 | ||
| 64621-20050 |
ST162..ST |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-12010 |
ST162..CP,CVT |
1 | ||
| 68950D - STAY ASSY, LUGGAGE DOOR, RH | ||||
| 68950-29415 |
ST162..(CP,CVT)..(GT,ST) |
1 | ||
| 68960A - STAY ASSY, LUGGAGE DOOR, LH | ||||
| 68950-29415 |
ST162..(CP,CVT)..(GT,ST) |
1 | ||
| 68961C - BOLT, LUGGAGE DOOR STAY | ||||
| 68961-20051 |
ST162..CP,CVT |
2 | ||
| 68961C - BOLT, LUGGAGE DOOR STAY | ||||
| 68961-20051 |
ST162..CP,CVT |
2 | ||
| Common parts | ||||
| 90105-06083 | ||||
| 90119-06101 | ||||
| 90119-06136 | ||||
| 90119-08528 | ||||
| 91511-60610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
