ST162L-BCPVKK (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )CP,CVT

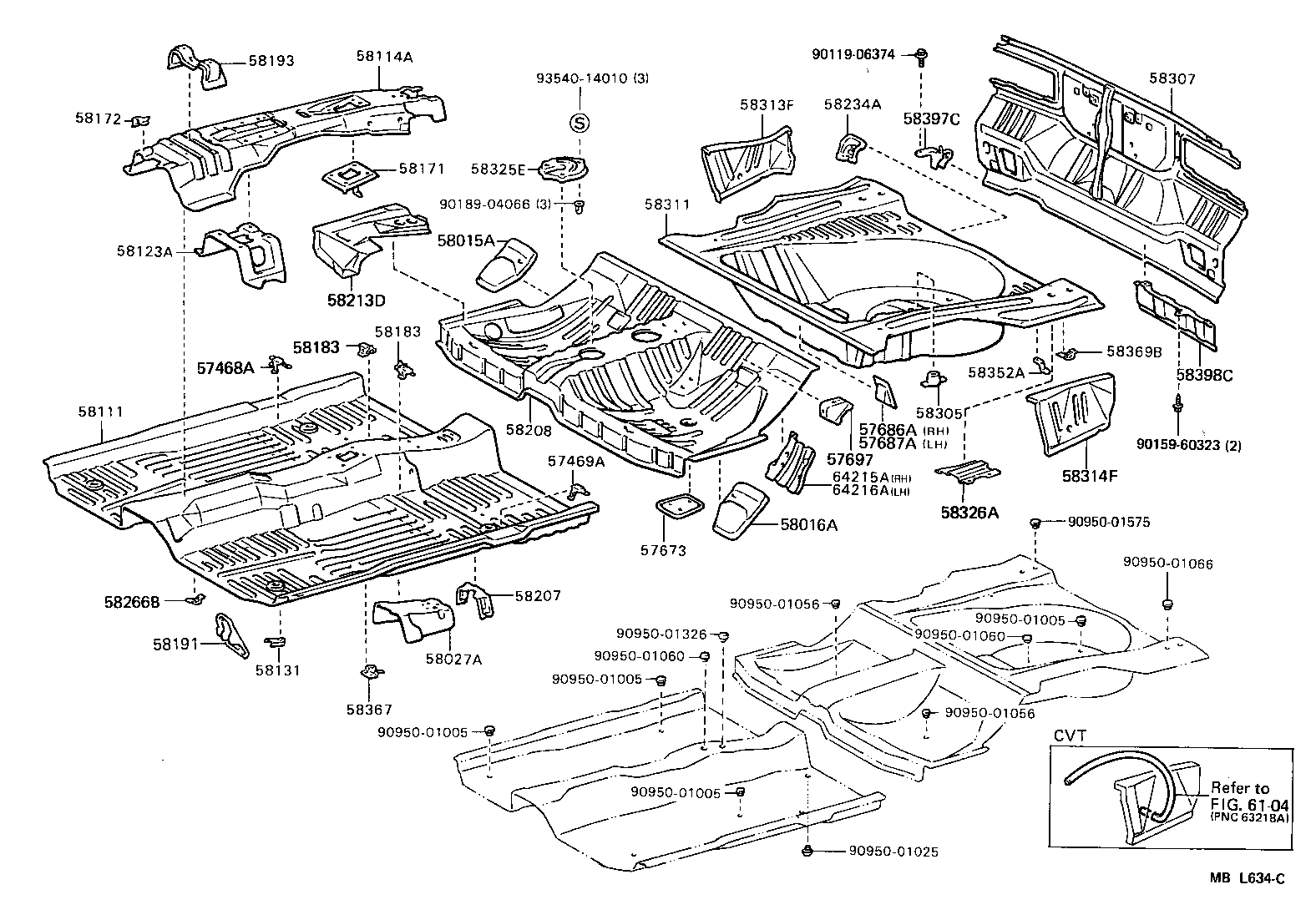

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-20040 |
ST16# |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-20040 |
ST16# |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-20060 |
ST162..GT,GTS |
1 | ||
| 57686A - BRACKET, FUEL TANK MOUNTING, REAR RH | ||||
| 57686-20030 |
ST162 |
1 | ||
| 57687A - BRACKET, FUEL TANK MOUNTING, REAR LH | ||||
| 57686-20030 |
ST162 |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-20010 |
ST162 |
2 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-20031 |
ST162 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-20031 |
ST162 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-20030 |
ST162 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-20100 |
ST162 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-20020 |
ST162 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-20010 |
ST162 |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-20050 |
ST162 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-20050 |
ST162 |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-20020 |
ST162 |
2 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-20050 |
ST162 LH |
1 | ||
| 58183-20050 |
ST162 RH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-20050 |
ST162 LH |
1 | ||
| 58183-20050 |
ST162 RH |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-20010 |
ST16# |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-20040 |
ST162 |
1 | ||
| 58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1 | ||||
| 58207-20080 |
ST162 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-20191 |
ST162 |
1 | ||
| 58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER | ||||
| 58234-20020 |
ST162 |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-22040 |
ST162 |
4 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
ST16# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-20470 |
ST162..CP,CVT |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-20220 |
ST162 |
1 | ||
| 58311-20240 |
ST162..CP,CVT |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-20160 |
ST162..CP,CVT |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-20141 |
ST162..CP,CVT |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-20030 |
ST162 |
1 | ||
| 58352A - BRACKET, REAR FLOOR STAY | ||||
| 58352-20040 |
ST162 |
1 | ||
| 58367 - BRACKET, FUEL TUBE CLAMP | ||||
| 58367-20040 |
ST16# |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-20010 |
ST162 |
4 | ||
| 58369-20010 |
ST162 |
5 | ||
| 58397C - COVER, BODY LOWER BACK, RH | ||||
| 58397-20050 |
ST162 |
1 | ||
| 58398C - COVER, BODY LOWER BACK, LH | ||||
| 58398-20030 |
ST162..CP,CVT |
1 | ||
| 64215A - EXTENSION, REAR FLOOR TO PACKAGE TRAY, RH | ||||
| 64215-20020 |
ST162..CP |
1 | ||
| 64216A - EXTENSION, REAR FLOOR TO PACKAGE TRAY, LH | ||||
| 64216-20030 |
ST162..CP |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90159-60323 | ||||
| 90189-04066 | ||||
| 90950-01005 | ||||
| 90950-01025 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01066 | ||||
| 90950-01326 | ||||
| 90950-01575 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 6104 | ||||
