ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ST162

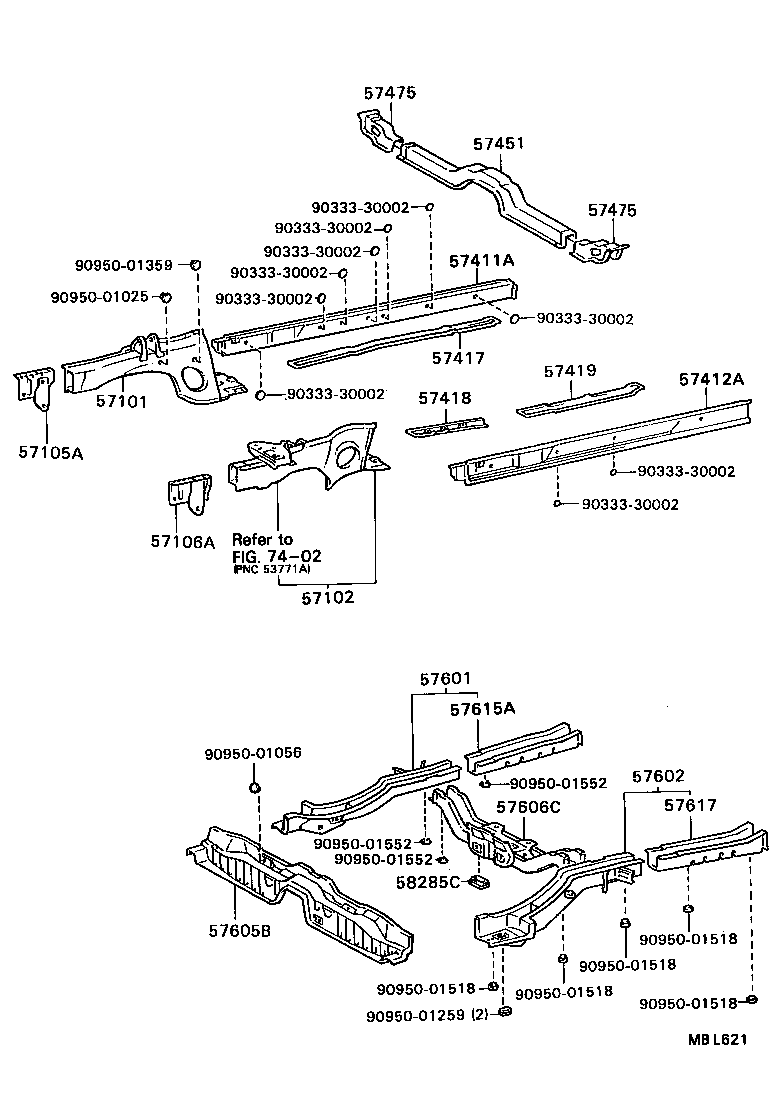

Click highlighted areas on diagram

diagram 57101 57102 57105A 57106A 57411A 57412A 57417 57418 57419 57451 57475 57475 57601 57602 57605B 57606C 57615A 57617 58285C 7402 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9095001025 9095001056 9095001259 9095001359 9095001518 9095001518 9095001518 9095001518 9095001518 9095001552 9095001552 9095001552
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20420

ST162..CP,LB

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20640

ST16#

 1
57102-20640

ST162

 1
57105A - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57105-20040

ST16#

 1
57106A - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57106-20040

ST16#

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-20221

ST16#..CP,LB

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-20221

ST16#..CP,LB

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-20030

ST16#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-20040

ST16#

 1
57419 - REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2
57419-20020

ST16#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-20070

ST162

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57476-20020

ST162

LH

 1
57475-20020

ST162

RH

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57476-20020

ST162

LH

 1
57475-20020

ST162

RH

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20170

ST162

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20170

ST162

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-20060

ST162

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-20080

ST162

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-20904

ST162

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-20904

ST162

 1
58285C - COVER, REAR FLOOR HOLE
58285-20020

ST162

 2
Common parts
90333-30002
90950-01025
90950-01056
90950-01259
90950-01359
90950-01518
90950-01552
Linked diagrams
7402
