ST162L-BCPVKK (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

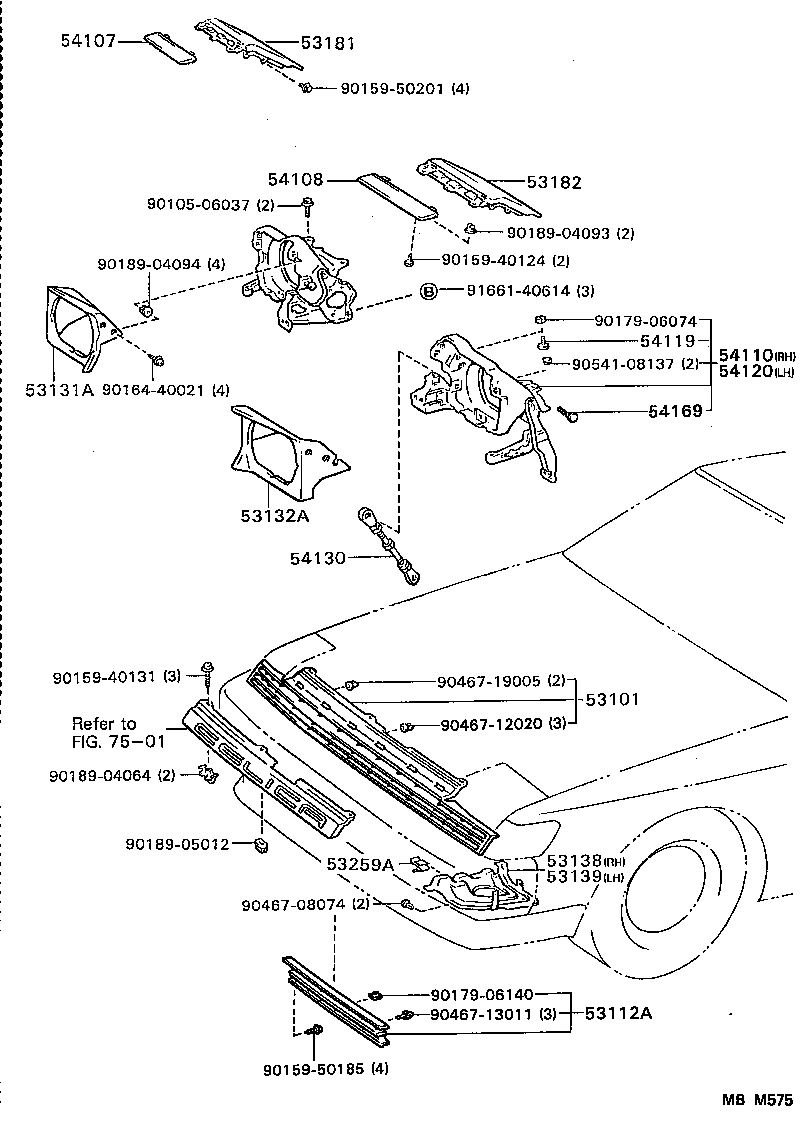

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-20240 |
ST16# |
1 | ||
| 53131A - DOOR, HEADLAMP, RH | ||||
| 53131-20250 |
ST16# |
1 | ||
| 53132A - DOOR, HEADLAMP, LH | ||||
| 53132-20220 |
ST16# |
1 | ||
| 53138 - PROTECTOR, HEADLAMP DOOR, RH | ||||
| 53138-20030 |
ST16# |
1 | ||
| 53139 - PROTECTOR, HEADLAMP DOOR, LH | ||||
| 53139-20030 |
ST16# |
1 | ||
| 53181 - COVER, HEADLAMP, RH | ||||
| 53181-20010 |
ST16# |
1 | ||
| 53182 - COVER, HEADLAMP, LH | ||||
| 53182-20010 |
ST16# |
1 | ||
| 53259A - CLIP, RADIATOR SUPPORT TO FRAME SEAL | ||||
| 53259-20020 |
ST16# |
2 | ||
| 54107 - GARNISH SUB-ASSY, RETRACTABLE HEADLAMP, RH | ||||
| 54107-20011 |
ST16# |
1 | ||
| 54108 - GARNISH SUB-ASSY, RETRACTABLE HEADLAMP, LH | ||||
| 54108-20011 |
ST16# |
1 | ||
| 54110 - BRACKET ASSY, RETRACTABLE HEADLAMP, RH | ||||
| 54110-20012 |
ST16#..CP,LB |
1 | ||
| 54110-20011 |
ST162..CP,LB |
1 | ||
| 54119 - STOP, RETRACTABLE HEADLAMP LINK | ||||
| 54119-14010 |
ST16# |
2 | ||
| 54120 - BRACKET ASSY, RETRACTABLE HEADLAMP, LH | ||||
| 54120-20011 |
ST16#..CP,LB |
1 | ||
| 54130 - ROD ASSY, RETRACTABLE HEADLAMP | ||||
| 54130-20010 |
ST16# |
2 | ||
| 54169 - STOP, RETRACTABLE HEADLAMP LINK DOWN | ||||
| 54169-20010 |
ST16# |
2 | ||
| Common parts | ||||
| 90105-06037 | ||||
| 90159-40124 | ||||
| 90159-40131 | ||||
| 90159-50185 | ||||
| 90159-50201 | ||||
| 90164-40021 | ||||
| 90179-06074 | ||||
| 90179-06140 | ||||
| 90189-04064 | ||||
| 90189-04093 | ||||
| 90189-04094 | ||||
| 90189-05012 | ||||
| 90467-08074 | ||||
| 90467-12020 | ||||
| 90467-13011 | ||||
| 90467-19005 | ||||
| 90541-08137 | ||||
| 91661-40614 | ||||
| Linked diagrams | ||||
| 7501 | ||||
