ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CP,CVT

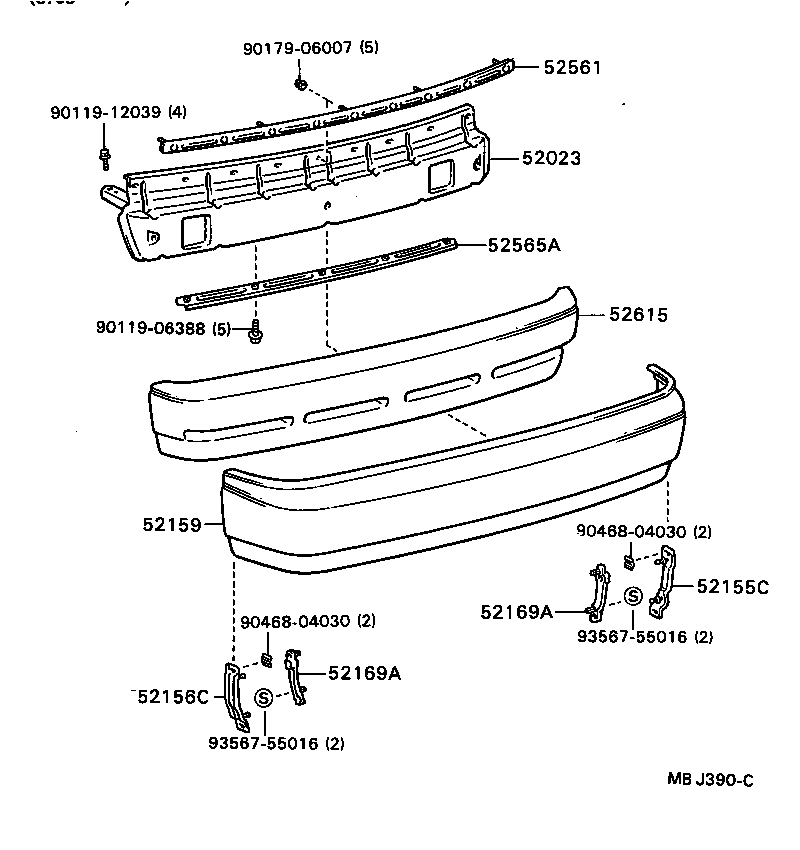

Click highlighted areas on diagram

diagram 52023 52155C 52156C 52159 52169A 52169A 52561 52565A 52615 9011906388 9011912039 9017906007 9046804030 9046804030 9356755016 9356755016
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-20160

ST162..CP,CVT

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-20130

ST162..CP,CVT

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52155-20130

ST162..CP,CVT

 1
52159 - COVER, REAR BUMPER
52159-20909

ST162..CP,CVT

 1
52169A - SUPPORT, REAR BUMPER SIDE, NO.3
52169-20030

ST16#

 2
52169A - SUPPORT, REAR BUMPER SIDE, NO.3
52169-20030

ST16#

 2
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-20090

ST162..CP,CVT

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-20060

ST162..CP,CVT

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-20070

ST162..CP,CVT

 1
Common parts
90119-06388
90119-12039
90179-06007
90468-04030
93567-55016
