ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

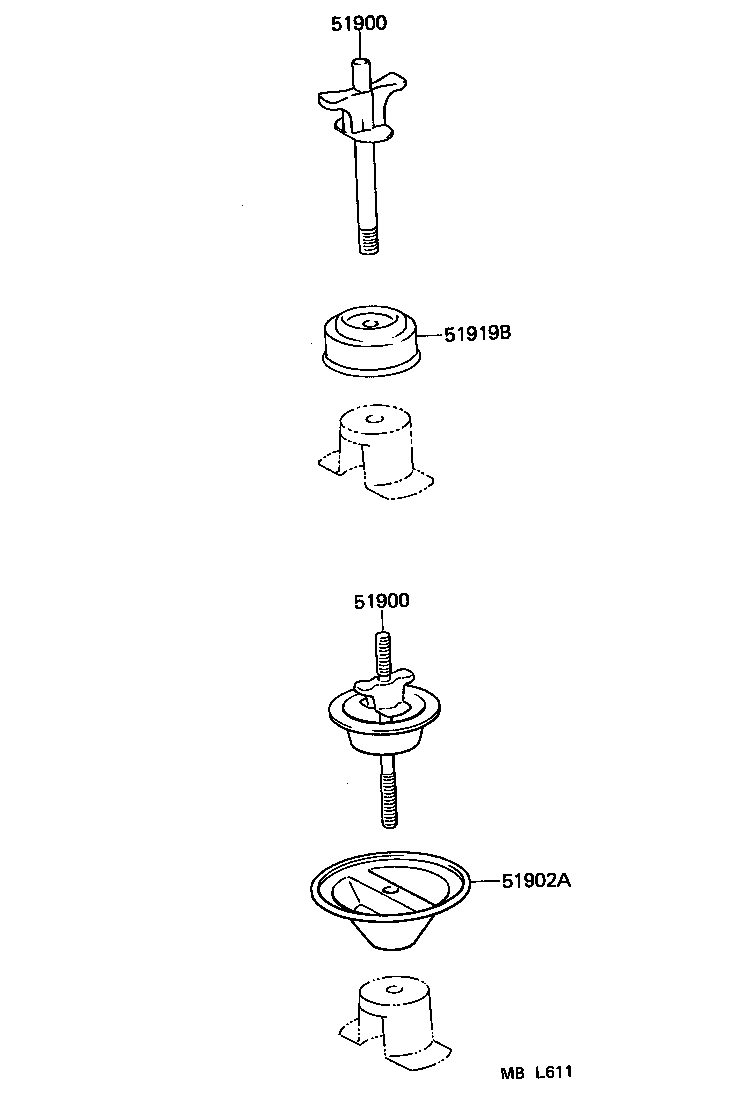

diagram 51900 51900 51902A 51919B
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-32010

ST162..ST

 1
51900-20040

ST162..GT,GTS

 1
51900-20040

ST162..ST..CND

W(ALUMINUM WHEEL)

 1
51900-20040

ST162..ST

W(185/70HR13 TIRE)

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-32010

ST162..ST

 1
51900-20040

ST162..GT,GTS

 1
51900-20040

ST162..ST..CND

W(ALUMINUM WHEEL)

 1
51900-20040

ST162..ST

W(185/70HR13 TIRE)

 1
51902A - COVER SUB-ASSY, SPARE WHEEL
51902-20010

ST162..ST

 1
51902-20010

ST162..ST..CND

 1
51902-20010

ST16#..GT,GTS,TBO4W,TBOAT

 1
51919B - SPACER, SPARE WHEEL CARRIER
51919-32010

ST162..ST

 1
