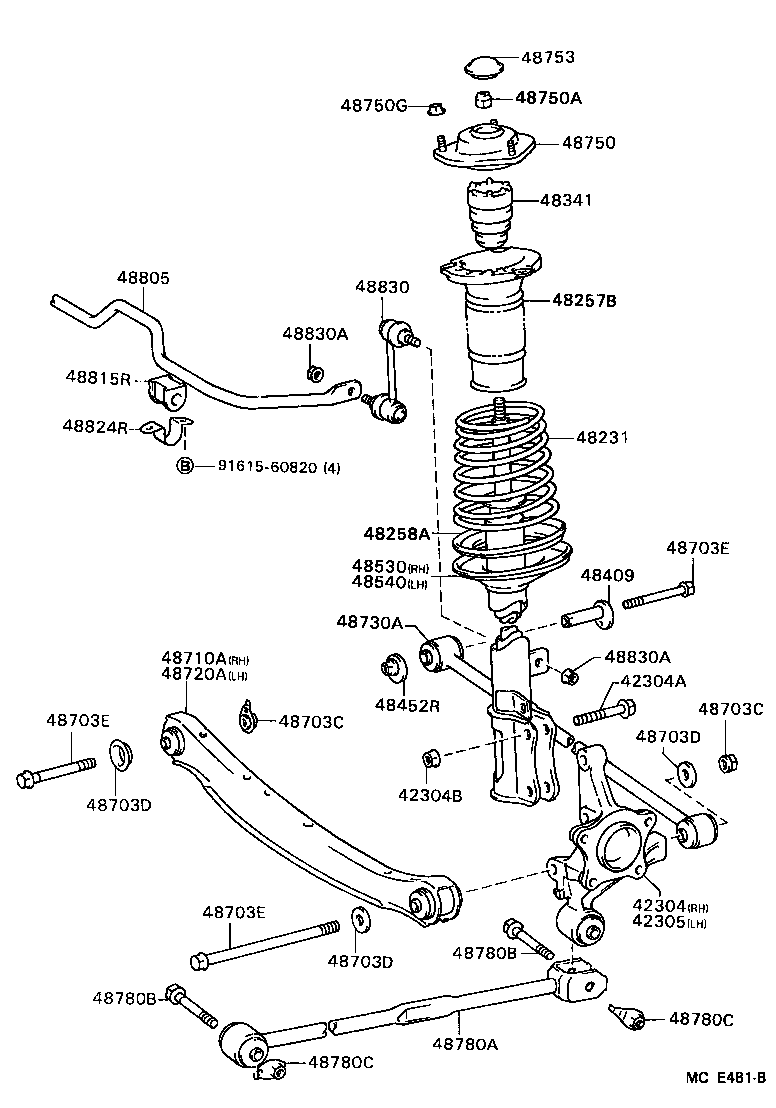

ST162L-BCPVKK (1987)
Toyota Celica
(8708- )ST162
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-32020 |
ST162..GT,ST |
1 | ||
| 42304A - BOLT (FOR REAR AXLE CARRIER) | ||||
| 90105-15001 |
ST16# |
2 | ||
| 42304B - NUT (FOR REAR AXLE CARRIER) | ||||
| 90179-15001 |
ST16# |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-32020 |
ST162..GT,ST |
1 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-20490 |
ST162..ST |
1 | ||
| 48231-20270 |
ST162..CP..GT..CND |
1 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-32030 |
ST16# |
1 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-16010 |
ST16# |
1 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-20090 |
ST162 |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-20020 |
ST162 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-32010 |
ST162 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-20121 |
ST162..(CP,LB)..(GT,ST) |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-20121 |
ST162..(CP,LB)..(GT,ST) |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
ST162 |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
ST162 |
2 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
ST162 CARRIER SIDE |
4 | ||
| 90209-13008 |
ST162 BODY SIDE |
2 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
ST162 CARRIER SIDE |
4 | ||
| 90209-13008 |
ST162 BODY SIDE |
2 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
ST162 CARRIER SIDE |
4 | ||
| 90209-13008 |
ST162 BODY SIDE |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-10132 |
ST162 *10-1.25PX80-20 |
2 | ||
| 90105-12147 |
ST162 *12-1.25PX74.5-25 |
2 | ||
| 90105-14036 |
ST162 *14-1.5PX248-30 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-10132 |
ST162 *10-1.25PX80-20 |
2 | ||
| 90105-12147 |
ST162 *12-1.25PX74.5-25 |
2 | ||
| 90105-14036 |
ST162 *14-1.5PX248-30 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-10132 |
ST162 *10-1.25PX80-20 |
2 | ||
| 90105-12147 |
ST162 *12-1.25PX74.5-25 |
2 | ||
| 90105-14036 |
ST162 *14-1.5PX248-30 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-20060 |
ST162 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48720-20050 |
ST162 |
1 | ||
| 48730A - ARM ASSY, REAR SUSPENSION, NO.2 | ||||
| 48730-20010 |
ST162 |
2 | ||
| 48750 - SUPPORT ASSY, REAR SUSPENSION | ||||
| 48750-20010 |
ST162 |
1 | ||
| 48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 94182-11400 |
ST16# |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08111 |
ST16# |
6 | ||
| 48753 - COVER, REAR SUSPENSION SUPPORT | ||||
| 48753-16010 |
ST16# |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-20020 |
ST162 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
ST16# |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
ST16# |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12062 |
ST16# CARRIER SIDE |
2 | ||
| 90179-12063 |
ST162 BODY SIDE |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12062 |
ST16# CARRIER SIDE |
2 | ||
| 90179-12063 |
ST162 BODY SIDE |
4 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48812-20150 |
ST162..CP,LB |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48818-20080 |
ST162..CP,LB |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48832-20020 |
ST162 |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-20010 |
ST16# |
2 | ||
| 48830-32010 |
ST162 GREEN PEINTED |
2 | ||
| 48830-32020 |
ST162 GREEN PEINTED |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
ST16# |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
ST16# |
4 | ||
| Common parts | ||||
| 91615-60820 | ||||
