ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )

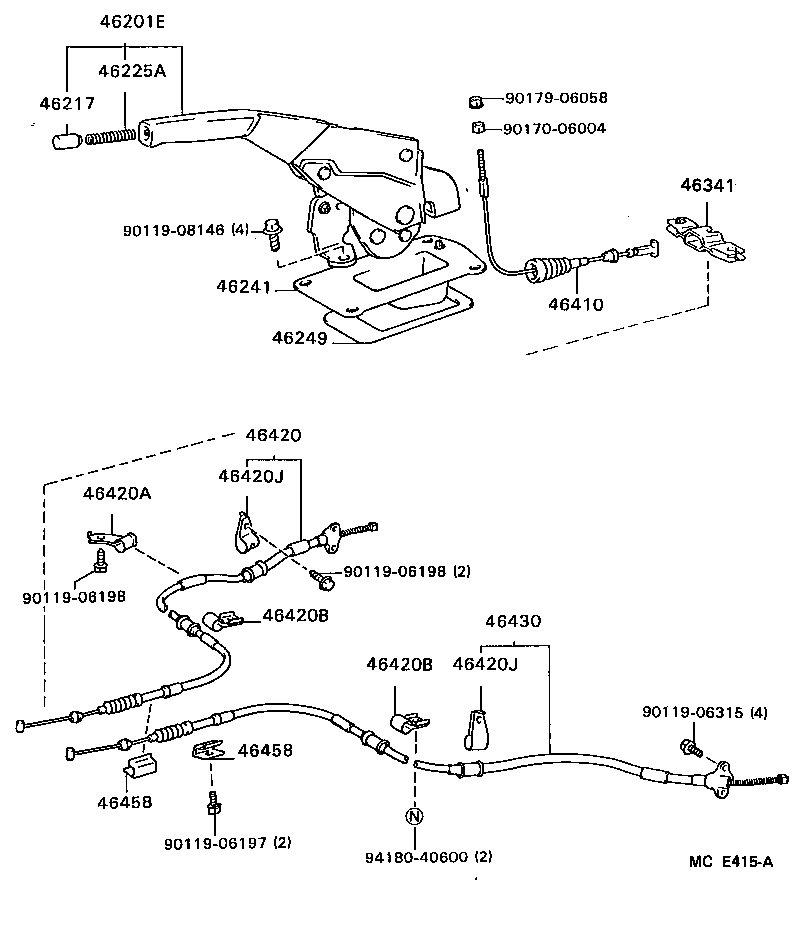

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46249 46341 46410 46420 46420A 46420B 46420B 46420J 46420J 46430 46458 46458 9011906197 9011906198 9011906198 9011906315 9011908146 9017006004 9017906058 9418040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-2016001

ST162..GT,ST

NEW BLACK,TRIM2#

 1
46201-2016004

ST162..(CP,LB)..(GT,ST)

DEEP BLUE,TRIM8#

 1
46201-2016002

ST162..(CP,LB)..(GT,ST)

RED,TRIM3#

 1
46201-2016005

ST162..(CP,LB)..(GT,ST)

DARK BEIGE,TRIM4#

 1
46201-2016101

ST162..GT,ST

NEW BLACK,TRIM2#

 1
46201-2016105

ST162..(CP,LB)..(GT,ST)

DARK BEIGE,TRIM4#

 1
46201-2016102

ST162..(CP,LB)..(GT,ST)

RED,TRIM3#

 1
46201-2016104

ST162..(CP,LB)..(GT,ST)

DEEP BLUE,TRIM8#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1202002

ST16#..CP,LB

MAROON,TRIM3#

 1
46217-1202011

ST16#

BLACK,TRIM2#

 1
46217-2002011

ST16#

BLACK,TRIM2#

 1
46217-1202004

ST16#..CP,LB

DEEP BLUE,TRIM8#

 1
46217-2002015

ST162..CP,LB

BEIGE,TRIM4#

 1
46217-1202006

ST162..CP,LB

BROWN,TRIM4#

 1
46217-2002014

ST162..CP;ST16#..LB..(GTS,TBO4W,TBOAT)

DEEP BLUE,TRIM8#

 1
46217-2002010

ST16#..CP,LB

MAROON,TRIM3#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10069

ST16#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-20030

ST162..GT,ST

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-20020

ST162

 1
46341 - EQUALIZER, PARKING BRAKE
46341-20040

ST162

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-20250

ST162..GT,ST

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-29015

ST162..GT,ST

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01285

ST162

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01016

ST162

 2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01016

ST162

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01224

ST162

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01224

ST162

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-29025

ST162..GT,ST

 1
46458 - RETAINER, CABLE
46458-20020

ST16#

 2
46458-50010

ST16#

 2
46458 - RETAINER, CABLE
46458-20020

ST16#

 2
46458-50010

ST16#

 2
Common parts
90119-06197
90119-06198
90119-06315
90119-08146
90170-06004
90179-06058
94180-40600

ILLUST NO. 2 OF 2(8708- )

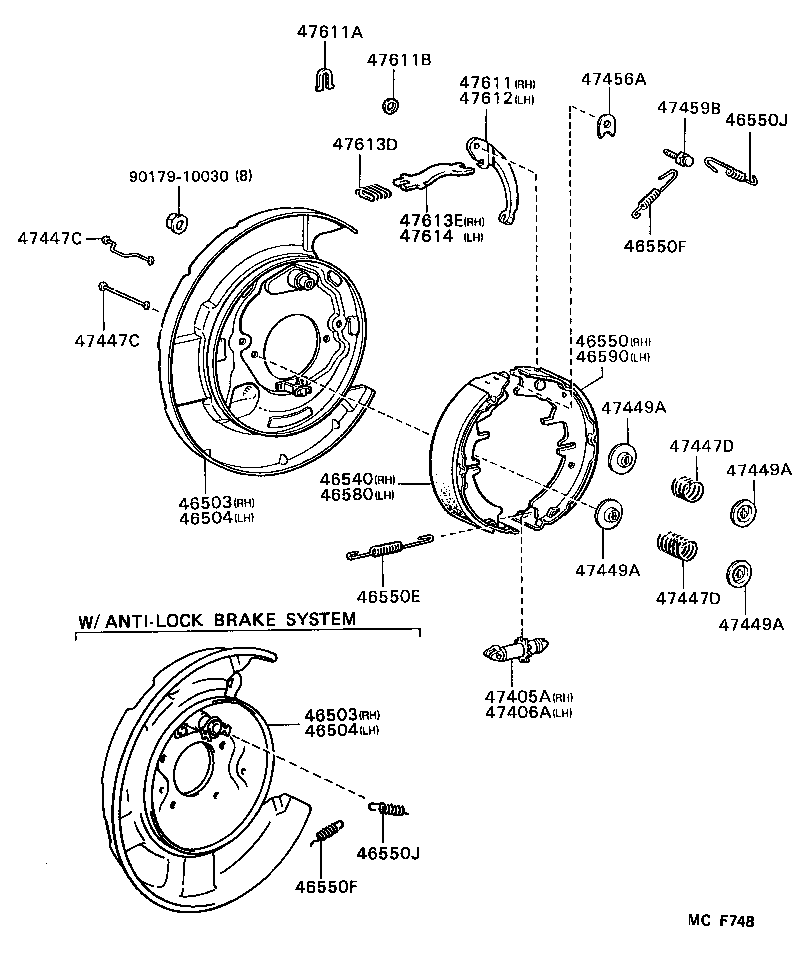

Click highlighted areas on diagram

diagram 46503 46503 46504 46504 46540 46550 46550E 46550F 46550F 46550J 46550J 46580 46590 47405A 47406A 47447C 47447C 47447D 47447D 47449A 47449A 47449A 47449A 47456A 47459B 47611 47611A 47611B 47612 47613D 47613E 47614 9017910030
Part # Description Qty Price
Common parts
90179-10030
