ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

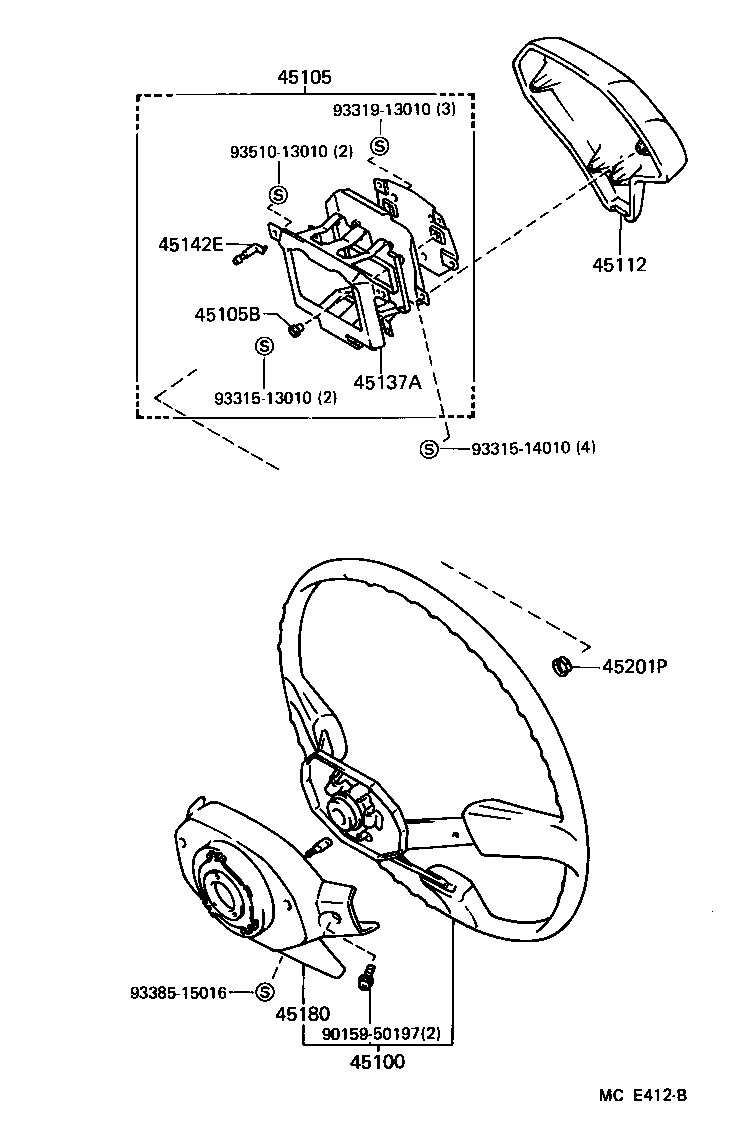

(8708- )ST162

Click highlighted areas on diagram

diagram 45100 45105 45105B 45112 45137A 45142E 45180 45201P 9015950197 9331513010 9331514010 9331913010 9338515016 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2046004

ST162..(CP,LB)..(GT,ST)

DEEP BLUE,TRIM8#

 1
45100-2046001

ST162..GT,ST

NEW BLACK,TRIM2#

 1
45100-2046005

ST162..(CP,LB)..(GT,ST)

DARK BEIGE,TRIM4#

 1
45102-2040005

ST162..(CP,LB)..GT

W(CRUISE CONTROL),DARK BEIGE,TRIM4#

 1
45102-2040004

ST162..(CP,LB)..GT

W(CRUISE CONTROL),DEEP BLUE,TRIM8#

 1
45102-2040002

ST162..(CP,LB)..GT

W(CRUISE CONTROL),MAROON,TRIM3#

 1
45100-2046002

ST162..(CP,LB)..(GT,ST)

MAROON,TRIM3#

 1
45102-2040001

ST162..GT

W(CRUISE CONTROL),NEW BLACK,TRIM2#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-20170

ST16#..CND

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-02001

ST16#

 2
45112 - PAD, STEERING WHEEL
45112-2032002

ST162..(GT,ST)..CND

MAROON,TRIM3#

 1
45112-2032001

ST162..(GT,ST)..CND

NEW BLACK,TRIM2#

 1
45112-2032004

ST162..(GT,ST)..CND

DEEP BLUE,TRIM8#

 1
45112-2032005

ST162..(GT,ST)..CND

DARK BEIGE,TRIM4#

 1
45142E - PIECE, HORN CONTACT
45142-20060

ST16#

 2
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-2003001

ST162..GT,ST

NEW BLACK,TRIM2#

 1
45180-2003005

ST162..(CP,LB)..(GT,ST)

DARK BEIGE,TRIM4#

 1
45180-2003002

ST162..(CP,LB)..(GT,ST)

MAROON,TRIM3#

 1
45180-2003004

ST162..(CP,LB)..(GT,ST)

DEEP BLUE,TRIM8#

 1
45184-2014002

ST162..(CP,LB)..GT

W(CRUISE CONTROL),MAROON,TRIM3#

 1
45184-2014004

ST162..(CP,LB)..GT

W(CRUISE CONTROL),DEEP BLUE,TRIM8#

 1
45184-2014005

ST162..(CP,LB)..GT

W(CRUISE CONTROL),DARK BEIGE,TRIM4#

 1
45184-2014001

ST162..GT

W(CRUISE CONTROL),NEW BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

ST16#

 1
Common parts
90159-50197
93315-13010
93315-14010
93319-13010
93385-15016
93510-13010

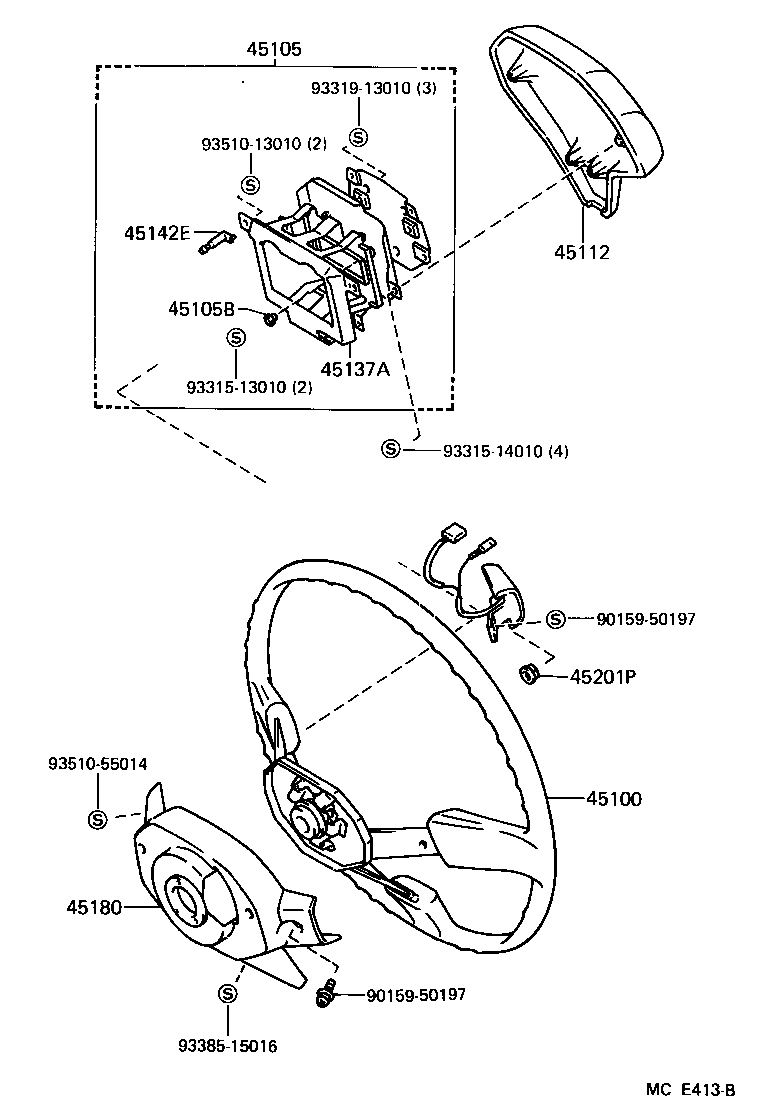

(8708- )GT,GTS

Click highlighted areas on diagram

W(CRUISE CONTROL)

diagram 45100 45105 45105B 45112 45137A 45142E 45180 45201P 9015950197 9015950197 9331513010 9331514010 9331913010 9338515016 9351013010 9351055014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2046004

ST162..(CP,LB)..(GT,ST)

DEEP BLUE,TRIM8#

 1
45100-2046001

ST162..GT,ST

NEW BLACK,TRIM2#

 1
45100-2046005

ST162..(CP,LB)..(GT,ST)

DARK BEIGE,TRIM4#

 1
45102-2040005

ST162..(CP,LB)..GT

W(CRUISE CONTROL),DARK BEIGE,TRIM4#

 1
45102-2040004

ST162..(CP,LB)..GT

W(CRUISE CONTROL),DEEP BLUE,TRIM8#

 1
45102-2040002

ST162..(CP,LB)..GT

W(CRUISE CONTROL),MAROON,TRIM3#

 1
45100-2046002

ST162..(CP,LB)..(GT,ST)

MAROON,TRIM3#

 1
45102-2040001

ST162..GT

W(CRUISE CONTROL),NEW BLACK,TRIM2#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-20170

ST16#..CND

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-02001

ST16#

 2
45112 - PAD, STEERING WHEEL
45112-2032002

ST162..(GT,ST)..CND

MAROON,TRIM3#

 1
45112-2032001

ST162..(GT,ST)..CND

NEW BLACK,TRIM2#

 1
45112-2032004

ST162..(GT,ST)..CND

DEEP BLUE,TRIM8#

 1
45112-2032005

ST162..(GT,ST)..CND

DARK BEIGE,TRIM4#

 1
45142E - PIECE, HORN CONTACT
45142-20060

ST16#

 2
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-2003001

ST162..GT,ST

NEW BLACK,TRIM2#

 1
45180-2003005

ST162..(CP,LB)..(GT,ST)

DARK BEIGE,TRIM4#

 1
45180-2003002

ST162..(CP,LB)..(GT,ST)

MAROON,TRIM3#

 1
45180-2003004

ST162..(CP,LB)..(GT,ST)

DEEP BLUE,TRIM8#

 1
45184-2014002

ST162..(CP,LB)..GT

W(CRUISE CONTROL),MAROON,TRIM3#

 1
45184-2014004

ST162..(CP,LB)..GT

W(CRUISE CONTROL),DEEP BLUE,TRIM8#

 1
45184-2014005

ST162..(CP,LB)..GT

W(CRUISE CONTROL),DARK BEIGE,TRIM4#

 1
45184-2014001

ST162..GT

W(CRUISE CONTROL),NEW BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

ST16#

 1
Common parts
90159-50197
93315-13010
93315-14010
93319-13010
93385-15016
93510-13010
93510-55014
