ST162L-BCPVKK (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

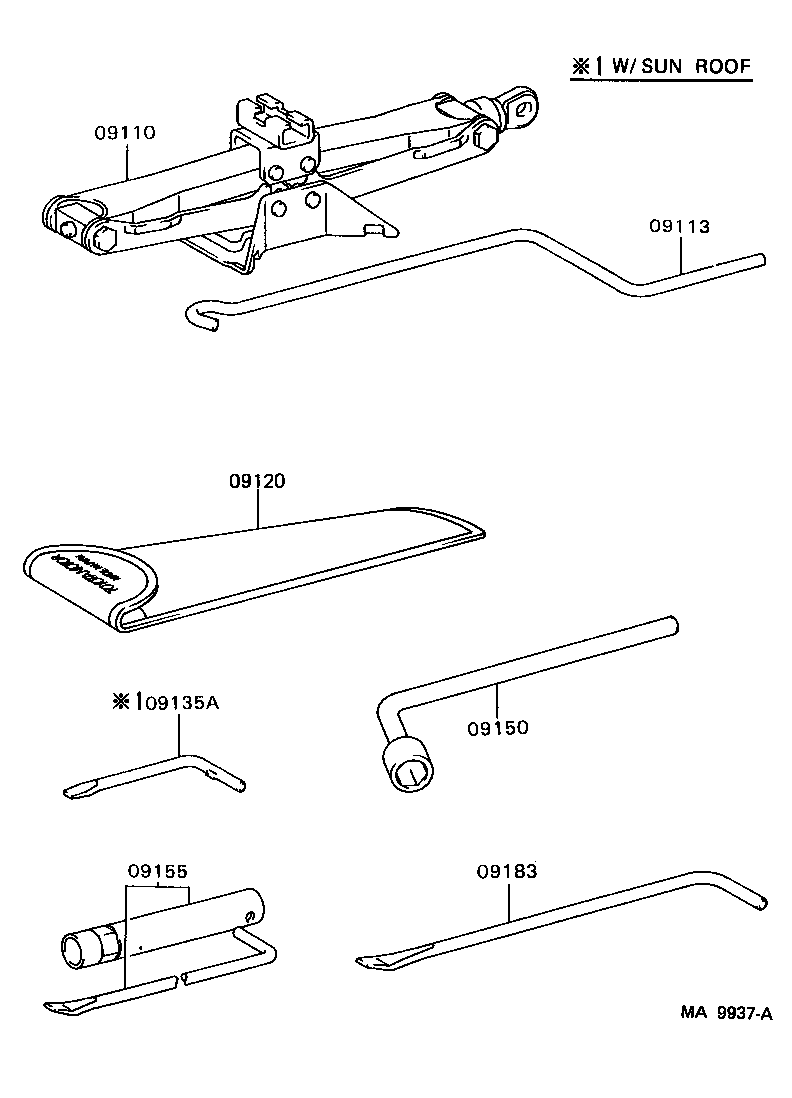

diagram 09110 09113 09120 09135A 09150 09155 09183
Part # Description Qty Price
09110 - JACK ASSY
09111-20060

ST162

 1
09113 - HANDLE, JACK
09113-20030

ST16#

 1
09120 - BAG, TOOL
09120-12030

ST16#

 1
09120-32010

ST16#

 1
09135A - BIT, SCREW DRIVER
09135-00012

ST16#..CP,LB

 1
09150 - WRENCH, HUB NUT BOX
09150-26010

ST16#

 1
09183 - WRENCH, WHEEL CAP
09183-00010

ST16#

 1
