ST162L-BCPVKA (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )ST162

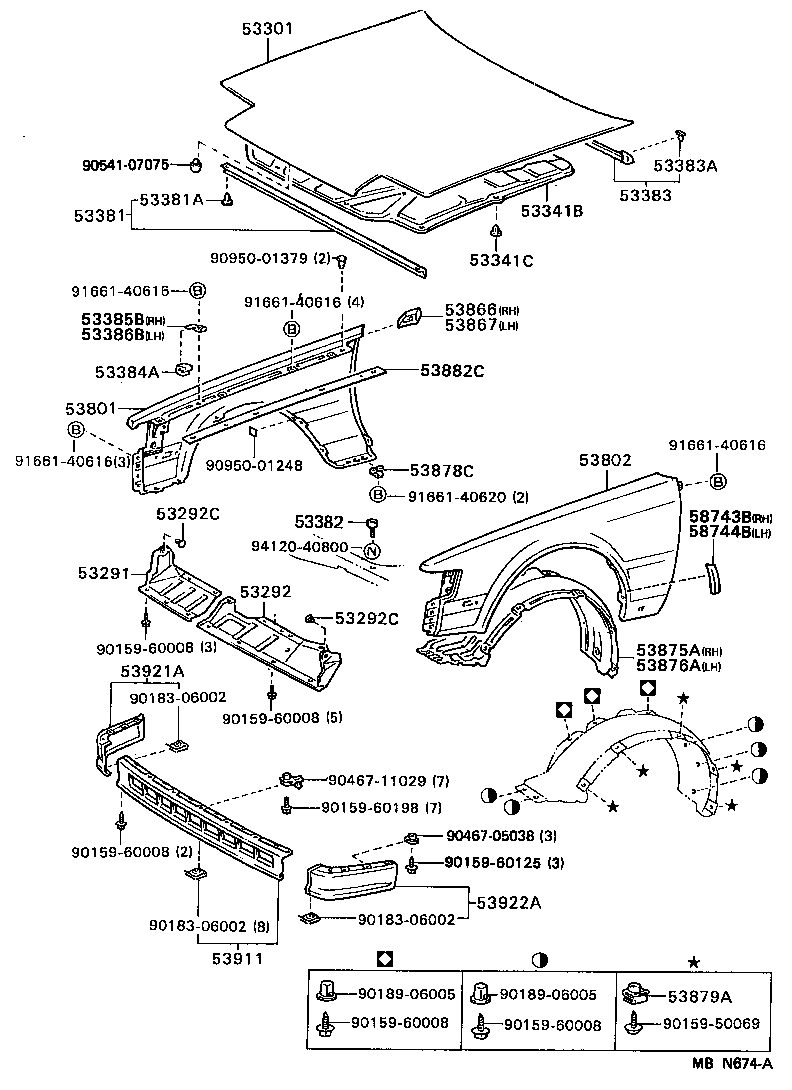

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH | ||||
| 53291-20020 |
ST162 |
1 | ||
| 53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH | ||||
| 53292-20020 |
ST162 |
1 | ||
| 53292C - CLIP, RADIATOR SUPPORT TO FRAME | ||||
| 90467-0906401 |
ST16# BLACK,040 ,168 ,20C ,202 ,21C ,3E5 ,3H4 ,4H5 ,4H6 ,8D7 ,8D8 ,8E3 ,920 |
5 | ||
| 53292C - CLIP, RADIATOR SUPPORT TO FRAME | ||||
| 90467-0906401 |
ST16# BLACK,040 ,168 ,20C ,202 ,21C ,3E5 ,3H4 ,4H5 ,4H6 ,8D7 ,8D8 ,8E3 ,920 |
5 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-20230 |
ST16# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-20141 |
ST162 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-0900801 |
ST16# BLACK,TRIM2#,3#,4#,8# |
12 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-20080 |
ST16# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
ST16# |
8 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-12040 |
ST16# |
2 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-20080 |
ST16# |
1 | ||
| 53383A - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 90467-08030 |
ST16# |
10 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-14010 |
ST16# |
2 | ||
| 53385B - BRACKET, FENDER TO HOOD BUMPER, RH | ||||
| 53385-14010 |
ST16# |
1 | ||
| 53386B - BRACKET, FENDER TO HOOD BUMPER, LH | ||||
| 53386-14010 |
ST16# |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-20840 |
ST162..CP,LB |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-20840 |
ST162..CP,LB |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-20010 |
ST16# |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-20030 |
ST16# |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-20110 |
ST16# |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-20120 |
ST16# |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-20030 |
ST16#..CP,LB |
2 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-14010 |
ST16# |
10 | ||
| 53882C - SEAL, FRONT FENDER MAIN | ||||
| 53882-20060 |
ST16# |
2 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53911-20120 |
ST162 |
1 | ||
| 53921A - PANEL, FRONT VALANCE, RH | ||||
| 53921-20020 |
ST162 |
1 | ||
| 53922A - PANEL, FRONT VALANCE, LH | ||||
| 53922-20010 |
ST162 |
1 | ||
| 58743B - PROTECTER, FRONT FENDER PANEL, RH | ||||
| 58743-20030 |
ST162..(CP,LB)..(GT,ST) |
1 | ||
| 58744B - PROTECTER, FRONT FENDER PANEL, LH | ||||
| 58743-20030 |
ST162..(CP,LB)..(GT,ST) |
1 | ||
| Common parts | ||||
| 90159-50069 | ||||
| 90159-60008 | ||||
| 90159-60125 | ||||
| 90159-60198 | ||||
| 90183-06002 | ||||
| 90189-06005 | ||||
| 90467-05038 | ||||
| 90467-11029 | ||||
| 90541-07075 | ||||
| 90950-01248 | ||||
| 90950-01379 | ||||
| 91661-40616 | ||||
| 91661-40620 | ||||
| 94120-40800 | ||||
