ST162L-BCPVFA (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )GTS

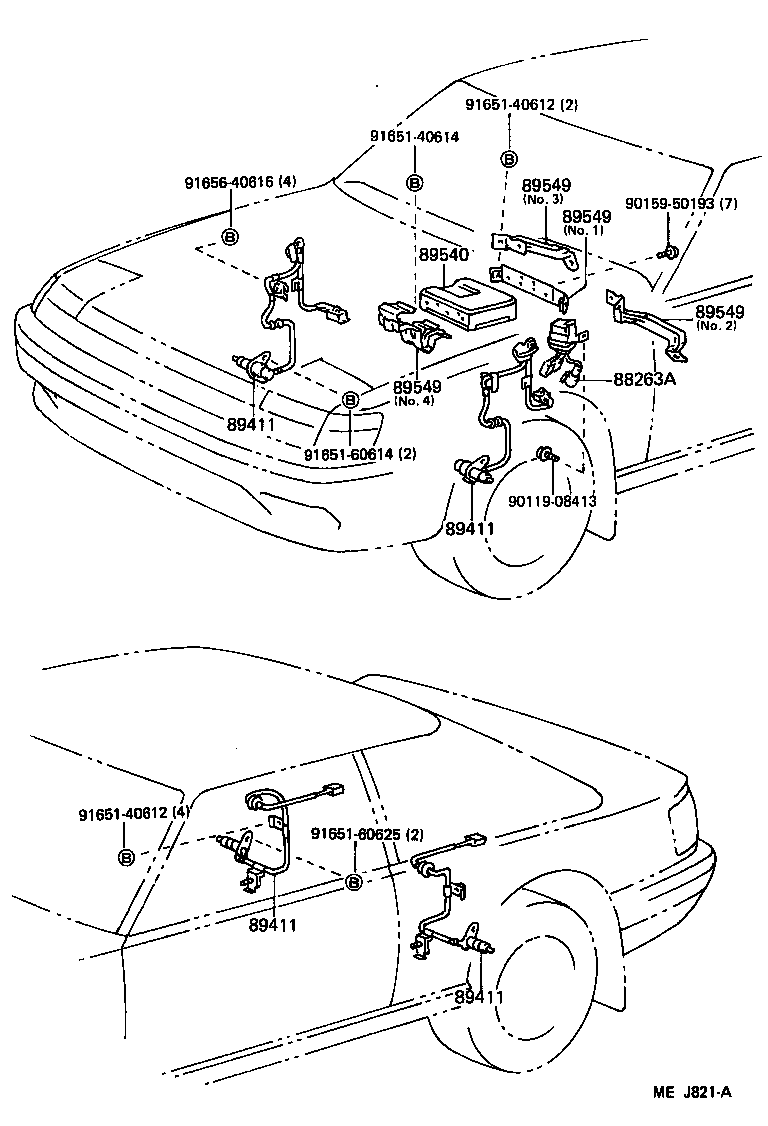

Click highlighted areas on diagram

diagram 88263A 89411 89411 89411 89411 89540 89549 89549 89549 89549 9011908413 9015950193 9165140612 9165140612 9165140614 9165160614 9165160625 9165640616
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-20040

ST162..GTS

 1
89411 - SENSOR, SPEED
89543-20010

ST16#..GTS,TBO4W,TBOAT

FR-LH

 1
89542-20010

ST16#..GTS,TBO4W,TBOAT

FR-RH

 1
89545-20010

ST162..GTS

RR-RH

 1
89546-20010

ST162..GTS

RR-LH

 1
89411 - SENSOR, SPEED
89543-20010

ST16#..GTS,TBO4W,TBOAT

FR-LH

 1
89542-20010

ST16#..GTS,TBO4W,TBOAT

FR-RH

 1
89545-20010

ST162..GTS

RR-RH

 1
89546-20010

ST162..GTS

RR-LH

 1
89411 - SENSOR, SPEED
89543-20010

ST16#..GTS,TBO4W,TBOAT

FR-LH

 1
89542-20010

ST16#..GTS,TBO4W,TBOAT

FR-RH

 1
89545-20010

ST162..GTS

RR-RH

 1
89546-20010

ST162..GTS

RR-LH

 1
89411 - SENSOR, SPEED
89543-20010

ST16#..GTS,TBO4W,TBOAT

FR-LH

 1
89542-20010

ST16#..GTS,TBO4W,TBOAT

FR-RH

 1
89545-20010

ST162..GTS

RR-RH

 1
89546-20010

ST162..GTS

RR-LH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-32030

ST162..GTS

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88269-20050

ST162..GTS

NO.3

 1
88267-20040

ST162..GTS

NO.1

 1
89549-20010

ST162..GTS

NO.4

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88269-20050

ST162..GTS

NO.3

 1
88267-20040

ST162..GTS

NO.1

 1
89549-20010

ST162..GTS

NO.4

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88269-20050

ST162..GTS

NO.3

 1
88267-20040

ST162..GTS

NO.1

 1
89549-20010

ST162..GTS

NO.4

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88269-20050

ST162..GTS

NO.3

 1
88267-20040

ST162..GTS

NO.1

 1
89549-20010

ST162..GTS

NO.4

 1
Common parts
90119-08413
90159-50193
91651-40612
91651-40614
91651-60614
91651-60625
91656-40616
