ST162L-BCPVFA (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

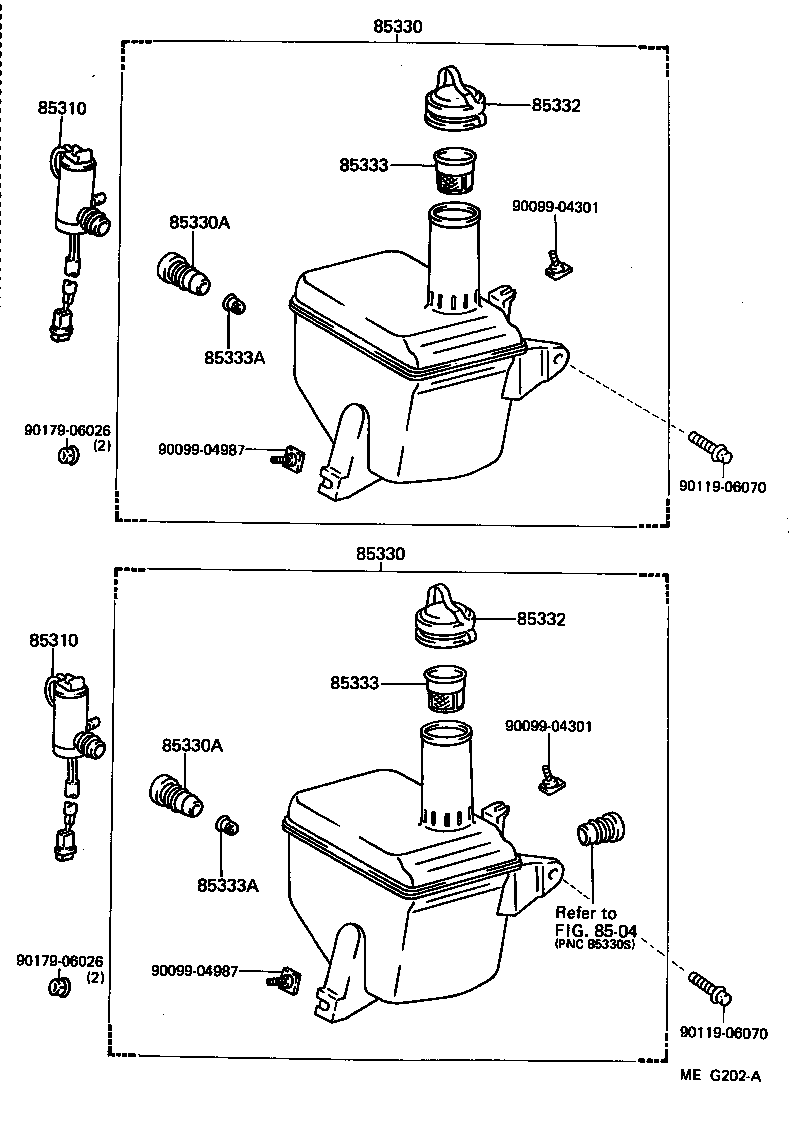

Click highlighted areas on diagram

diagram 8504 85310 85310 85330 85330 85330A 85330A 85332 85332 85333 85333 85333A 85333A 9009904301 9009904301 9009904987 9009904987 9011906070 9011906070 9017906026 9017906026
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22111

ST16#..CP,LB

COLD SPEC

 1
85310-12150

ST16#..(CP,LB)..USA

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22111

ST16#..CP,LB

COLD SPEC

 1
85310-12150

ST16#..(CP,LB)..USA

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-20380

ST162..(CP,LB)..(GT,ST)

COLD SPEC

 1
85331-20380

ST161;ST162..CP

COLD SPEC

 1
85331-20340

ST16#..(CP,LB)..(GT,ST)..USA

 1
85331-20380

ST162..CP..GTS

COLD SPEC

 1
85331-20430

ST162..CP..GTS..USA

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-20380

ST162..(CP,LB)..(GT,ST)

COLD SPEC

 1
85331-20380

ST161;ST162..CP

COLD SPEC

 1
85331-20340

ST16#..(CP,LB)..(GT,ST)..USA

 1
85331-20380

ST162..CP..GTS

COLD SPEC

 1
85331-20430

ST162..CP..GTS..USA

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

ST16#..(CP,LB)..USA

 1
90099-32103

ST16#..CP,LB

COLD SPEC

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

ST16#..(CP,LB)..USA

 1
90099-32103

ST16#..CP,LB

COLD SPEC

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-20441

ST16#..CP,LB

W/RR WASHER OR COLD SPEC

 1
85332-20431

ST16#..(CP,LB)..(GT,ST)..USA

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-20441

ST16#..CP,LB

W/RR WASHER OR COLD SPEC

 1
85332-20431

ST16#..(CP,LB)..(GT,ST)..USA

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-12470

ST16#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-12470

ST16#

 1
85333A - FILTER, WINDSHIELD WASHER JAR, NO.2
85333-20020

ST16#

 1
85333A - FILTER, WINDSHIELD WASHER JAR, NO.2
85333-20020

ST16#

 1
Common parts
90099-04301
90099-04987
90119-06070
90179-06026
Linked diagrams
8504

(8508- )

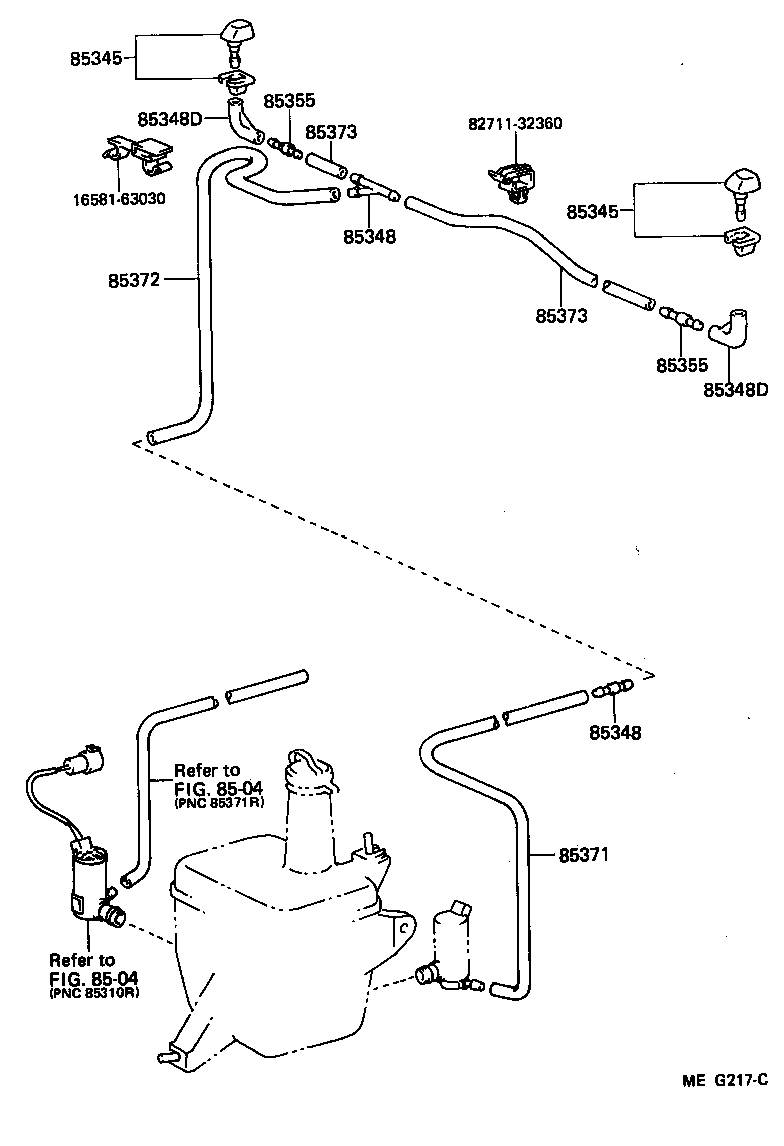

Click highlighted areas on diagram

diagram 1658163030 8271132360 8504 8504 85345 85345 85348 85348 85348D 85348D 85355 85355 85371 85372 85373 85373
Part # Description Qty Price
85345 - NOZZLE, WINDSHIELD WASHER
85035-20110

ST16#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-20110

ST16#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

ST16#

3 WAY

 1
85349-89122

ST16#..(CP,LB)..USA

2 WAY

 3
85349-14010

ST16#..CP,LB

COLD SPEC, 2 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

ST16#

3 WAY

 1
85349-89122

ST16#..(CP,LB)..USA

2 WAY

 3
85349-14010

ST16#..CP,LB

COLD SPEC, 2 WAY

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

ST16#..(CP,LB)..USA

 2
85355-14481

ST16#..CP,LB

COLD SPEC

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

ST16#..(CP,LB)..USA

 2
85355-14481

ST16#..CP,LB

COLD SPEC

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

ST16#

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

ST16#

 2
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

ST16#..CP,LB

L=1100

 1
90446-07001

ST16#..(CP,LB)..USA

*H,L=1040

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33075

ST16#..(CP,LB)..USA

*H,L=50

 1
90446-07001

ST16#..CP,LB

*H,L=580,COLD SPEC

 1
90446-07001

ST16#..(CP,LB)..USA

*H,L=580

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ST16#..CP,LB

*H,L=30,COLD SPEC

 1
90446-07001

ST16#..(CP,LB)..USA

*H,L=460

 1
90446-07001

ST16#..CP,LB

*H,L=460,COLD SPEC

 1
90099-33080

ST16#..(CP,LB)..USA

*H,L=30

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ST16#..CP,LB

*H,L=30,COLD SPEC

 1
90446-07001

ST16#..(CP,LB)..USA

*H,L=460

 1
90446-07001

ST16#..CP,LB

*H,L=460,COLD SPEC

 1
90099-33080

ST16#..(CP,LB)..USA

*H,L=30

 1
Common parts
16581-63030
82711-32360
Linked diagrams
8504
