ST162L-BCPSKA (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

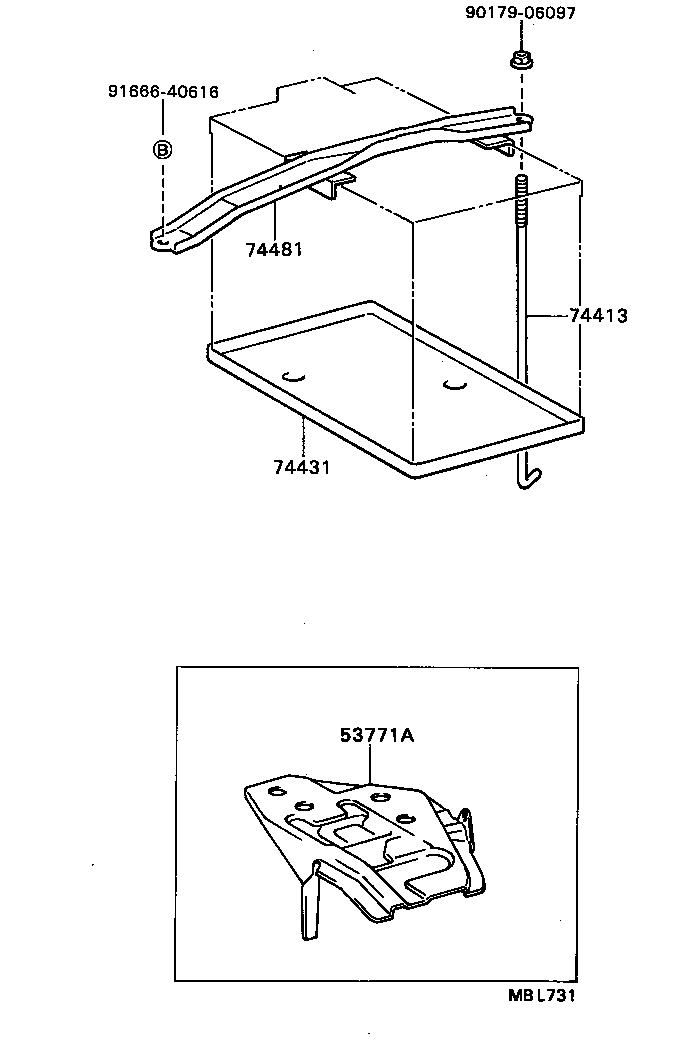

diagram 53771A 74413 74431 74481 9017906097 9166640616
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53771-20030

ST16#

 1
74413 - BOLT, BATTERY CLAMP
74451-30060

ST16#..GT,ST,TBO4W,TBOAT

 1
74431 - TRAY, BATTERY
74431-14030

ST16#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-20230

ST162..(CP,LB)..(GT,ST)..USA

W(BATTERY=32C24L)

 1
74404-20220

ST16#..GT,ST,TBO4W,TBOAT

 1
Common parts
90179-06097
91666-40616
