ST162L-BCMVKA (1987)
Toyota Celica

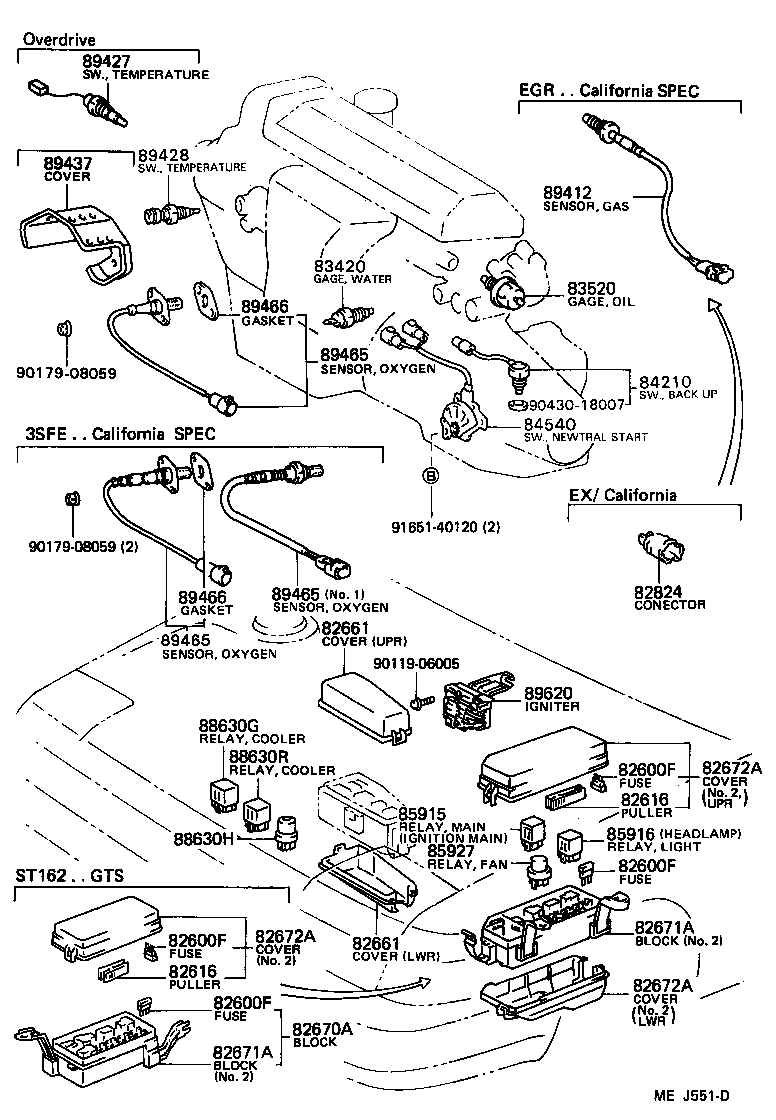

ILLUST NO. 1 OF 5(8708- )ST162
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
ST16# 10A |
1 | ||
| 90982-09004 |
ST16# 20A,YELLOW |
2 | ||
| 90982-09002 |
ST16# 10A |
3 | ||
| 90982-09003 |
ST16# 15A |
5 | ||
| 90982-09005 |
ST16# 7.5A |
1 | ||
| 90982-09004 |
ST16# 20A,YELLOW |
1 | ||
| 90982-07011 |
ST16# 30A,GREEN |
2 | ||
| 90982-09005 |
ST16# 7.5A |
2 | ||
| 90982-09003 |
ST16# 15A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
ST16# 10A |
1 | ||
| 90982-09004 |
ST16# 20A,YELLOW |
2 | ||
| 90982-09002 |
ST16# 10A |
3 | ||
| 90982-09003 |
ST16# 15A |
5 | ||
| 90982-09005 |
ST16# 7.5A |
1 | ||
| 90982-09004 |
ST16# 20A,YELLOW |
1 | ||
| 90982-07011 |
ST16# 30A,GREEN |
2 | ||
| 90982-09005 |
ST16# 7.5A |
2 | ||
| 90982-09003 |
ST16# 15A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
ST16# 10A |
1 | ||
| 90982-09004 |
ST16# 20A,YELLOW |
2 | ||
| 90982-09002 |
ST16# 10A |
3 | ||
| 90982-09003 |
ST16# 15A |
5 | ||
| 90982-09005 |
ST16# 7.5A |
1 | ||
| 90982-09004 |
ST16# 20A,YELLOW |
1 | ||
| 90982-07011 |
ST16# 30A,GREEN |
2 | ||
| 90982-09005 |
ST16# 7.5A |
2 | ||
| 90982-09003 |
ST16# 15A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
ST16# 10A |
1 | ||
| 90982-09004 |
ST16# 20A,YELLOW |
2 | ||
| 90982-09002 |
ST16# 10A |
3 | ||
| 90982-09003 |
ST16# 15A |
5 | ||
| 90982-09005 |
ST16# 7.5A |
1 | ||
| 90982-09004 |
ST16# 20A,YELLOW |
1 | ||
| 90982-07011 |
ST16# 30A,GREEN |
2 | ||
| 90982-09005 |
ST16# 7.5A |
2 | ||
| 90982-09003 |
ST16# 15A |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
ST16# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
ST16# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-20150 |
ST16# UPR |
1 | ||
| 82661-20030 |
ST16# LWR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-20150 |
ST16# UPR |
1 | ||
| 82661-20030 |
ST16# LWR |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20030 |
ST16# NO.1 |
1 | ||
| 82671-20050 |
ST16# NO.3 |
1 | ||
| 82671-20080 |
ST16#..GT,ST,TBO4W,TBOAT NO.2 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20030 |
ST16# NO.1 |
1 | ||
| 82671-20050 |
ST16# NO.3 |
1 | ||
| 82671-20080 |
ST16#..GT,ST,TBO4W,TBOAT NO.2 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20270 |
ST16# NO.1 |
1 | ||
| 82672-20121 |
ST16#..GT,ST,TBO4W,TBOAT NO.2,UPR |
1 | ||
| 82672-20110 |
ST16#..GT,ST,TBO4W,TBOAT NO.2,LWR |
1 | ||
| 82672-20080 |
ST16# NO.3 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20270 |
ST16# NO.1 |
1 | ||
| 82672-20121 |
ST16#..GT,ST,TBO4W,TBOAT NO.2,UPR |
1 | ||
| 82672-20110 |
ST16#..GT,ST,TBO4W,TBOAT NO.2,LWR |
1 | ||
| 82672-20080 |
ST16# NO.3 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20270 |
ST16# NO.1 |
1 | ||
| 82672-20121 |
ST16#..GT,ST,TBO4W,TBOAT NO.2,UPR |
1 | ||
| 82672-20110 |
ST16#..GT,ST,TBO4W,TBOAT NO.2,LWR |
1 | ||
| 82672-20080 |
ST16# NO.3 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
ST162..GT,ST |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14043 |
ST16# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ST16#..5F |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
ST16# IGNITION MAIN |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
ST16# MARUKO,TAIL LAMP |
1 | ||
| 90987-02004 |
ST16# DENSO,TAIL LAMP |
1 | ||
| 90987-02006 |
ST16# HEADLAMP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
ST16# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
ST162..ST;ST162..CVT |
1 | ||
| 88630-32010 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 90987-02004 |
ST162..ST;ST162..CVT |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 85926-30020 |
ST162..ST;ST162..CVT |
1 | ||
| 85926-30020 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 89412 - SENSOR, E.G.R GAS TEMPERATURE | ||||
| 89412-12010 |
ST16#..USA |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20060 |
ST162 |
1 | ||
| 89428-32010 |
ST162 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39205 |
ST162..(GT,ST)..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 89465-39145 |
ST162..GT,ST |
1 | ||
| 89465-32110 |
ST162..(GT,ST)..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39205 |
ST162..(GT,ST)..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 89465-39145 |
ST162..GT,ST |
1 | ||
| 89465-32110 |
ST162..(GT,ST)..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39205 |
ST162..(GT,ST)..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 89465-39145 |
ST162..GT,ST |
1 | ||
| 89465-32110 |
ST162..(GT,ST)..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
ST162 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
ST162 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-20320 |
ST162..GT,ST |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 91651-40120 | ||||
ILLUST NO. 2 OF 5(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-10020 |
ST16# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29725 |
ST162..GT,ST TOKAIRIKA |
1 | ||
| 84112-29735 |
ST162..GT,ST MATSUSHITA |
1 | ||
| 84112-29755 |
ST162..CP..GT W(TILT & TELESCOPIC STEERING),MATSUSHITA |
1 | ||
| 84112-29745 |
ST162..CP..GT W(TILT & TELESCOPIC STEERING),TOKAIRIKA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
ST16# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20140 |
ST16# |
1 | ||
| 84119-32090 |
ST16# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
ST16# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12260 |
ST162..GT,ST TOKAIRIKA |
1 | ||
| 84140-12250 |
ST162..GT,ST MATSUSHITA |
1 | ||
| 84140-20330 |
ST162..GT,ST MATSUSHITA |
1 | ||
| 84140-20270 |
ST162..CP..GT W(TILT & TELESCOPIC STEERING),MATSUSHITA |
1 | ||
| 84140-20320 |
ST162..GT,ST TOKAIRIKA |
1 | ||
| 84140-20240 |
ST162..CP..GT W(TILT & TELESCOPIC STEERING),TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2B410 |
ST162..GT W(CRUISE CONTROL) |
1 | ||
| 84310-2D180 |
ST162..(CP,LB)..GT W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84310-2B520 |
ST162..(CP,LB)..GT W(TILT & TELESCOPIC STEERING & CRUISE CONTROL) |
1 | ||
| 84310-2D170 |
ST162..GT,ST |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
ST16# TOKAIRIKA |
1 | ||
| 84312-12050 |
ST16# MATSUSHITA |
1 | ||
| 84315 - SLIPRING, HORN CONTACT | ||||
| 84315-20060 |
ST162..GT W(CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84315-20090 |
ST162..CP..GT W(TILT & TELESOPIC STEERING & CRUISE CONTROL),TOKAIRIKA |
1 | ||
| 84315-20080 |
ST162..GT W(CRUISE CONTROL),TOKAIRIKA |
1 | ||
| 84315-20020 |
ST162..CP..GT W(TILT & TELESOPIC STEERING & CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12030 |
ST162..GT,ST |
1 | ||
| 84329-20060 |
ST162..GT,ST |
1 | ||
| 84329-20020 |
ST162..CP..GT W(TILT & TELESCOPIC STEERING) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-2017005 |
ST162..CP,LB DARK BEIGE,TRIM4# |
1 | ||
| 84332-2017002 |
ST16#..CP,LB RED,TRIM3# |
1 | ||
| 84332-2017001 |
ST16# BLACK,TRIM2# |
1 | ||
| 84332-2017004 |
ST16#..CP,LB DEEP BLUE,TRIM8# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14060 |
ST16# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2B430 |
ST162..(CP,LB)..GT W(TILT & TELESOPIC STEERING & CRUISE CONTROL),TOKAIRIKA |
1 | ||
| 84652-2B420 |
ST162..GT W(CRUISE CONTROL),TOKAIRIKA |
1 | ||
| 84652-2B570 |
ST162..(CP,LB)..GT W(TILT & TELESOPIC STEERING),MATSUSHITA |
1 | ||
| 84652-2B560 |
ST162..GT,ST MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20100 |
ST162..ST |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20160 |
ST162..ST |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-2017002 |
ST162..(CP,LB)..(GT,ST)..USA RED,TRIM3# |
1 | ||
| 84790-2018101 |
ST162..(CP,LB)..(GT,ST)..USA HEAVY DUTY,BLACK,TRIM2# |
1 | ||
| 84790-2017005 |
ST162..(CP,LB)..(GT,ST)..USA DARK BEIGE,TRIM4# |
1 | ||
| 84790-2017001 |
ST162..(CP,LB)..(GT,ST)..USA BLACK,TRIM2# |
1 | ||
| 84790-2018104 |
ST162..(CP,LB)..(GT,ST)..USA BLUE,TRIM8# |
1 | ||
| 84790-2017004 |
ST162..(CP,LB)..(GT,ST)..USA DEEP BLUE,TRIM8# |
1 | ||
| 84790-2018105 |
ST162..(CP,LB)..(GT,ST)..USA BEIGE,TRIM4# |
1 | ||
| 84790-2018102 |
ST162..(CP,LB)..(GT,ST)..USA HEAVY DUTY,RED,TRIM3# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20210 |
ST16# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
ST16# 14V 1.4W |
2 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
ST16# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
ST16# |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

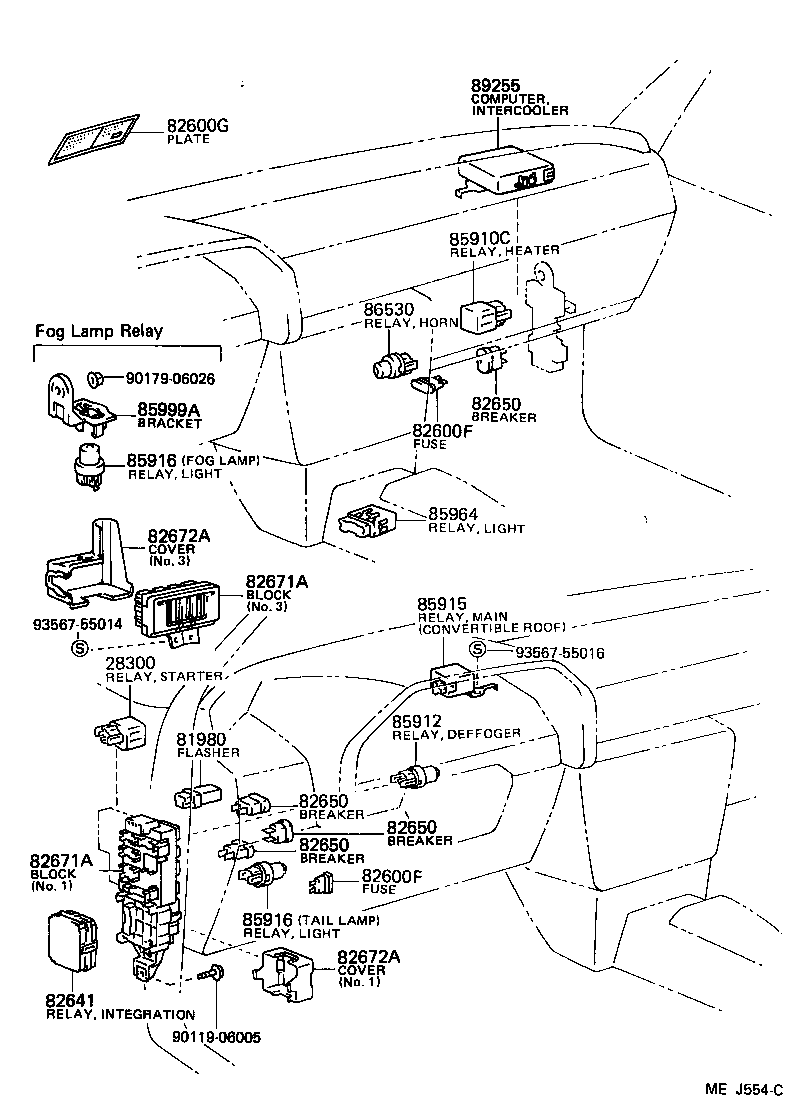

ILLUST NO. 3 OF 5(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
3SFE,3SG#..ST16#..5F |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
ST16# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
ST16# 10A |
1 | ||
| 90982-09004 |
ST16# 20A,YELLOW |
2 | ||
| 90982-09002 |
ST16# 10A |
3 | ||
| 90982-09003 |
ST16# 15A |
5 | ||
| 90982-09005 |
ST16# 7.5A |
1 | ||
| 90982-09004 |
ST16# 20A,YELLOW |
1 | ||
| 90982-07011 |
ST16# 30A,GREEN |
2 | ||
| 90982-09005 |
ST16# 7.5A |
2 | ||
| 90982-09003 |
ST16# 15A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
ST16# 10A |
1 | ||
| 90982-09004 |
ST16# 20A,YELLOW |
2 | ||
| 90982-09002 |
ST16# 10A |
3 | ||
| 90982-09003 |
ST16# 15A |
5 | ||
| 90982-09005 |
ST16# 7.5A |
1 | ||
| 90982-09004 |
ST16# 20A,YELLOW |
1 | ||
| 90982-07011 |
ST16# 30A,GREEN |
2 | ||
| 90982-09005 |
ST16# 7.5A |
2 | ||
| 90982-09003 |
ST16# 15A |
2 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-20020 |
ST162 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-20030 |
ST16# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
ST162..(CP,LB)..(GT,ST) 30A |
1 | ||
| 82650-20011 |
ST162..CP..GT 30A |
3 | ||
| 82650-20011 |
ST16# 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
ST162..(CP,LB)..(GT,ST) 30A |
1 | ||
| 82650-20011 |
ST162..CP..GT 30A |
3 | ||
| 82650-20011 |
ST16# 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
ST162..(CP,LB)..(GT,ST) 30A |
1 | ||
| 82650-20011 |
ST162..CP..GT 30A |
3 | ||
| 82650-20011 |
ST16# 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
ST162..(CP,LB)..(GT,ST) 30A |
1 | ||
| 82650-20011 |
ST162..CP..GT 30A |
3 | ||
| 82650-20011 |
ST16# 30A |
2 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20030 |
ST16# NO.1 |
1 | ||
| 82671-20050 |
ST16# NO.3 |
1 | ||
| 82671-20080 |
ST16#..GT,ST,TBO4W,TBOAT NO.2 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20030 |
ST16# NO.1 |
1 | ||
| 82671-20050 |
ST16# NO.3 |
1 | ||
| 82671-20080 |
ST16#..GT,ST,TBO4W,TBOAT NO.2 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20270 |
ST16# NO.1 |
1 | ||
| 82672-20121 |
ST16#..GT,ST,TBO4W,TBOAT NO.2,UPR |
1 | ||
| 82672-20110 |
ST16#..GT,ST,TBO4W,TBOAT NO.2,LWR |
1 | ||
| 82672-20080 |
ST16# NO.3 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20270 |
ST16# NO.1 |
1 | ||
| 82672-20121 |
ST16#..GT,ST,TBO4W,TBOAT NO.2,UPR |
1 | ||
| 82672-20110 |
ST16#..GT,ST,TBO4W,TBOAT NO.2,LWR |
1 | ||
| 82672-20080 |
ST16# NO.3 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
ST16# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
ST16#..CP,LB MARUKO |
1 | ||
| 90987-02004 |
ST16#..CP,LB DENSO |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
ST16# IGNITION MAIN |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
ST16# MARUKO,TAIL LAMP |
1 | ||
| 90987-02004 |
ST16# DENSO,TAIL LAMP |
1 | ||
| 90987-02006 |
ST16# HEADLAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
ST16# MARUKO,TAIL LAMP |
1 | ||
| 90987-02004 |
ST16# DENSO,TAIL LAMP |
1 | ||
| 90987-02006 |
ST16# HEADLAMP |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-20012 |
ST16# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
ST16# DENSO |
1 | ||
| 90987-02002 |
ST16# MARUKO |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-06026 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
ILLUST NO. 4 OF 5(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80022 |
ST162 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80022 |
ST162 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ST16# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ST16# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20120 |
ST16# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20110 |
ST162..CP..(GT,GTS) |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
ST16# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22100 |
ST16#..GT,GTS,TBO4W,TBOAT W(CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84340-30030 |
ST16# MATSUSHITA |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-12010 |
ST16#..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16010 |
ST16# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-32120 |
ST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||
ILLUST NO. 5 OF 5(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-20020 |
ST16#..CP,LB |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20080 |
ST162..GT,GTS |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20200 |
ST162..(CP,LB)..(GT,GTS) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-20020 |
ST162..GT,GTS |
2 | ||
| 84930-20020 |
ST162..(CP,LB)..(GT,GTS) |
2 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-20020 |
ST162..GT,GTS |
2 | ||
| 84930-20020 |
ST162..(CP,LB)..(GT,GTS) |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20071 |
ST162..GT,GTS |
2 | ||
| 84931-20071 |
ST162..(CP,LB)..(GT,GTS) |
2 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20020 |
ST16#..CP,LB |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20060 |
ST162..GT,GTS |
1 | ||
| 85980-20060 |
ST162..(CP,LB)..(GT,GTS) |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90168-40025 | ||||
| 90189-06018 | ||||
| 90463-12570 | ||||
| 93315-14008 | ||||
| Linked diagrams | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
