ST162L-BCMSKA (1986)

Toyota Celica

Production Aug 1986 - Aug 1987
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3SFE..5F

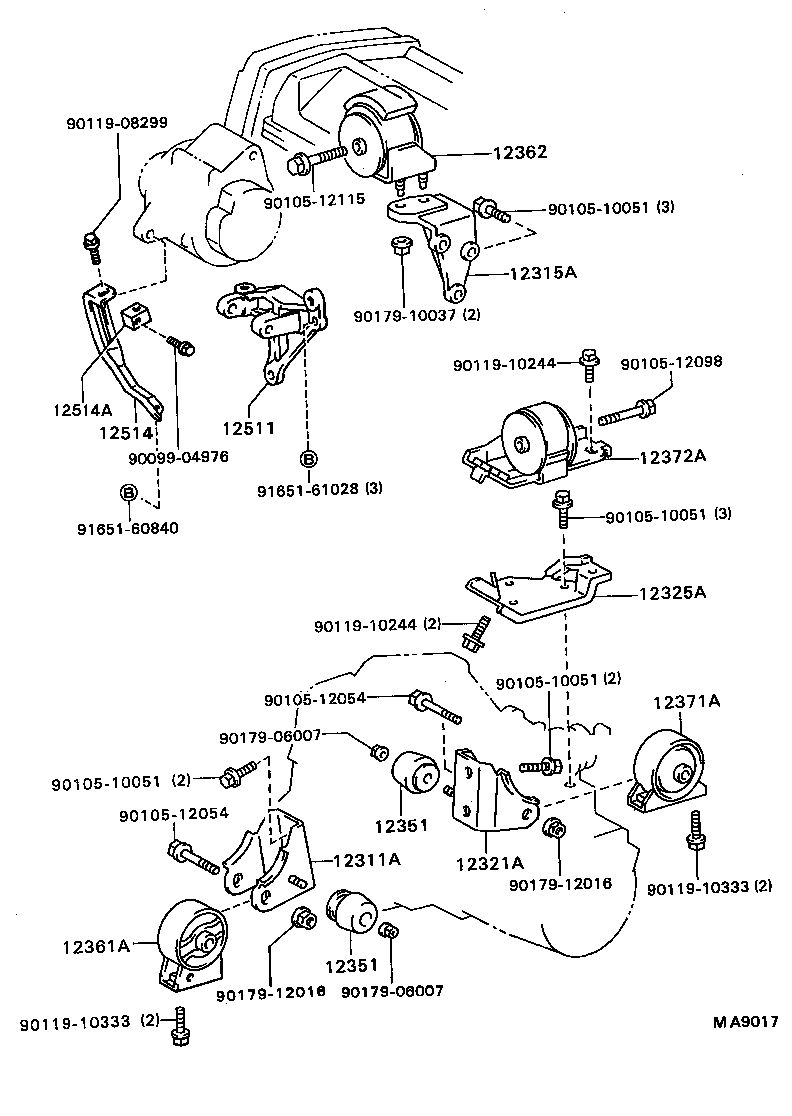

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12351 12351 12361A 12362 12371A 12372A 12511 12514 12514A 9009904976 9010510051 9010510051 9010510051 9010510051 9010512054 9010512054 9010512098 9010512115 9011908299 9011910244 9011910244 9011910333 9011910333 9017906007 9017906007 9017910037 9017912016 9017912016 9165160840 9165161028
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74010

2SELC,3S#..ST16#..5F

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74010

2SELC,3S#..ST16#..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74010

2SELC,3S#..ST16#..5F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-74010

2SELC,3S#..ST16#..5F

 2
12351 - DAMPER, ENGINE MOUNTING
12351-74010

2SELC,3S#..ST16#..5F

 2
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74010

2SELC,3S#..ST16#..5F

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-74050

3S#..ST162

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74020

2SELC,3S#..ST16#..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74010

2SELC,3S#..ST16#..5F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-74020

3SFE..ST162

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-74010

3SFE..ST162

 1
12514A - SLIDER, FAN BELT ADJUSTING
16385-64011

2SELC,3SFE..ST16#

W/COOLER

 1
Common parts
90099-04976
90105-10051
90105-12054
90105-12098
90105-12115
90119-08299
90119-10244
90119-10333
90179-06007
90179-10037
90179-12016
91651-60840
91651-61028
