ST161L-BLPVEK (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

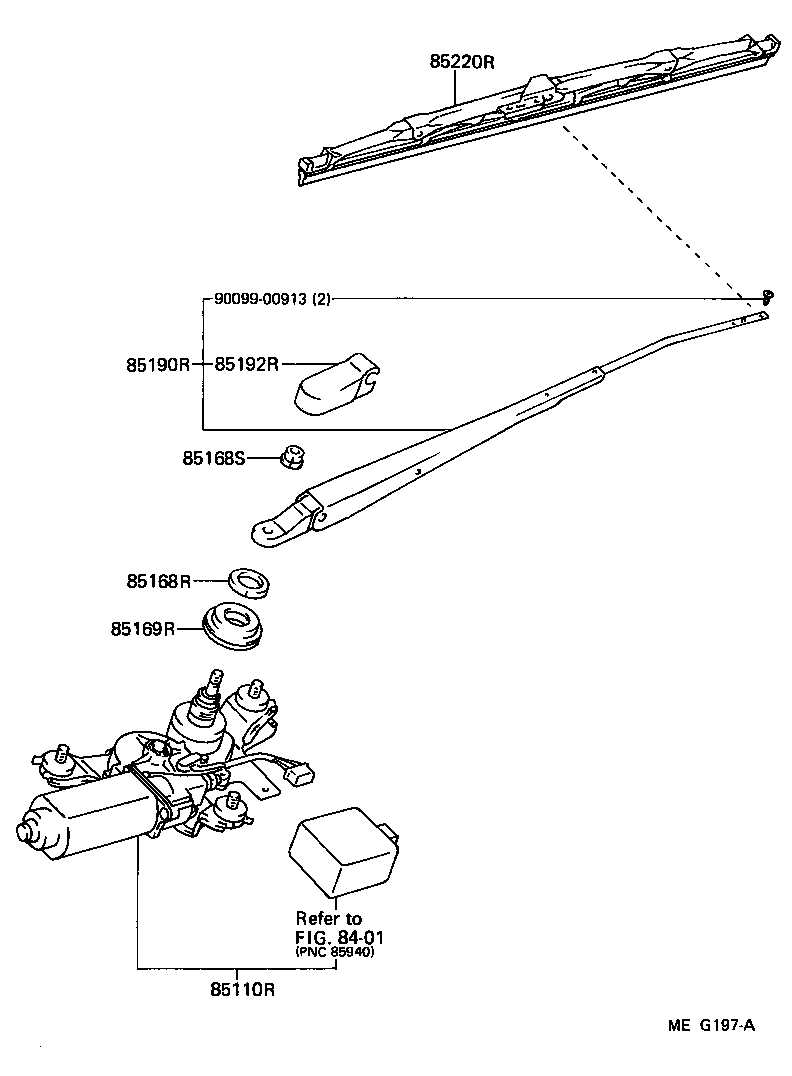

Click highlighted areas on diagram

diagram 8401 85110R 85168R 85168S 85169R 85190R 85192R 85220R 9009900913
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85110-20290

ST16#..LB

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

ST16#..LB

 1
85168S - NUT, REAR WIPER LINK PIVOT, NO.2
90179-06158

ST16#..LB

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-20280

ST16#..LB

 1
85190R - ARM ASSY, REAR WIPER
85190-20450

ST16#..LB

 1
85192R - COVER, REAR WIPER ARM
85192-32010

ST16#..LB

 1
85220R - BLADE ASSY, REAR WIPER
85220-14340

ST16#..LB

 1
Common parts
90099-00913
Linked diagrams
8401
