ST161L-BLPVEK (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

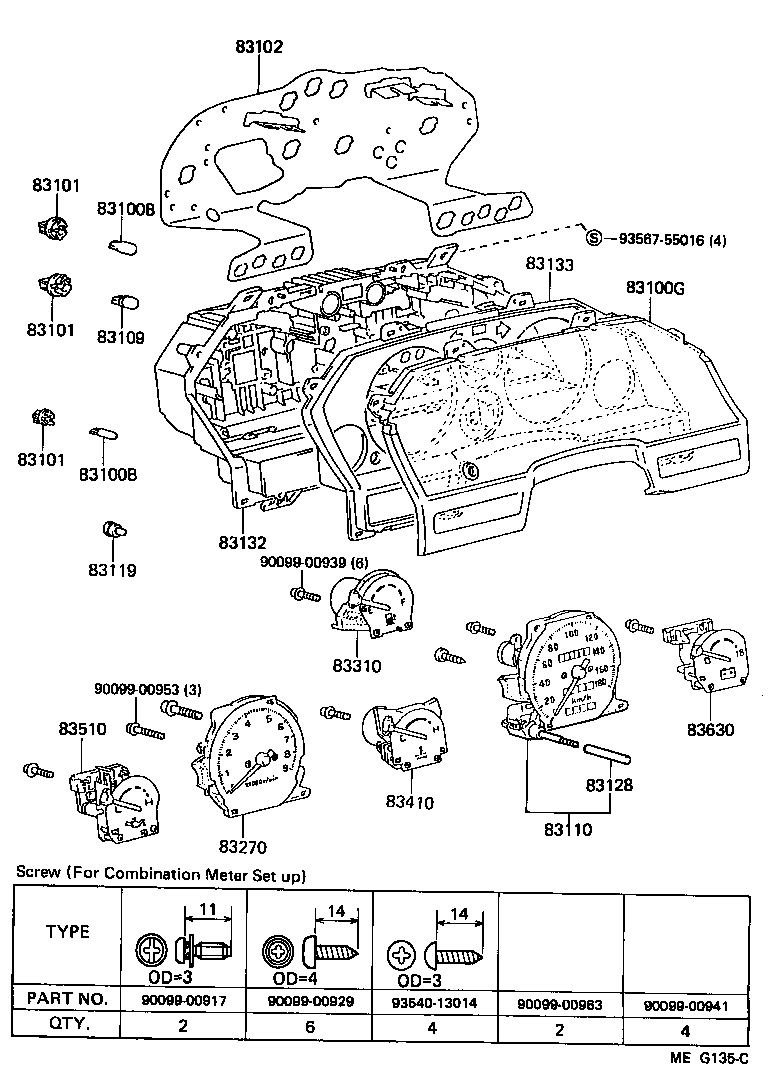

Click highlighted areas on diagram

diagram 83100B 83100B 83100G 83101 83101 83101 83102 83109 83110 83119 83128 83132 83133 83270 83310 83410 83510 83630 9009900917 9009900929 9009900939 9009900941 9009900953 9009900963 9354013014 9356755016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

ST16#

12V 3.4W,12V 3.4W

 4
90981-11018

ST16#

12V 1.2W W/O SOCKET,12V 1.4W

 12
83100B - BULB, COMBINATION METER, NO.1
99132-12034

ST16#

12V 3.4W,12V 3.4W

 4
90981-11018

ST16#

12V 1.2W W/O SOCKET,12V 1.4W

 12
83100G - GLASS, COMBINATION METER
83138-1B150

ST16#

 1
83138-1B070

ST16#..(CP,LB)..GT

W/*DS

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12020

ST16#..(CP,LB)..GT

BULB;12V 3.4W,W/*DS

 1
83101-14040

ST16#

BULB;12V 1.4W

 12
83101-14030

ST16#

BULB;12V 3.4W

 8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12020

ST16#..(CP,LB)..GT

BULB;12V 3.4W,W/*DS

 1
83101-14040

ST16#

BULB;12V 1.4W

 12
83101-14030

ST16#

BULB;12V 3.4W

 8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12020

ST16#..(CP,LB)..GT

BULB;12V 3.4W,W/*DS

 1
83101-14040

ST16#

BULB;12V 1.4W

 12
83101-14030

ST16#

BULB;12V 3.4W

 8
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1D810

ST16#..(CP,LB)..GT

W/*DS

 1
83247-1J150

ST16#..(CP,LB)..GT

 1
83247-1J130

ST16#..ST

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24040

ST16#..(CP,LB)..GT

12V1.4W W(GREEN CAP),12V 1.4W,W/GREEN CAP

 2
83109-24020

ST16#

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

 4
83110 - SPEEDOMETER ASSY
83110-2B450

ST16#..GT..CND

 1
83128 - KNOB, TRIP COUNTER
83128-14670

ST16#

 1
83128-14610

ST16#..(CP,LB)..GT

W/*DS

 1
83132 - CASE, COMBINATION METER
83132-1J190

ST16#..(CP,LB)..GT

 1
83132-1D870

ST16#..(CP,LB)..GT

W/*DS

 1
83132-1J170

ST16#..ST

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-1B310

ST16#..(CP,LB)..GT

W/*DS

 1
83133-1B490

ST16#

 1
83270 - TACHOMETER ASSY, ENGINE
83242-1B190

ST16#..GT..CND

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-14730

ST16#

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-1B110

ST16#

 1
83510 - GAGE ASSY, OIL PRESSURE RECEIVER
83246-14650

ST16#

 1
83630 - VOLTMETER ASSY
83251-14630

ST16#

 1
Common parts
90099-00917
90099-00929
90099-00939
90099-00941
90099-00953
90099-00963
93540-13014
93567-55016

(8508- )

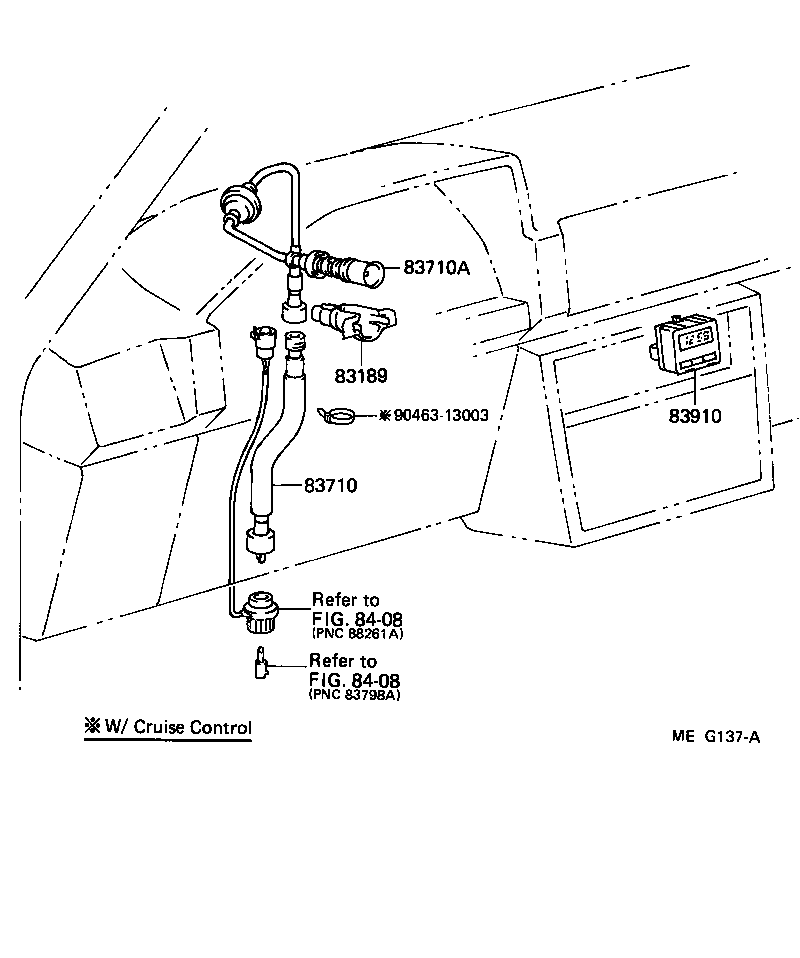

Click highlighted areas on diagram

diagram 83189 83710 83710A 83910 8408 8408 9046313003
Part # Description Qty Price
83189 - BRACKET, METER
83189-20020

ST16#

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-20510

ST16#

 1
83710-20590

ST16#..GT,GTS

W/CRUISE CONTROL

 1
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-20530

ST16#

 1
83910 - CLOCK ASSY
83910-20580

ST16#

 1
Common parts
90463-13003
Linked diagrams
8408

(8508- )

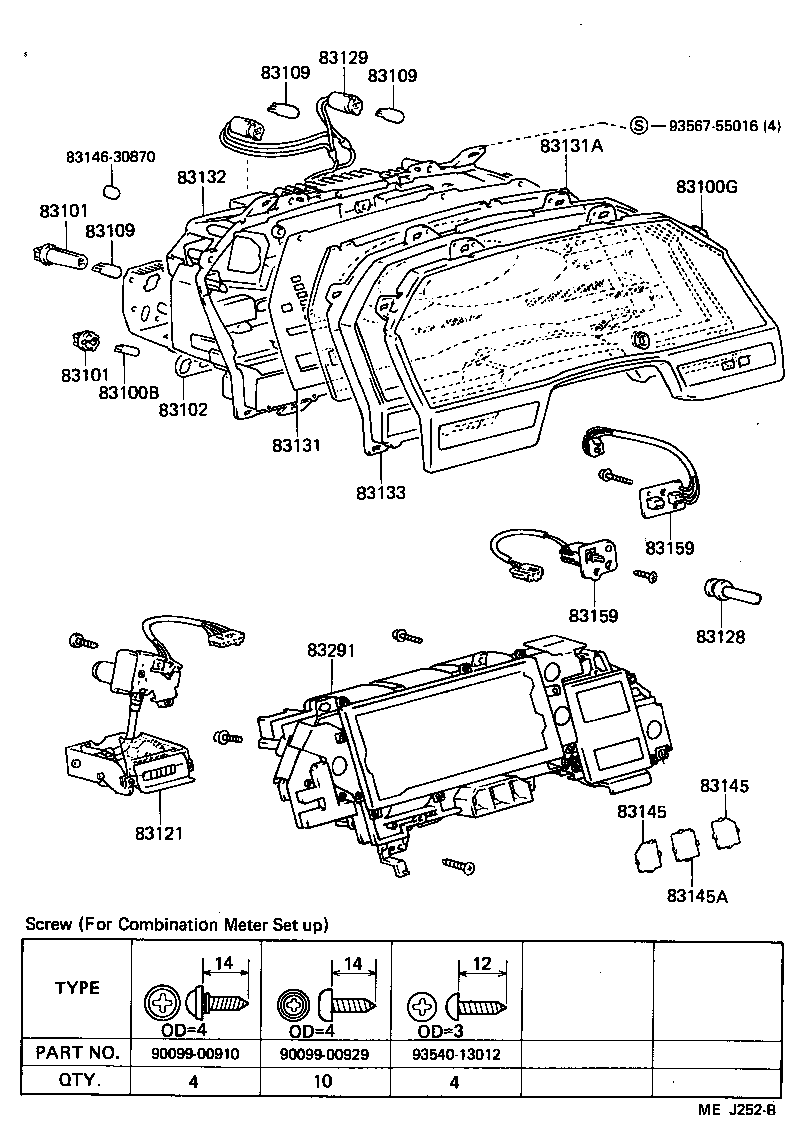

Click highlighted areas on diagram

diagram 83100B 83100G 83101 83101 83102 83109 83109 83109 83121 83128 83129 83131 83131A 83132 83133 83145 83145 83145A 8314630870 83159 83159 83291 9009900910 9009900929 9354013012 9356755016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

ST16#

12V 3.4W,12V 3.4W

 4
90981-11018

ST16#

12V 1.2W W/O SOCKET,12V 1.4W

 12
83100G - GLASS, COMBINATION METER
83138-1B150

ST16#

 1
83138-1B070

ST16#..(CP,LB)..GT

W/*DS

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12020

ST16#..(CP,LB)..GT

BULB;12V 3.4W,W/*DS

 1
83101-14040

ST16#

BULB;12V 1.4W

 12
83101-14030

ST16#

BULB;12V 3.4W

 8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12020

ST16#..(CP,LB)..GT

BULB;12V 3.4W,W/*DS

 1
83101-14040

ST16#

BULB;12V 1.4W

 12
83101-14030

ST16#

BULB;12V 3.4W

 8
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1D810

ST16#..(CP,LB)..GT

W/*DS

 1
83247-1J150

ST16#..(CP,LB)..GT

 1
83247-1J130

ST16#..ST

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24040

ST16#..(CP,LB)..GT

12V1.4W W(GREEN CAP),12V 1.4W,W/GREEN CAP

 2
83109-24020

ST16#

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

 4
83109 - BULB, COMBINATION METER, NO.2
83109-24040

ST16#..(CP,LB)..GT

12V1.4W W(GREEN CAP),12V 1.4W,W/GREEN CAP

 2
83109-24020

ST16#

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

 4
83109 - BULB, COMBINATION METER, NO.2
83109-24040

ST16#..(CP,LB)..GT

12V1.4W W(GREEN CAP),12V 1.4W,W/GREEN CAP

 2
83109-24020

ST16#

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

 4
83121 - COUNTER, TOTAL
83121-14210

ST16#..GT..CND

 1
83128 - KNOB, TRIP COUNTER
83128-14670

ST16#

 1
83128-14610

ST16#..(CP,LB)..GT

W/*DS

 1
83129 - WIRE, METER
83129-14170

ST16#..(CP,LB)..GT

 1
83131 - DIAL, METER, NO.1
83131-1J390

ST16#..GT..CND

 1
83131A - DIAL, METER, NO.2
83131-1J210

ST16#..4FC..CND

 1
83132 - CASE, COMBINATION METER
83132-1J190

ST16#..(CP,LB)..GT

 1
83132-1D870

ST16#..(CP,LB)..GT

W/*DS

 1
83132-1J170

ST16#..ST

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-1B310

ST16#..(CP,LB)..GT

W/*DS

 1
83133-1B490

ST16#

 1
83145 - LENS, METER, NO.1
83145-14170

ST16#..(CP,LB)..GT

 2
83145 - LENS, METER, NO.1
83145-14170

ST16#..(CP,LB)..GT

 2
83145A - LENS, METER, NO.2
83145-14190

ST16#..(CP,LB)..GT

 1
83159 - SWITCH, METER, NO.1
83159-14150

ST16#..(CP,LB)..GT

TRIP

 1
83159-14130

ST16#..(CP,LB)..GT

MILE/KM

 1
83159 - SWITCH, METER, NO.1
83159-14150

ST16#..(CP,LB)..GT

TRIP

 1
83159-14130

ST16#..(CP,LB)..GT

MILE/KM

 1
83291 - COMPUTER, COMBINATION METER
83291-20100

ST16#..(CP,LB)..4FC..GT

 1
Common parts
83146-30870
90099-00910
90099-00929
93540-13012
93567-55016
