ST161L-BLPVEK (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

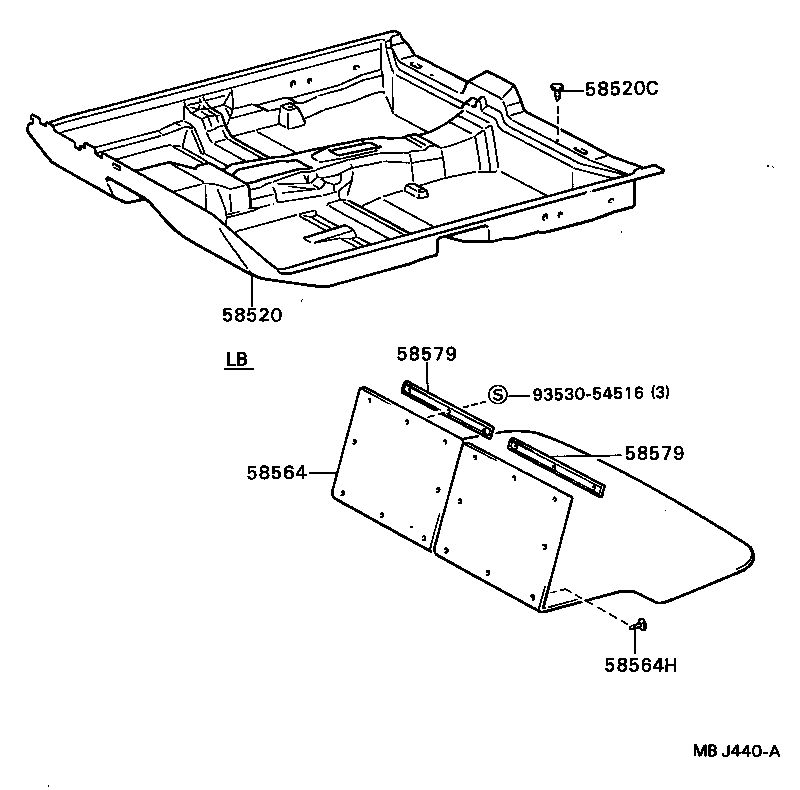

Click highlighted areas on diagram

diagram 58520 58520C 58564 58564H 58579 58579 9353054516
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-2B18003

ST16#..(CP,LB)..4FC

GRAY,SHADOW GRAY,TRIM1#

 1
58510-2B18002

ST16#..(CP,LB)..4FC

RED,RED,TRIM3#

 1
58510-2B18004

ST16#..(CP,LB)..4FC

BLUE,DEEP BLUE,TRIM8#

 1
58510-2B18006

ST16#..(CP,LB)..4FC

BROWN,BROWN,TRIM4#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0601652

ST16#..CP,LB

RED,RED,TRIM3#

 2
90467-0601633

ST16#

GRAY,GRAY,TRIM1#

 2
90467-0601620

ST16#..CP,LB

BLUE,DEEP BLUE,TRIM8#

 2
90467-0601625

ST16#..CP,LB

BEIGE,BEIGE,TRIM4#

 2
58564 - CARPET, REAR FLOOR
58570-2008004

ST16#..LB

BLUE,DEEP BLUE,TRIM8#

 1
58570-2008003

ST16#..LB

GRAY,SHADOW GRAY,TRIM1#

 1
58570-2008006

ST16#..LB

BROWN,BROWN,TRIM4#

 1
58570-2008002

ST16#..LB

RED,RED,TRIM3#

 1
58564H - CLIP(FOR REAR FLOOR CARPET)
90467-0601652

ST16#..LB

RED,RED,TRIM3#

 10
90467-0601620

ST16#..LB

BLUE,DEEP BLUE,TRIM8#

 10
90467-0601633

ST16#..LB

GRAY,GRAY,TRIM1#

 10
90467-0601625

ST16#..LB

BEIGE,BEIGE,TRIM4#

 10
58579 - SET PLATE, REAR FLOOR CARPET, NO.1
58583-2003006

ST16#..LB

BROWN,BROWN,TRIM4#

 2
58583-2003002

ST16#..LB

RED,RED,TRIM3#

 2
58583-2003003

ST16#..LB

GRAY,SHADOW GRAY,TRIM1#

 2
58583-2003004

ST16#..LB

BLUE,DEEP BLUE,TRIM8#

 2
58579 - SET PLATE, REAR FLOOR CARPET, NO.1
58583-2003006

ST16#..LB

BROWN,BROWN,TRIM4#

 2
58583-2003002

ST16#..LB

RED,RED,TRIM3#

 2
58583-2003003

ST16#..LB

GRAY,SHADOW GRAY,TRIM1#

 2
58583-2003004

ST16#..LB

BLUE,DEEP BLUE,TRIM8#

 2
Common parts
93530-54516
