ST161L-BLPVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LB

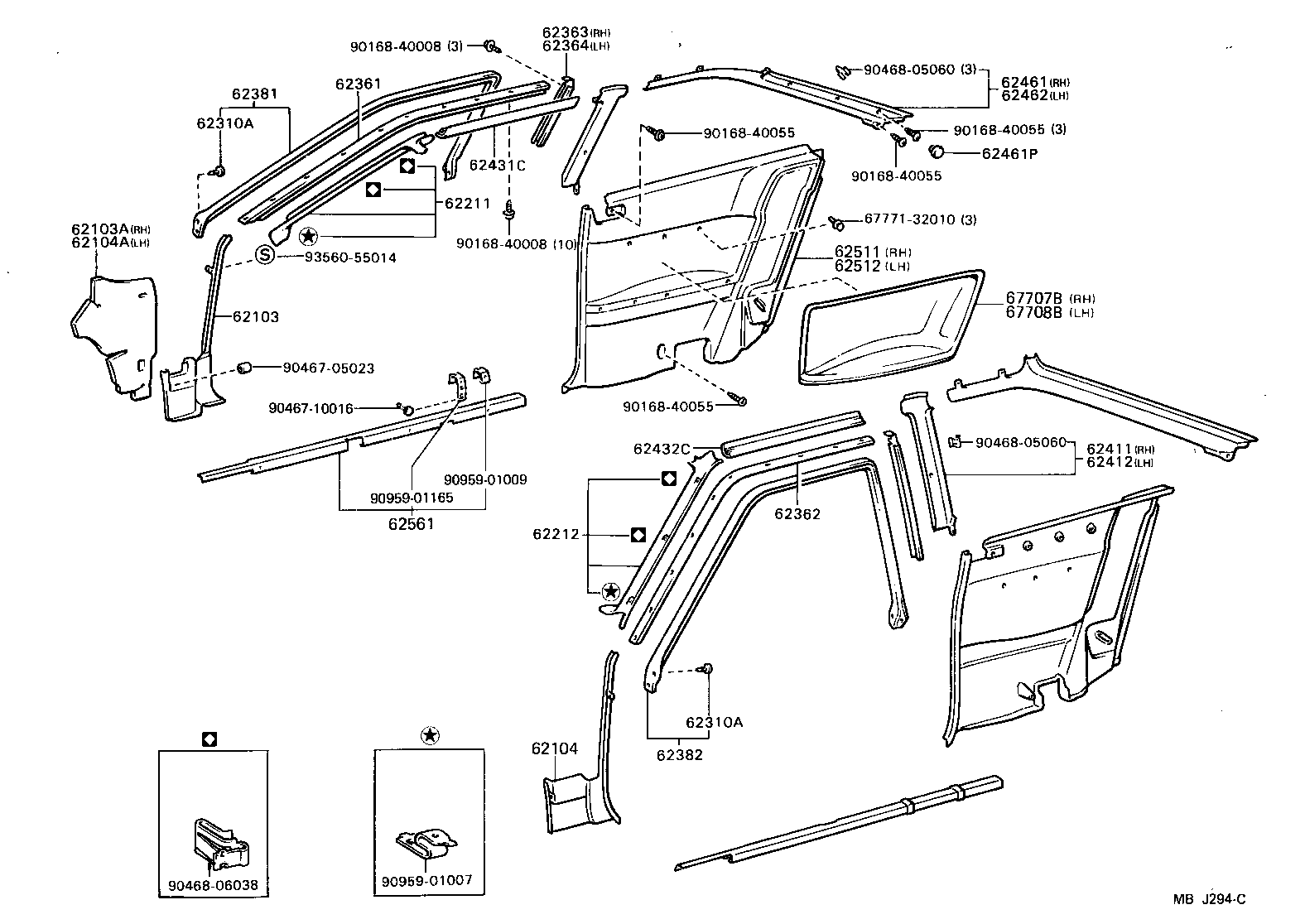

Click highlighted areas on diagram

diagram 62103 62103A 62104 62104A 62211 62212 62310A 62310A 62361 62362 62363 62364 62381 62382 62411 62412 62431C 62432C 62461 62461P 62462 62511 62512 62561 67707B 67708B 6777132010 9016840008 9016840008 9016840055 9016840055 9016840055 9016840055 9046705023 9046710016 9046805060 9046805060 9046806038 9095901007 9095901009 9095901165 9356055014
Part # Description Qty Price
62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH
62101-2016002

ST16#..CP,LB

RED,RED,TRIM3#

 1
62101-2016004

ST16#..CP,LB

BLUE,DEEP BLUE,TRIM8#

 1
62101-2016006

ST16#..CP,LB

BROWN,BROWN,TRIM4#

 1
62101-2016003

ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
62103A - INSULATOR SUB-ASSY, COWL SIDE, RH
62105-20090

ST16#

 1
62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH
62102-2013002

ST16#..CP,LB

RED,RED,TRIM3#

 1
62102-2013004

ST16#..CP,LB

BLUE,DEEP BLUE,TRIM8#

 1
62102-2013003

ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
62102-2013006

ST16#..CP,LB

BROWN,BROWN,TRIM4#

 1
62104A - INSULATOR SUB-ASSY, COWL SIDE, LH
62106-20090

ST16#

 1
62211 - GARNISH, FRONT PILLAR, RH
62210-2002002

ST16#..(CP,LB)..(GT,GTS)

RED,RED,TRIM3#

 1
62211-2014002

ST16#..ST

RED,RED,TRIM3#

 1
62211-2014004

ST16#..ST

BLUE,DEEP BLUE,TRIM8#

 1
62210-2002004

ST16#..(CP,LB)..(GT,GTS)

BLUE,DEEP BLUE,TRIM8#

 1
62211-2014003

ST16#..ST

GRAY,SHADOW GRAY,TRIM1#

 1
62210-2002003

ST16#..GT,GTS

GRAY,SHADOW GRAY,TRIM1#

 1
62211-2014006

ST16#..ST

BROWN,BROWN,TRIM4#

 1
62210-2002006

ST16#..(CP,LB)..(GT,GTS)

BROWN,BROWN,TRIM4#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-2014002

ST16#..ST

RED,RED,TRIM3#

 1
62212-2014003

ST16#..ST

GRAY,SHADOW GRAY,TRIM1#

 1
62212-2014004

ST16#..ST

BLUE,DEEP BLUE,TRIM8#

 1
62212-2014006

ST16#..ST

BROWN,BROWN,TRIM4#

 1
62220-2002003

ST16#..GT,GTS

GRAY,SHADOW GRAY,TRIM1#

 1
62220-2002004

ST16#..(CP,LB)..(GT,GTS)

BLUE,DEEP BLUE,TRIM8#

 1
62220-2002006

ST16#..(CP,LB)..(GT,GTS)

BROWN,BROWN,TRIM4#

 1
62220-2002002

ST16#..(CP,LB)..(GT,GTS)

RED,RED,TRIM3#

 1
62310A - CLIP, ROOF SIDE RAIL WEATHERSTRIP
67869-30020

ST16#

 8
62310A - CLIP, ROOF SIDE RAIL WEATHERSTRIP
67869-30020

ST16#

 8
62361 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH
62361-20030

ST16#

 1
62362 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH
62362-20030

ST16#

 1
62363 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH
62371-20040

ST16#

 1
62364 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH
62372-20030

ST16#

 1
62381 - WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
62381-20040

ST16#

 1
62382 - WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
62382-20040

ST16#

 1
62411 - GARNISH, CENTER PILLAR, RH
62411-2024004

ST16#..CP,LB

BLUE,DEEP BLUE,TRIM8#

 1
62411-2024006

ST16#..CP,LB

BROWN,BROWN,TRIM4#

 1
62411-2024002

ST16#..CP,LB

RED,RED,TRIM3#

 1
62411-2024003

ST16#..CP,LB

GRAY,SHADOW GRAY,TRIM1#

 1
62412 - GARNISH, CENTER PILLAR, LH
62412-2024003

ST16#..CP,LB

GRAY,SHADOW GRAY,TRIM1#

 1
62412-2024006

ST16#..CP,LB

BROWN,BROWN,TRIM4#

 1
62412-2024002

ST16#..CP,LB

RED,RED,TRIM3#

 1
62412-2024004

ST16#..CP,LB

BLUE,DEEP BLUE,TRIM8#

 1
62431C - GARNISH, ROOF SIDE RAIL, FRONT RH
62431-2003002

ST16#..CP,LB

RED,RED,TRIM3#

 1
62431-2003003

ST16#..CP,LB

GRAY,SHADOW GRAY,TRIM1#

 1
62431-2003004

ST16#..CP,LB

BLUE,DEEP BLUE,TRIM8#

 1
62431-2003006

ST16#..CP,LB

BROWN,BROWN,TRIM4#

 1
62432C - GARNISH, ROOF SIDE RAIL, FRONT LH
62431-2003003

ST16#..CP,LB

GRAY,SHADOW GRAY,TRIM1#

 1
62431-2003002

ST16#..CP,LB

RED,RED,TRIM3#

 1
62431-2003006

ST16#..CP,LB

BROWN,BROWN,TRIM4#

 1
62431-2003004

ST16#..CP,LB

BLUE,DEEP BLUE,TRIM8#

 1
62461 - GARNISH, ROOF SIDE TRIM, RH
62471-2023002

ST16#..LB

RED,RED,TRIM3#

 1
62471-2023003

ST16#..LB

GRAY,SHADOW GRAY,TRIM1#

 1
62471-2023006

ST16#..LB

BROWN,BROWN,TRIM4#

 1
62471-2023004

ST16#..LB

BLUE,DEEP BLUE,TRIM8#

 1
62461P - PLUG, HOLE (FOR ROOF SIDE INNER GARNISH)
90950-0150303

ST16#..LB

GRAY,SHADOW GRAY,TRIM1#

 6
90950-0150302

ST16#..LB

RED,RED,TRIM3#

 6
90950-0150304

ST16#..LB

BLUE,BLUE,TRIM8#

 6
90950-0150306

ST16#..LB

BROWN,BROWN,TRIM4#

 6
62462 - GARNISH, ROOF SIDE TRIM, LH
62472-2025004

ST16#..LB

BLUE,DEEP BLUE,TRIM8#

 1
62472-2025002

ST16#..LB

RED,RED,TRIM3#

 1
62472-2025003

ST16#..LB

GRAY,SHADOW GRAY,TRIM1#

 1
62472-2025006

ST16#..LB

BROWN,BROWN,TRIM4#

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62510-2024002

ST16#..ST

RED,RED,TRIM3#

 1
62510-2024003

ST16#..ST

GRAY,SHADOW GRAY,TRIM1#

 1
62511-2014004

ST16#..LB

BLUE,DEEP BLUE,TRIM8#

 1
62511-2014003

ST16#..LB

GRAY,SHADOW GRAY,TRIM1#

 1
62511-2014002

ST16#..LB

RED,RED,TRIM3#

 1
62510-2024006

ST16#..ST

BROWN,BROWN,TRIM4#

 1
62510-2024004

ST16#..ST

BLUE,DEEP BLUE,TRIM8#

 1
62511-2014006

ST16#..LB

BROWN,BROWN,TRIM4#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62512-2014003

ST16#..LB

GRAY,SHADOW GRAY,TRIM1#

 1
62512-2014002

ST16#..LB

RED,RED,TRIM3#

 1
62512-2014004

ST16#..LB

BLUE,DEEP BLUE,TRIM8#

 1
62520-2024003

ST16#..ST

GRAY,SHADOW GRAY,TRIM1#

 1
62520-2024004

ST16#..ST

BLUE,DEEP BLUE,TRIM8#

 1
62512-2014006

ST16#..LB

BROWN,BROWN,TRIM4#

 1
62520-2024002

ST16#..ST

RED,RED,TRIM3#

 1
62520-2024006

ST16#..ST

BROWN,BROWN,TRIM4#

 1
62561 - PROTECTOR, ROCKER PANEL, INNER FRONT
62562-20050

ST16#..CP,LB

LH

 1
62561-20070

ST16#..CP,LB

RH

 1
67707B - ORNAMENT SUB-ASSY, QUARTER TRIM, RH
67707-2005002

ST161..GT

RED,RED,TRIM3#

 1
67707-2005003

ST161..GT

GRAY,SHADOW GRAY,TRIM1#

 1
67707-2005004

ST161..GT

BLUE,DEEP BLUE,TRIM8#

 1
67707-2005006

ST161..GT

BROWN,BROWN,TRIM4#

 1
67708B - ORNAMENT SUB-ASSY, QUARTER TRIM, LH
67708-2005002

ST161..GT

RED,RED,TRIM3#

 1
67708-2005006

ST161..GT

BROWN,BROWN,TRIM4#

 1
67708-2005004

ST161..GT

BLUE,DEEP BLUE,TRIM8#

 1
67708-2005003

ST161..GT

GRAY,SHADOW GRAY,TRIM1#

 1
Common parts
67771-32010
90168-40008
90168-40055
90467-05023
90467-10016
90468-05060
90468-06038
90959-01007
90959-01009
90959-01165
93560-55014
