ST161L-BLPVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

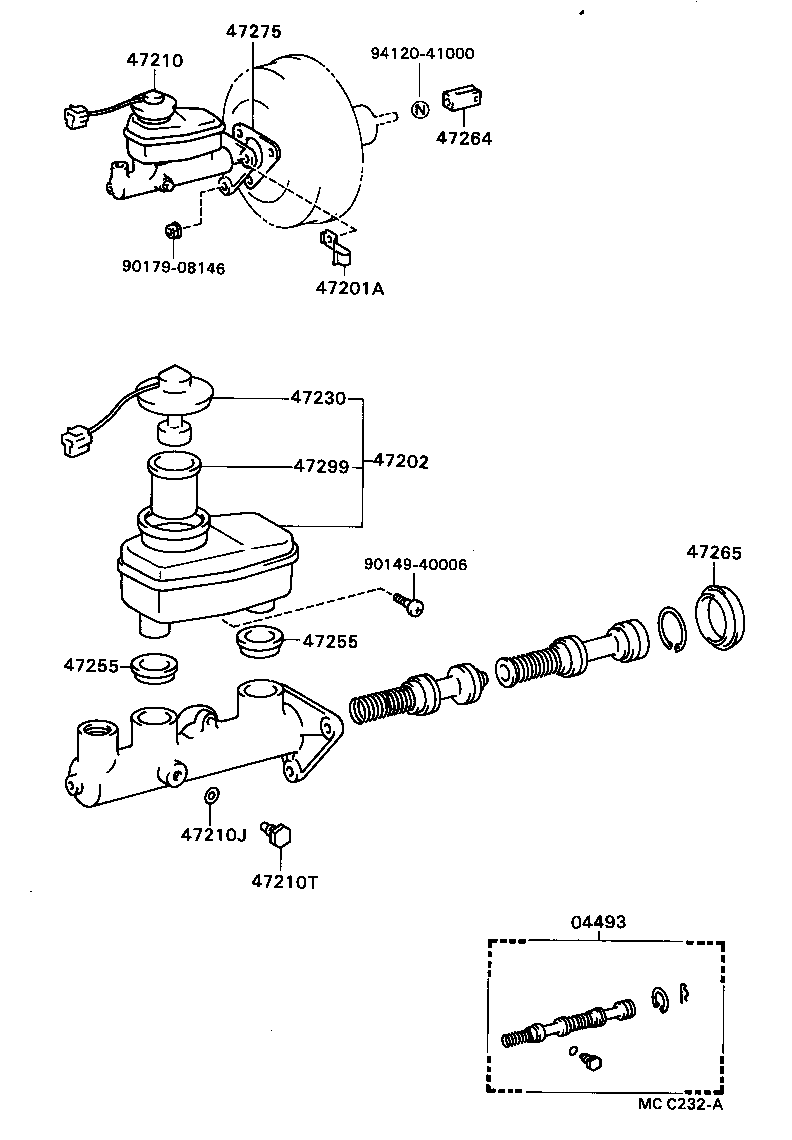

Click highlighted areas on diagram

diagram 04493 47201A 47202 47210 47210J 47210T 47230 47255 47255 47264 47265 47275 47299 9014940006 9017908146 9412041000
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-20130

ST16#

 1
47201A - CLAMP(FOR BRAKE MASTER CYLINDER)
90461-08202

ST16#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-20290

ST16#

 1
47210 - CYLINDER ASSY, MASTER, W/O BOOSTER
47201-20400

ST16#

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

ST16#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

ST16#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-12090

ST16#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-10010

ST16#

 4
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-10010

ST16#

 4
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-20040

ST16#

 2
47265 - BOOT, MASTER CYLINDER
47265-20050

ST16#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010

ST16#

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-32010

ST16#

 1
Common parts
90149-40006
90179-08146
94120-41000
