ST161L-BLMVEK (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

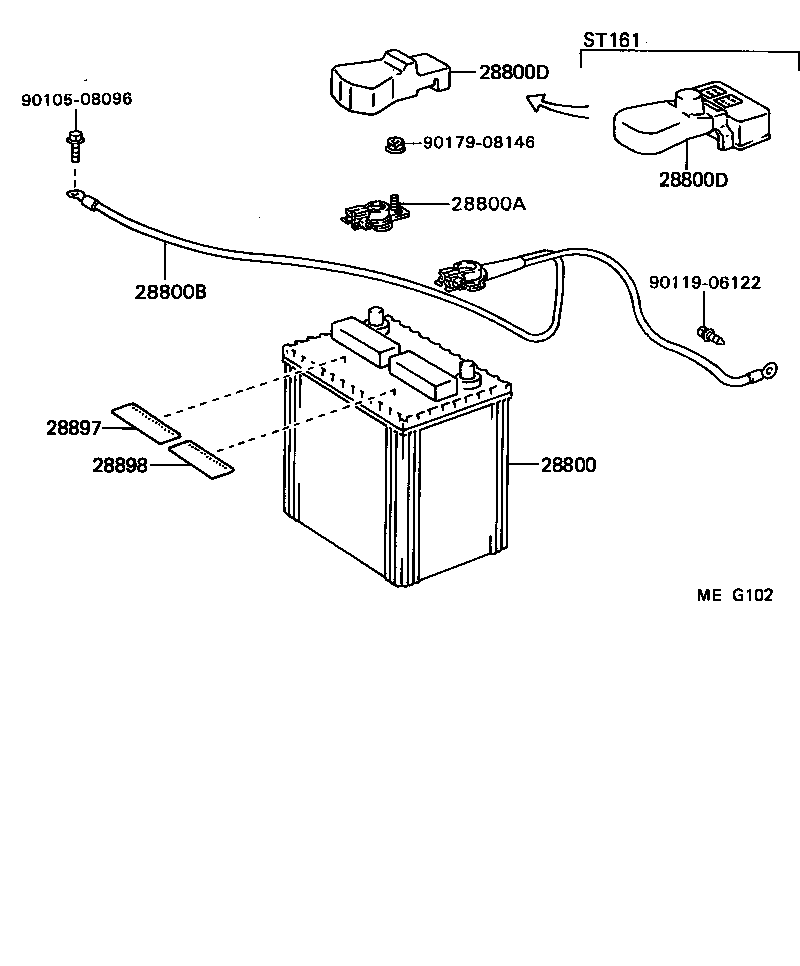

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800D 28800D 28897 28898 9010508096 9011906122 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-43220

2SELC,3S#..ST16#

55D23L,55D23L-MF

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

2SELC,3SGELC..ST16#

 1
28800B - CABLE, BATTERY TO GROUND
82123-20090

2SELC,3S#..ST16#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-20140

2SELC..ST161

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-20140

2SELC..ST161

 1
28897 - PLATE, BATTERY CAUTION
28897-38010

2SELC,3S#..ST16#..CND

 1
Common parts
90105-08096
90119-06122
90179-08146
