ST161L-BLMVEK (1985)
Toyota Celica
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-14040 |
ST16# |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 99132-13050 |
ST16# 12V 5W,12V 5W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-30100 |
ST16# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-2208002 |
ST161 RED,RED,TRIM3# |
1 | ||
| 81240-2208006 |
ST161 BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 81240-2208013 |
ST161 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 81240-2208004 |
ST161 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
ST16# 12V 10W,12V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-20060 |
ST16# |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-1403004 |
ST16#..LB BLUE,BLUE,TRIM8# |
1 | ||
| 81250-1403013 |
ST16#..LB GRAY,GRAY,TRIM1# |
1 | ||
| 81250-1403005 |
ST16#..LB BEIGE,BEIGE,TRIM4# |
1 | ||
| 81250-1403022 |
ST16#..LB RED,RED,TRIM3# |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-1403004 |
ST16#..LB BLUE,BLUE,TRIM8# |
1 | ||
| 81250-1403013 |
ST16#..LB GRAY,GRAY,TRIM1# |
1 | ||
| 81250-1403005 |
ST16#..LB BEIGE,BEIGE,TRIM4# |
1 | ||
| 81250-1403022 |
ST16#..LB RED,RED,TRIM3# |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
ST16#..CVT,LB 12V 5W,12V 5W |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
ST16#..CVT,LB 12V 5W,12V 5W |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81251-14030 |
ST16#..LB |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81251-14030 |
ST16#..LB |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-22070 |
ST16# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-2009002 |
ST16#..CP,LB RED,RED,TRIM3# |
1 | ||
| 81260-2009006 |
ST16#..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 81260-2009003 |
ST16#..CP,LB GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 81260-2009004 |
ST16#..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-2009002 |
ST16#..CP,LB RED,RED,TRIM3# |
1 | ||
| 81260-2009006 |
ST16#..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 81260-2009003 |
ST16#..CP,LB GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 81260-2009004 |
ST16#..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
ST16# 12V 1.2W W/O SOCKET |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
ST16#..CP,LB 12V 10W,12V 10W |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
ST16#..CP,LB 12V 10W,12V 10W |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-2009003 |
ST16#..CP,LB GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 81261-2009006 |
ST16#..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 81261-2009004 |
ST16#..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 81261-2009002 |
ST16#..CP,LB RED,RED,TRIM3# |
1 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-20011 |
ST16#..GT,GTS |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11018 |
ST16#..GT,GTS 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| Common parts | ||||
| 90164-45005 | ||||
| 90183-04004 | ||||
| 93315-14012 | ||||
| 93319-15016 | ||||
| 93510-44020 | ||||
| 93510-54020 | ||||
| 93510-64016 | ||||
| 93540-14016 | ||||
| 93540-24016 | ||||

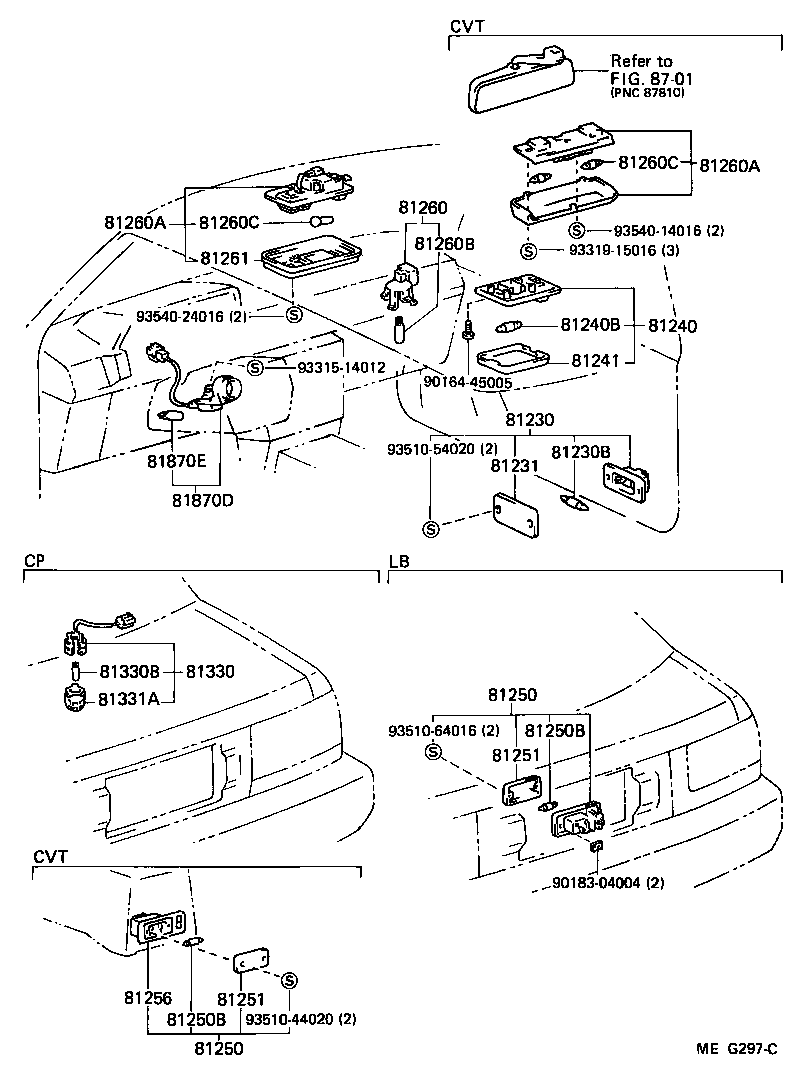

| Linked diagrams | ||||
| 8701 | ||||
