ST161L-BLMVEK (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1986
Engine
2SELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

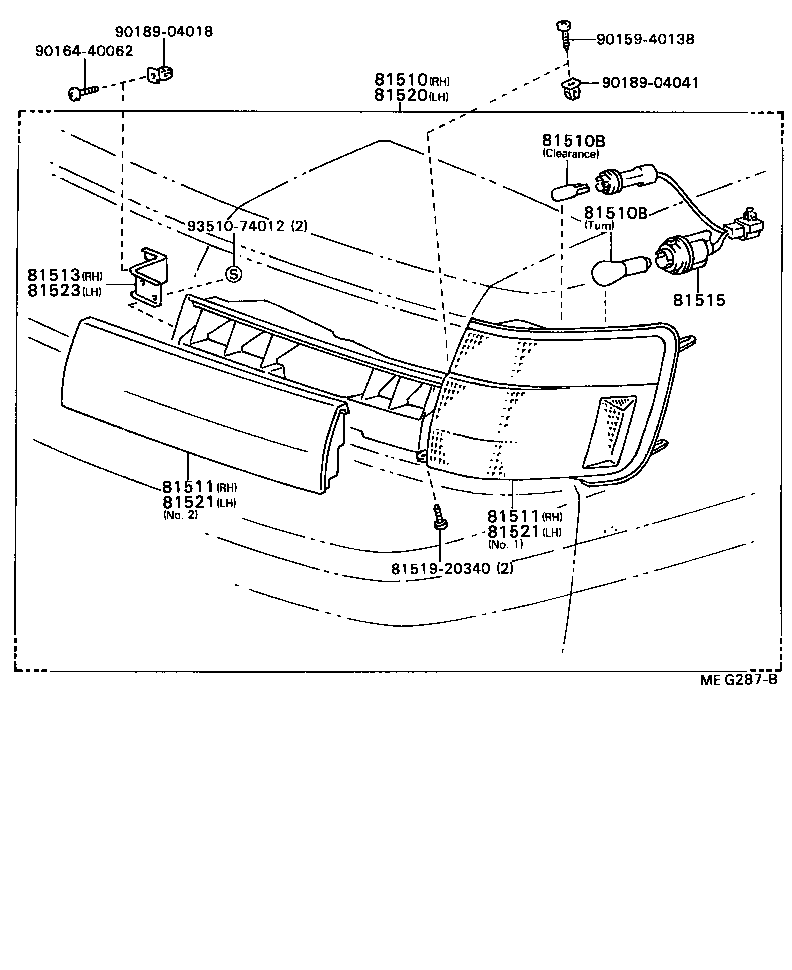

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-20370 |
ST16# |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11270 |
ST16# 12V 27W,12V 27W(TURN) |
2 | ||
| 99132-12050 |
ST16# 12V 5W,12V 5W(CLEARANCE) |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11270 |
ST16# 12V 27W,12V 27W(TURN) |
2 | ||
| 99132-12050 |
ST16# 12V 5W,12V 5W(CLEARANCE) |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81516-20340 |
ST16# NO.2 |
1 | ||
| 81511-20370 |
ST16# NO.1 |
1 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81516-20340 |
ST16# NO.2 |
1 | ||
| 81511-20370 |
ST16# NO.1 |
1 | ||
| 81513 - BRACKET, FRONT TURN SIGNAL LAMP, RH | ||||
| 81513-20340 |
ST16# |
1 | ||
| 81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY | ||||
| 81515-20370 |
ST16# |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-20370 |
ST16# |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81526-20340 |
ST16# NO.2 |
1 | ||
| 81521-20370 |
ST16# NO.1 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81526-20340 |
ST16# NO.2 |
1 | ||
| 81521-20370 |
ST16# NO.1 |
1 | ||
| 81523 - BRACKET, FRONT TURN SIGNAL LAMP, LH | ||||
| 81513-20340 |
ST16# |
1 | ||
| Common parts | ||||
| 81519-20340 | ||||
| 90159-40138 | ||||
| 90164-40062 | ||||
| 90189-04018 | ||||
| 90189-04041 | ||||
| 93510-74012 | ||||
