ST161L-BLMVEA (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1986
Engine
2SELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

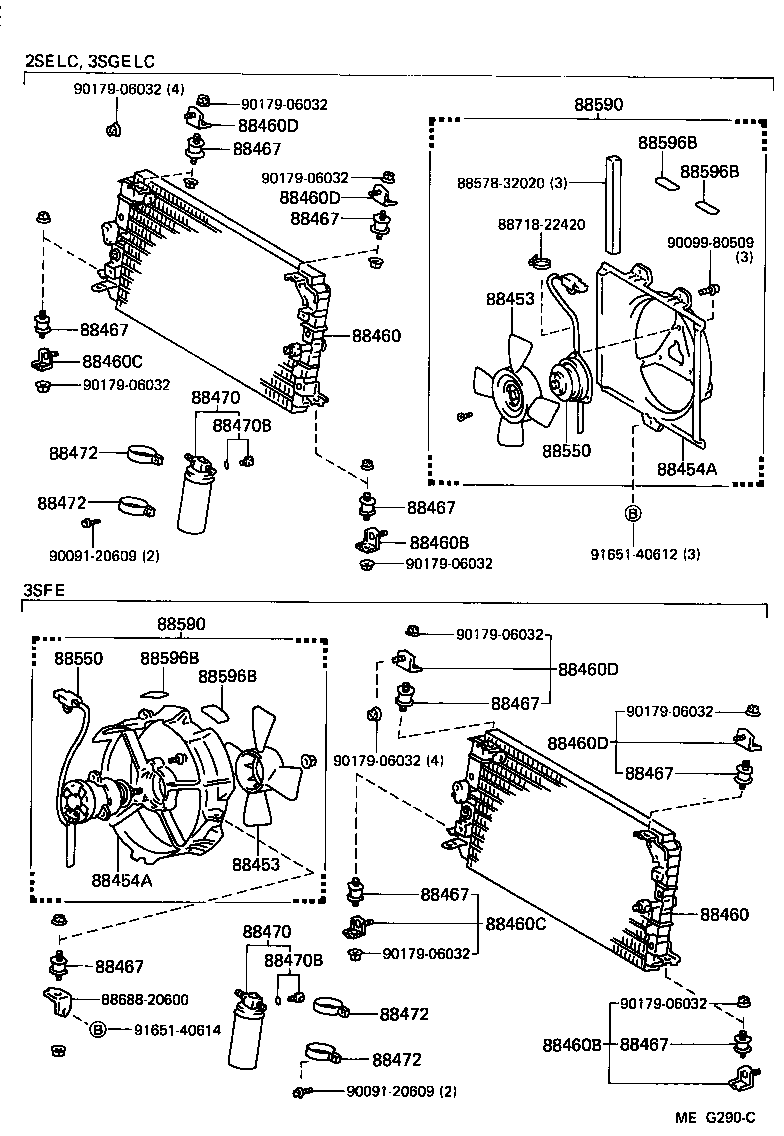

(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-32020 |
ST16# |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-32020 |
ST16# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-32030 |
ST16# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-32030 |
ST16# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20200 |
ST16# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20200 |
ST16# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-20650 |
ST16# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-20650 |
ST16# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-20660 |
ST16# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-20660 |
ST16# |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-20620 |
ST16# |
2 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-20620 |
ST16# |
2 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-20620 |
ST16# |
2 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-20620 |
ST16# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
ST16# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
ST16# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
ST16# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
ST16# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
ST16# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
ST16# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
ST16# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
ST16# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
ST16# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
ST16# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
ST16# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
ST16# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
ST16# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
ST16# |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
ST16# |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
ST16# |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
ST16# |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12090 |
ST16# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12090 |
ST16# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20090 |
ST161 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20090 |
ST161 |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12040 |
ST16# CAUTION |
1 | ||
| 88596-12010 |
ST16# AIR CONDITIONER CAUTION |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12040 |
ST16# CAUTION |
1 | ||
| 88596-12010 |
ST16# AIR CONDITIONER CAUTION |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12040 |
ST16# CAUTION |
1 | ||
| 88596-12010 |
ST16# AIR CONDITIONER CAUTION |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12040 |
ST16# CAUTION |
1 | ||
| 88596-12010 |
ST16# AIR CONDITIONER CAUTION |
1 | ||
| Common parts | ||||
| 88578-32020 | ||||
| 88688-20600 | ||||
| 88718-22420 | ||||
| 90091-20609 | ||||
| 90099-80509 | ||||
| 90179-06032 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||

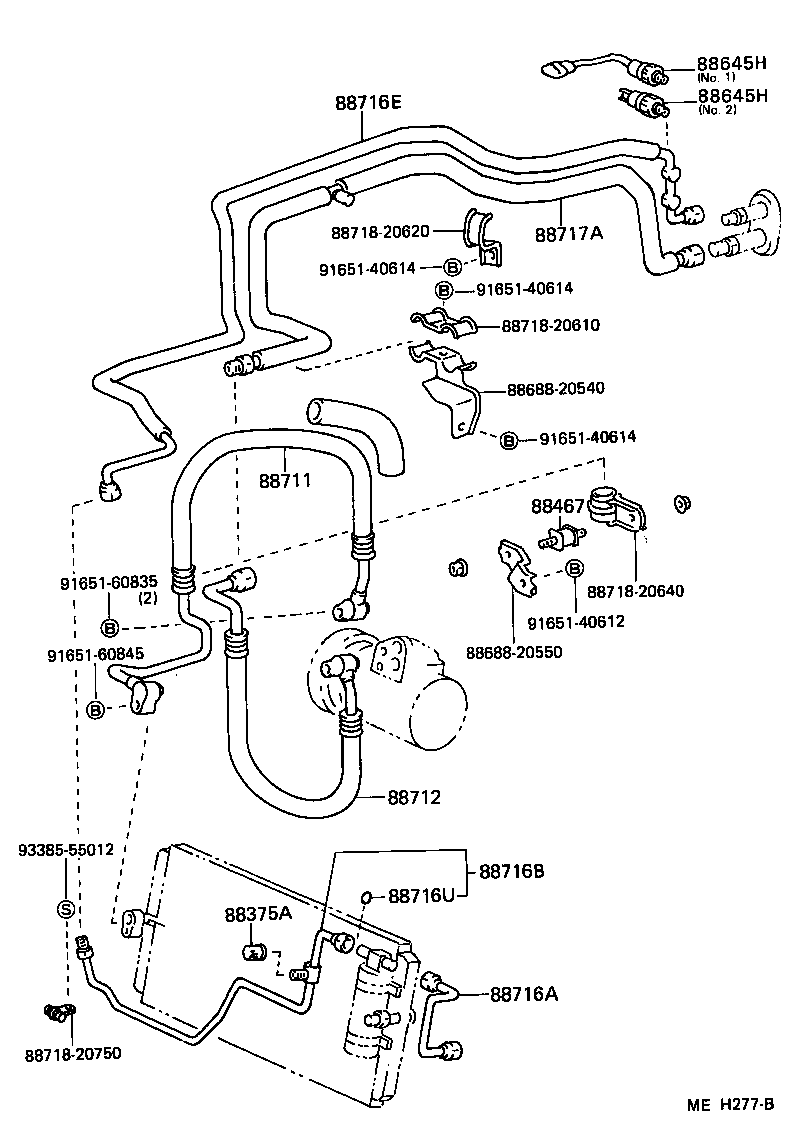

(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
ST16# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-14040 |
ST16# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
ST16# NO.1 |
1 | ||
| 88645-10020 |
ST16# NO.2 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
ST16# NO.1 |
1 | ||
| 88645-10020 |
ST16# NO.2 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20450 |
ST16# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-20570 |
ST16# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2B010 |
ST16# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-20890 |
ST16#..GT,ST |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2B030 |
ST16# |
1 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14044 |
ST16# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-20490 |
ST16# |
1 | ||
| Common parts | ||||
| 88688-20540 | ||||
| 88688-20550 | ||||
| 88718-20610 | ||||
| 88718-20620 | ||||
| 88718-20640 | ||||
| 88718-20750 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
| 93385-55012 | ||||
