ST161L-BLMVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

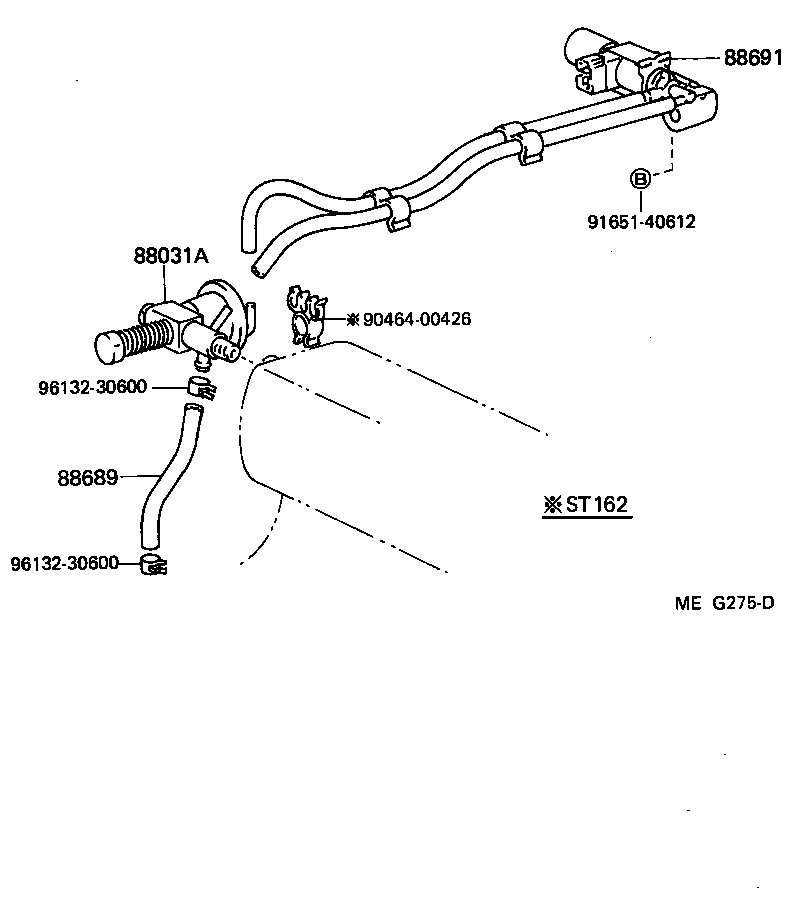

Click highlighted areas on diagram

diagram 88031A 88689 88691 9046400426 9165140612 9613230600 9613230600
Part # Description Qty Price
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-24020

ST16#

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-32030

ST161

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20650

ST161

 1
Common parts
90464-00426
91651-40612
96132-30600
